Holdrite SL1-2 Slider Bracket Kit 10-16 Inch Telescoping

Product Description

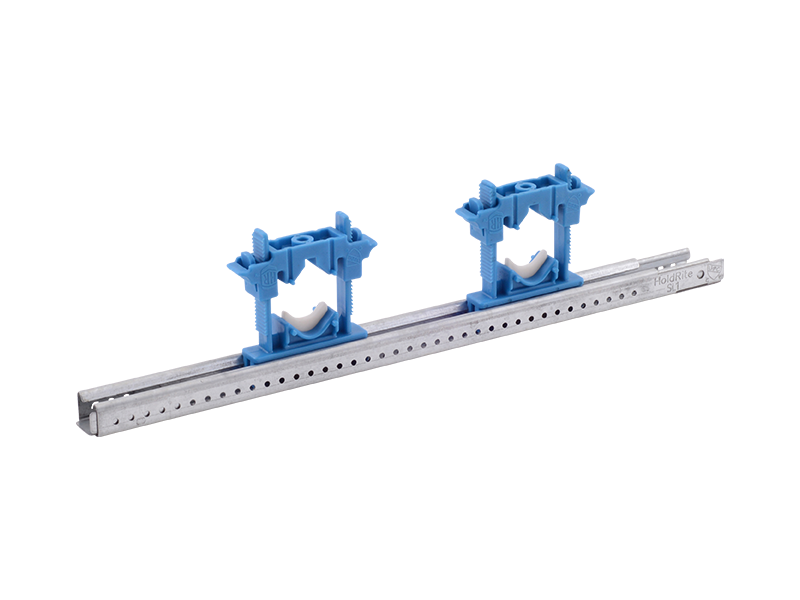

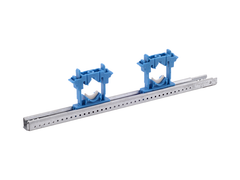

The HOLDRITE SL1-2 is a telescoping slider bracket kit designed to support tube stubs and stub-outs in residential and light commercial plumbing installations. The kit includes a galvanized steel telescoping bracket that adjusts from 10 inches to 16 inches in length, pre-loaded with two 253 variable closure clamps. The galvanized steel construction resists corrosion in wet environments. Bendable end tabs allow the bracket to attach securely between wall studs or floor joists. The bracket accepts 1/2 inch to 1 inch copper, PEX, or CPVC pipe, making it a versatile rough-in component for water supply and distribution work.

The SL1-2 is suited for residential new construction and retrofit plumbing where stub-outs and supply lines require secure mechanical support between framing members. It can be recessed into wall cavities or surface mounted depending on the installation layout. A hole pattern on three sides of the bracket provides mounting points compatible with a range of additional clamps and fittings, giving installers flexibility when working with mixed pipe materials or non-standard framing spacing.

Key Features

• Telescoping bracket adjusts from 10 inches to 16 inches to fit variable stud or joist spacing
• Pre-loaded with two 253 variable closure clamps for immediate use on the job
• Accepts 1/2 inch to 1 inch copper, PEX, and CPVC pipe
• Galvanized steel construction provides corrosion resistance in wet framing environments
• Bendable end tabs allow fast attachment between studs or joists without additional fasteners
• Three-sided hole pattern supports compatibility with additional clamps and fittings
• Recess or surface mount options for flexible installation

Compatibility

Compatible with 1/2 inch to 1 inch copper, PEX, and CPVC pipe. Designed as an OEM-style replacement and new-installation bracket for residential and light commercial plumbing stub-out support applications.

Installation Notes

Installation is performed by licensed plumbers during rough-in framing stages before wall or ceiling finishes are applied. Power and water supply to the affected lines should be shut off before securing any pipe support hardware. Bend end tabs to the appropriate angle to achieve flush contact against the framing member before fastening. Follow local plumbing codes, including applicable IPC requirements, for pipe support spacing and material requirements.

Technical Specifications

• Bracket Length Range: 10 inches to 16 inches
• Pipe Size Compatibility: 1/2 inch to 1 inch
• Pipe Material Compatibility: Copper, PEX, CPVC
• Included Clamps: 2 x 253 variable closure clamps
• Material: Galvanized Steel
• Mounting Type: Recess or surface mount
• UPC: 671119752748

Standard Information

• Brand: HOLDRITE
• Manufacturer Part Number: SL1-2
