Holdrite QFC-0124 24 X 1 X 1 In. FIP Water Heater Connector

Product Description

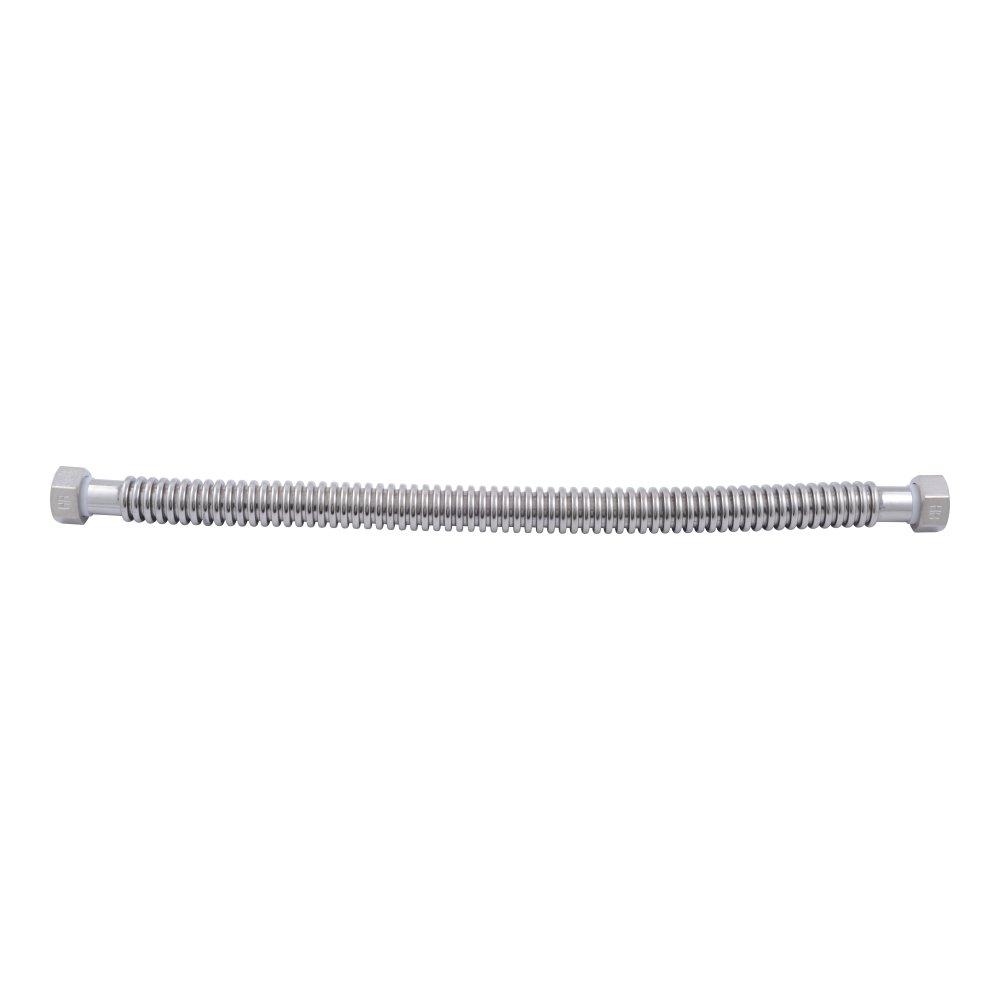

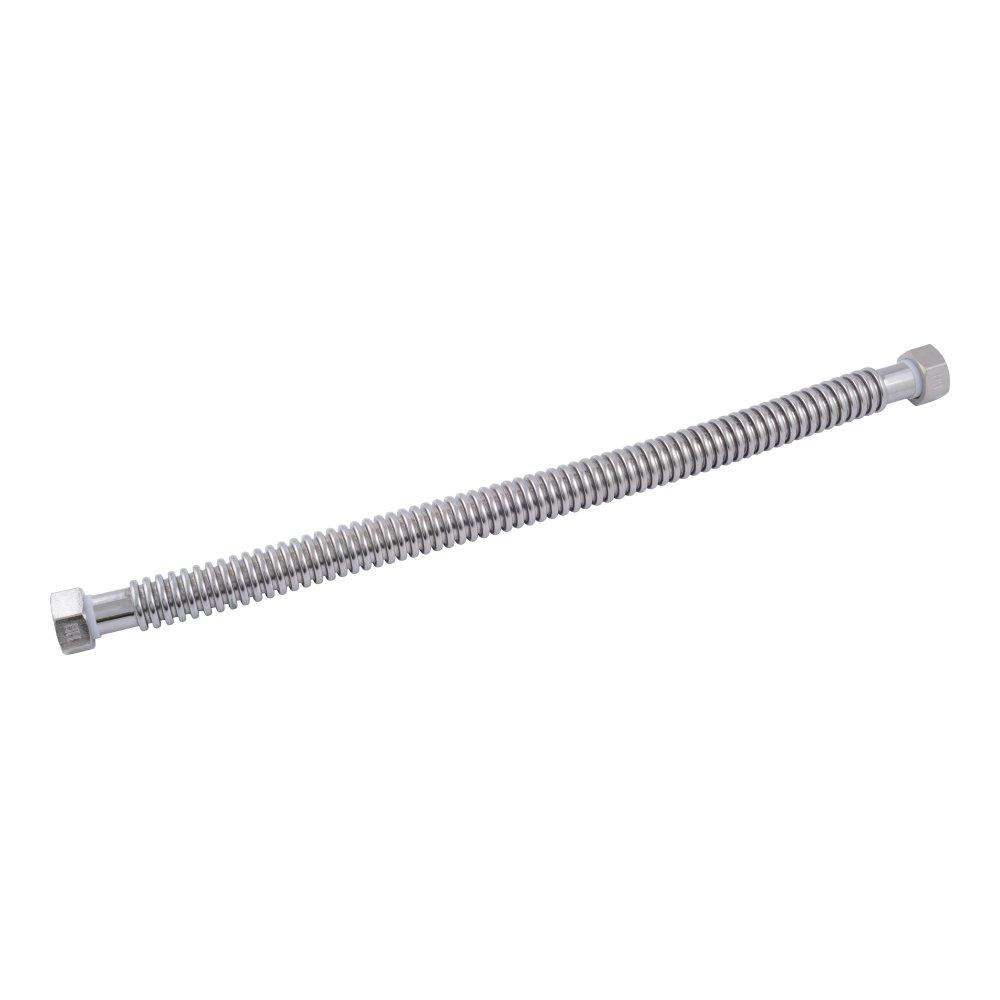

The Holdrite QFC-0124 is a stainless steel water heater connector designed for flexibility and high flow rates. It is rated for continuous pressure up to 125 PSI and can handle a maximum of 200 PSI. This connector has a temperature rating of up to 190 degrees and complies with various plumbing codes including UPC and IPC. Ideal for connecting water heaters to supply lines, the large inside diameter allows for efficient water flow and reduces the risk of kinking.

• Stainless steel construction for durability
• Temperature rated up to 190 degrees
• Suitable for high flow applications

Product Highlights

This connector is suitable for both water heaters and other equipment supplied by water. It is IAPMO listed and meets ASME A112.18.6 standards.

Product Information

Standard Information

• Brand: Holdrite
• MPN: QFC-0124

Technical Specifications

• Material: Stainless Steel
• Length: 24 inches

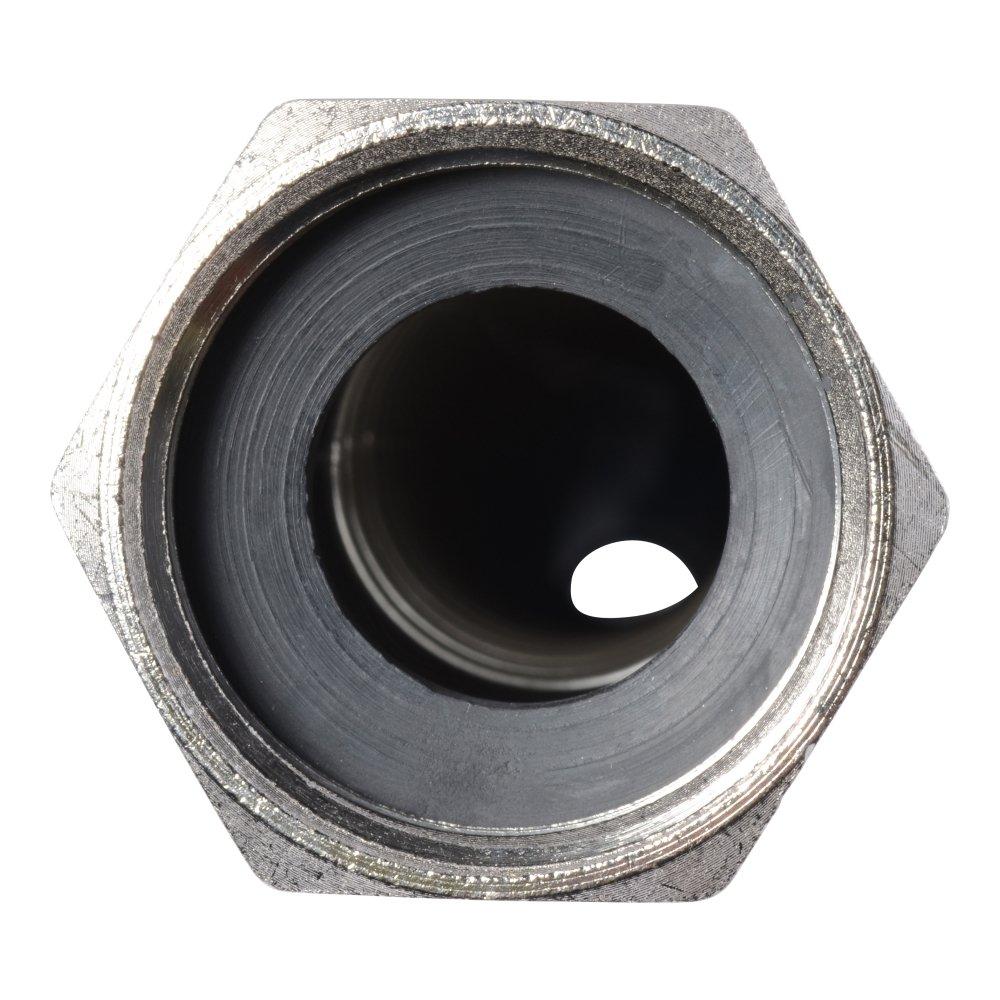

• Connection Type: FNPT x FNPT
• Weight: 0.63 lbs
• Overall Dimensions: 24.8 x 1.1 x 1 inches
