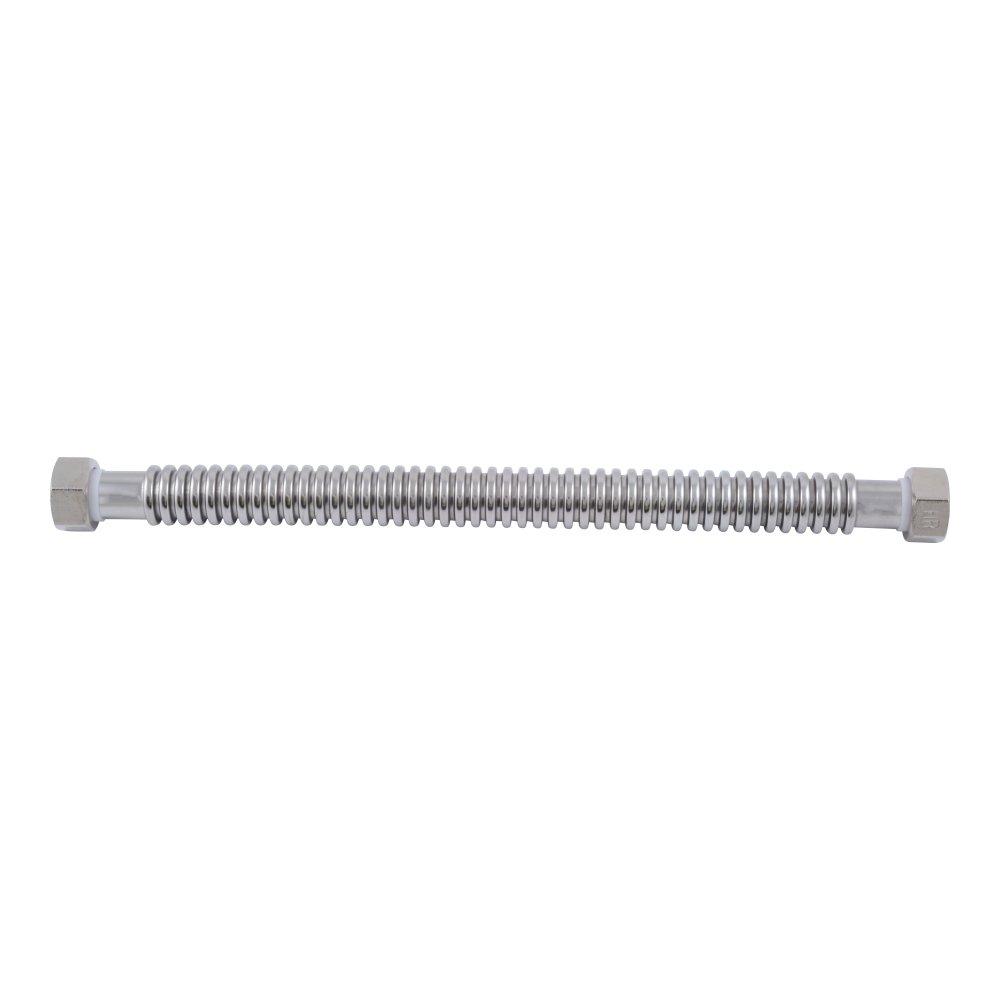

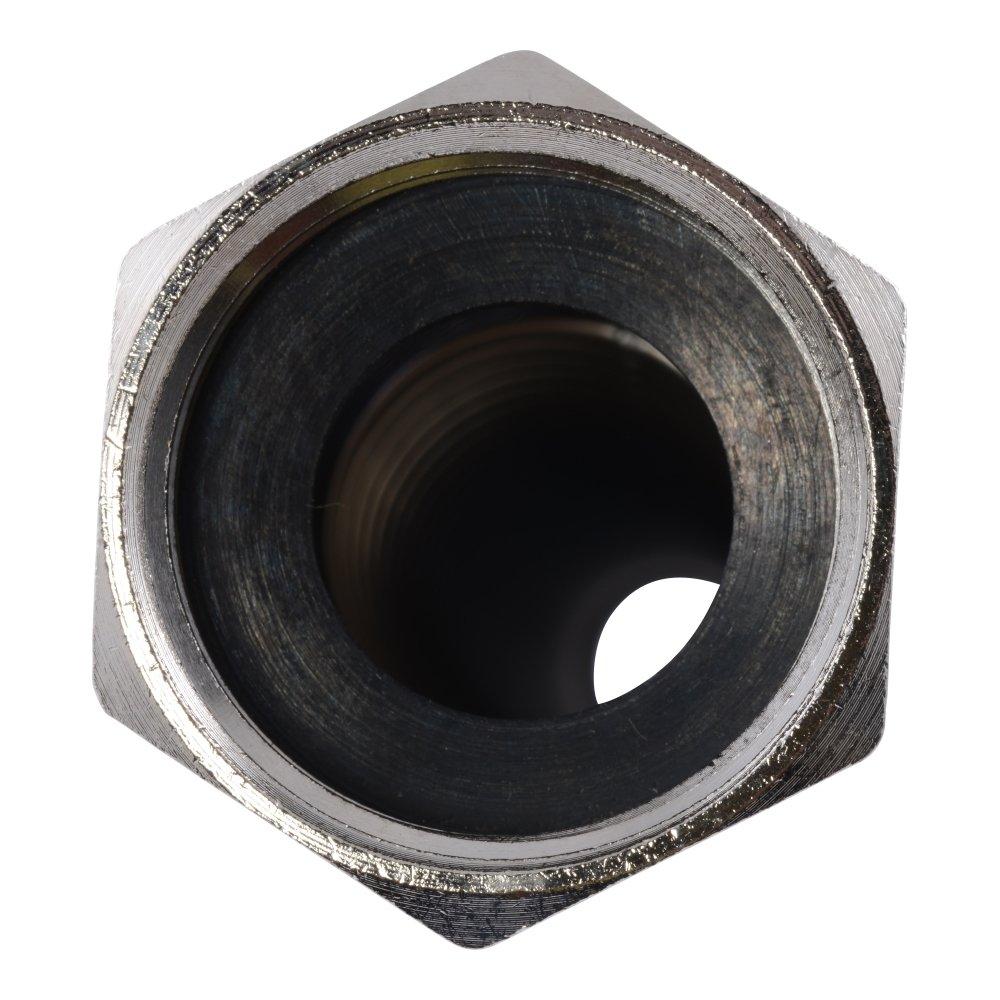

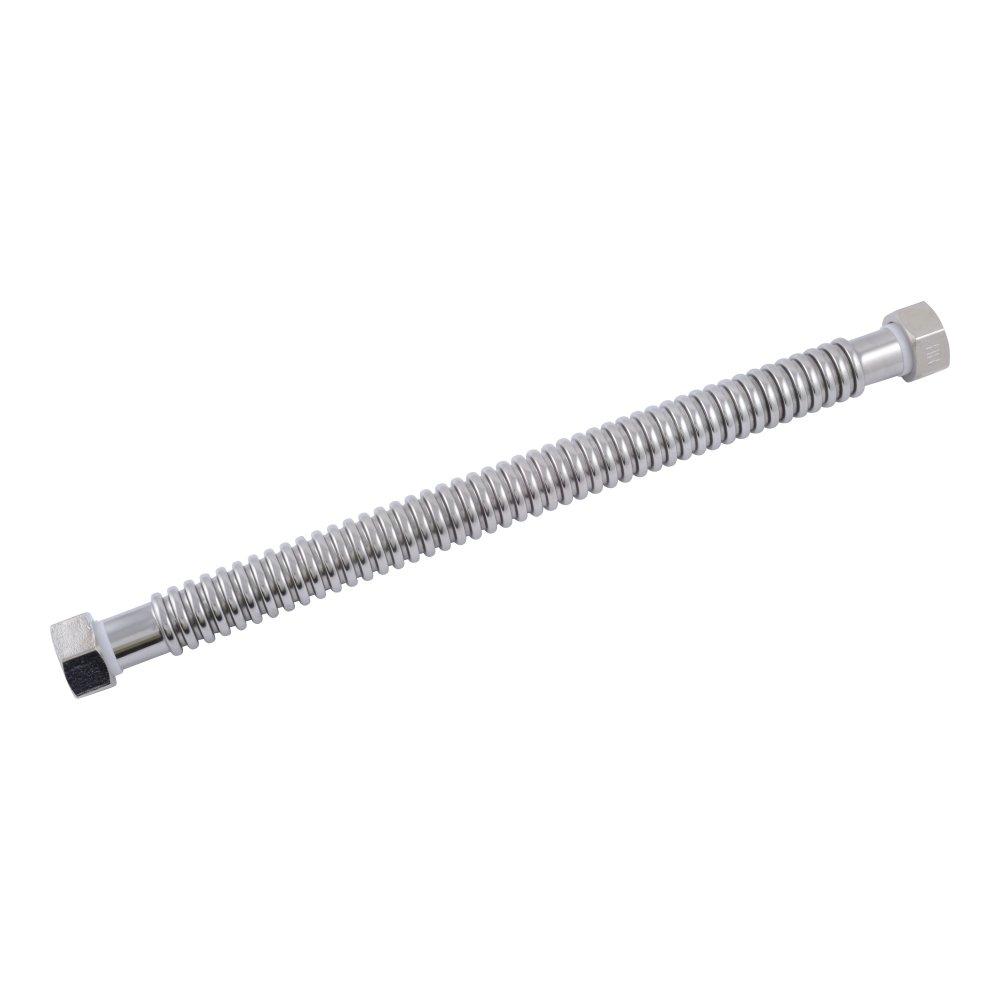

Holdrite QFC-0118 18 x 1 x 1 in. FIP x IPS Water Heater Connector

Product Description

The Holdrite QFC-0118 is an eighteen-inch flexible water heater connector made of stainless steel. This connector is suitable for high-pressure applications, withstanding up to one hundred twenty-five PSI continuously and up to two hundred PSI maximum. It meets the necessary plumbing codes and standards for reliable performance in water heater installations.

• High flexibility for ease of installation
• Meets UPC and IPC codes
• Temperature rated to one hundred ninety degrees

Product Highlights

The Holdrite water heater connector is especially designed for high flow rates thanks to its large inside diameter, making it a practical choice for water heating applications.

Product Information

Standard Information

• Brand: Holdrite
• MPN: QFC-0118

Technical Specifications

• Material: Stainless Steel
• Length: 18 inches
• Connection Type: FNPT x FNPT
• Pressure Rating: 125 PSI Continuous, 200 PSI Maximum
• Temperature Rating: 190 degrees
• Compliance: IAPMO Listed, Meets ASME A112.18.6
• Overall Dimensions: 48.3 cm x 3.8 cm x 2.5 cm
• Item Weight: 0.28 lbs
