Holdrite HR728212 2 in Insulation Coupling Steel Strut Clamp

Product Description

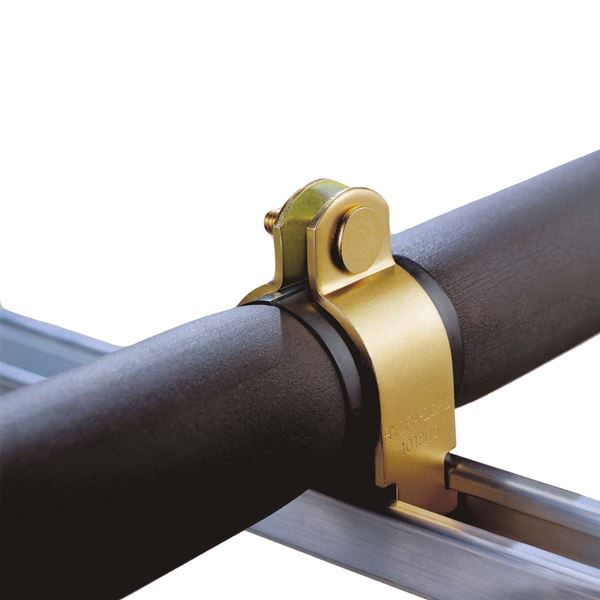

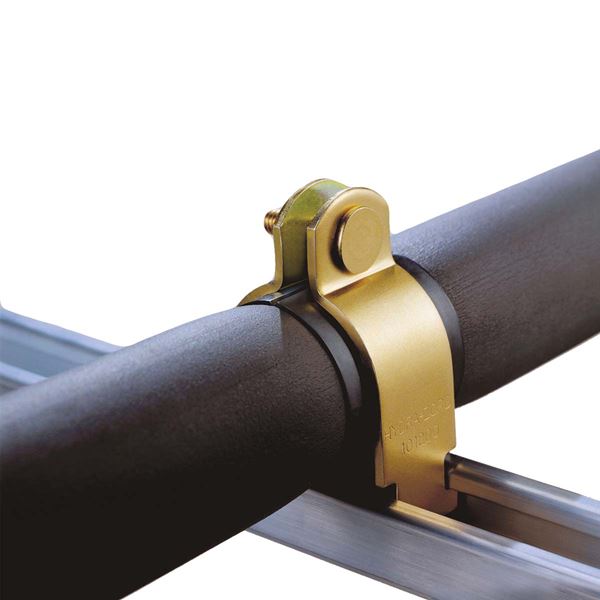

The HOLDRITE HR728212 is a 2 In insulation coupling steel strut clamp designed for secure mounting. This coupling includes clamp halves with a welded fastener and locknut, making it suitable for strut-mounted applications. It is engineered for use with both elastomeric and fiberglass insulation, providing a reliable solution for pipe insulation systems. The clamp operates effectively within a temperature range of -45 degrees F to 275 degrees F, ensuring performance in various environmental conditions.

• Available for 5/8 in. to 4-1/8 in. OD tube and 1/2 in. to 1 in. wall insulation
• Eliminates the need for glue, tape, metal shield & rigid insulation insert
• Mounts directly to strut or suspended hanger rods

Product Highlights

Ideal for overhead insulated pipe, plenum rated per UL 2043, and meets MSS SP-58 requirements.

Product Information

Standard Information

• Brand: HOLDRITE
• Manufacturer Part Number: HR728212

Technical Specifications

• Category: Coupling
• Temperature Range: -45 degrees F - 275 degrees F
• Size: 2 In
• Wall Insulation Thickness: 1 in
• Pipe Outer Diameter: 2 1/8 in
