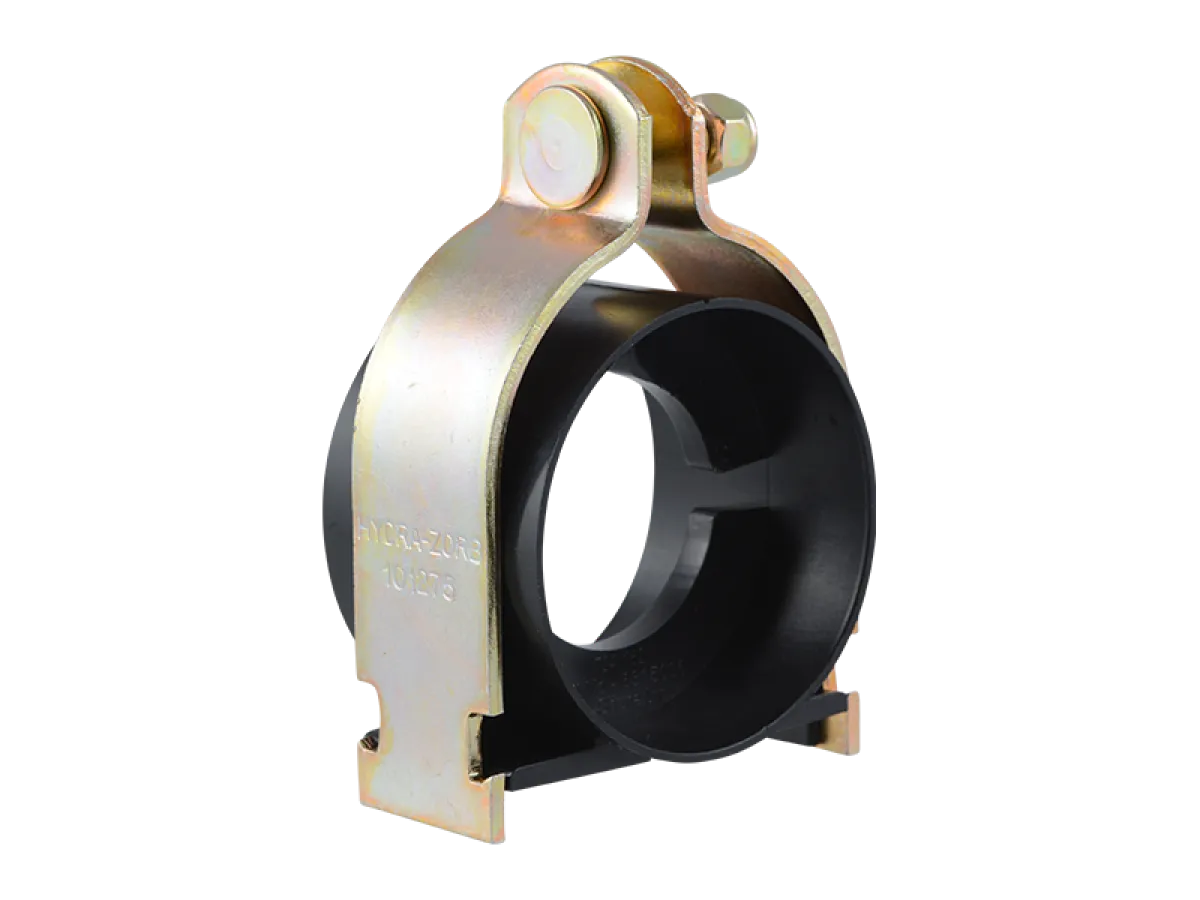

Holdrite HR728162 strut mount insulation coupling 1-1/2 inch 1 inch thick qty 2

Product Description

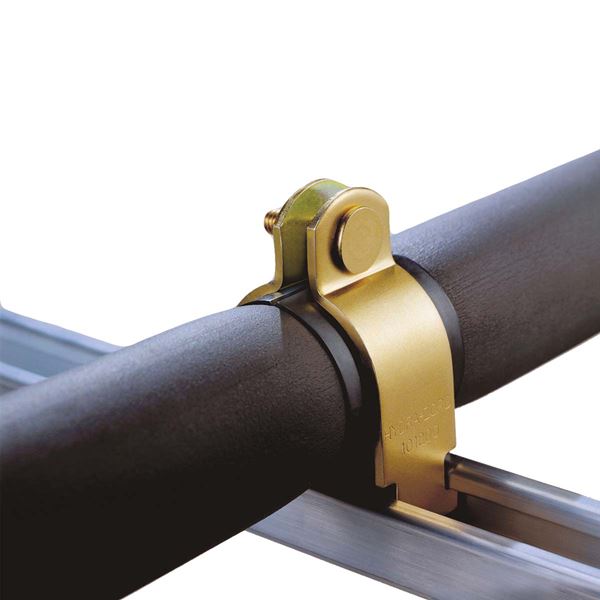

The HOLDRITE HR728162 Strut Mount Insulation Coupling is designed to eliminate metal-to-metal contact between piping, clamps, and strut. Suitable for use with elastomeric and fiberglass insulation, it resists fuels, oils, gases, greases, solvents, and mineral acids. This coupling supports insulated pipes mounted to strut, allowing for easy addition or removal of piping without disturbing adjacent lines, and operates within a temperature range of -45 degrees F to 275 degrees F.

• Mounts directly to strut or suspended hanger rods for secure installation.
• Eliminates metal-to-metal contact and resists various harsh materials.
• Plenum rated per UL 2043 and meets MSS SP-58 requirements.

Product Highlights

Designed for insulated pipe lines, providing secure support and vapor barrier integrity.

Product Information

Standard Information

• Brand: HOLDRITE
• Manufacturer Part Number: HR728162
• Country of Origin: United States

Technical Specifications

• Product Type: Coupling
• Coupling Size: 1-1/2 In
• Insulation Thickness: 1 in
• Pipe Outer Diameter: 1 5/8 in
• Temperature Range: -45 degrees F - 275 degrees F
• Common Applications: Plenum support, Pipe hanger, Insulated pipe support, Horizontal
• Approvals & Listings: MSS SP-58, UL 2043
