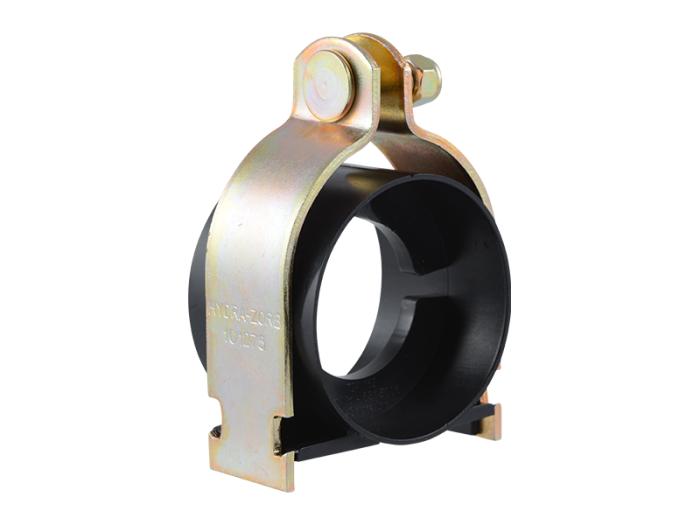

Holdrite hr724162 strut mount insulation coupling 1/2 inchesx 1-5/8 inchesx2.75 inches

Product Description

The HOLDRITE HR724162 Strut Mount Insulation Coupling is designed to eliminate metal-to-metal contact between piping, clamps, and strut. This coupling resists most fuels, oils, gases, greases, solvents, and mineral acids. It facilitates adding or removing piping from installations without disturbing adjacent lines, providing support for 1-5/8 inch O.D. pipe with 1/2 inch insulation. It is plenum-rated and ideal for overhead insulated pipe on a trapeze.

• Mounts directly to strut for secure installation
• Constructed from yellow trivalent (non-hex) plated mild steel

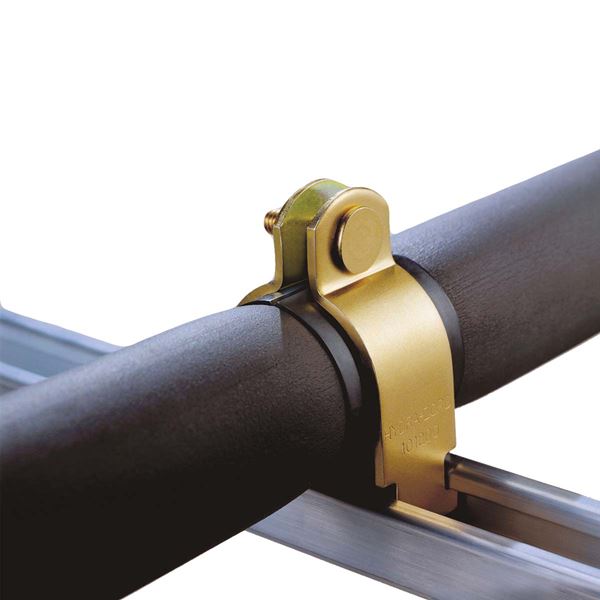

• Ideal for overhead insulated pipe applications on a trapeze

Product Highlights

Eliminates metal-to-metal contact, plenum-rated, and suitable for elastomeric and fiberglass insulation.

Product Information

Standard Information

• Brand: HOLDRITE
• Manufacturer Part Number: HR724162

Technical Specifications

• Type: Acoustical Supports
• Pipe O.D.: 1-5/8 in.
• Insulation Thickness: 1/2 in.
• Approvals & Listings: MSS SP-58, UL 2043
• Product Type: Coupling
• Available Pipe O.D. Range: 5/8 in to 4-1/8 in
• Available Insulation Thickness Range: 1/2 in to 1 in
• Temperature Range: -45°F to 275°F
