Holdrite HR724112 strut mount insulation coupling 1/2 inch insulation 1-1/8 inch O.D. pipe

Product Description

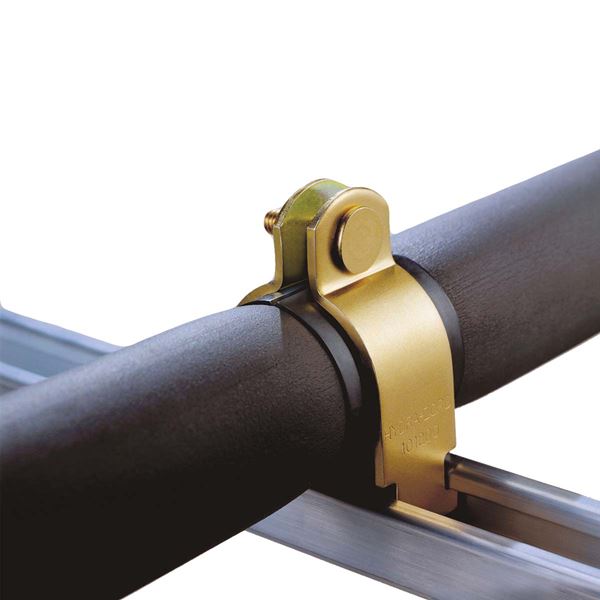

The HOLDRITE HR724112 Strut Mount Insulation Coupling is an acoustical support designed to eliminate metal-to-metal contact between piping, clamps, and strut. This coupling resists various harsh materials, including fuels, oils, gases, greases, solvents, and mineral acids. It facilitates adding or removing piping without disturbing adjacent lines, making it suitable for overhead insulated pipe installations. The assembly includes clamp halves with welded fasteners and a locknut, compatible with elastomeric and fiberglass insulation for 1-1/8 inch O.D. pipe with 1/2 inch insulation.

• Mounts directly to strut or suspended hanger rods for versatile installation.
• Constructed from yellow trivalent (non-hex) plated mild steel for durability.
• Eliminates the need for glue, tape, metal shields, and rigid insulation inserts.

Product Highlights

Designed for insulated pipe applications, this strut mount coupling prevents metal-to-metal contact and resists harsh chemicals, ensuring a complete vapor barrier.

Product Information

Standard Information

• Brand: HOLDRITE
• Manufacturer Part Number: HR724112

Technical Specifications

• MPN: HR724112
• Product SKU: HOLD-HR724112
• Brand: HoldRite
• Part Number: HOLD-HR724112
• Unit of Measure: EA
• Type: Acoustical Supports
• Pipe Outer Diameter: 1 1/8 in
• Insulation Thickness: 1/2 in
• Product Type: Coupling
• Length: 4.12 in
• Width: 3.34 in
• Height: 2 in
• Material: Yellow trivalent (non-hex) plated mild steel
• Temperature Range: -45 to 275 degrees F
• Fire/Smoke Rating: 25/50 frame spread/smoke developed index
• Certifications: UL 2043 (Plenum Rated)
• Standards Met: MSS SP-58
