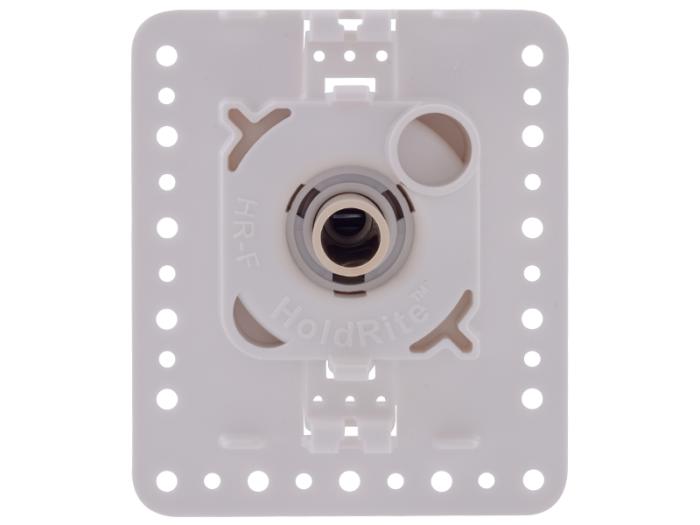

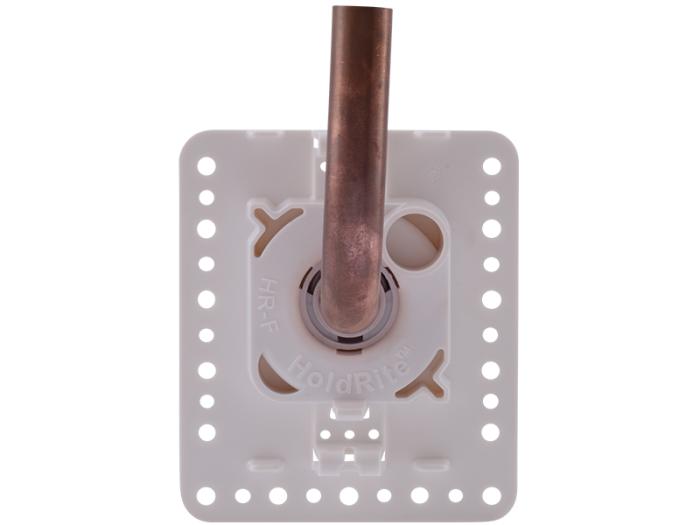

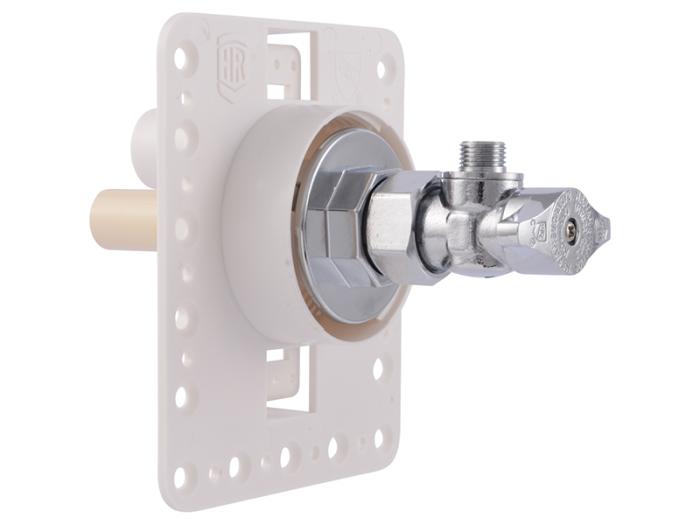

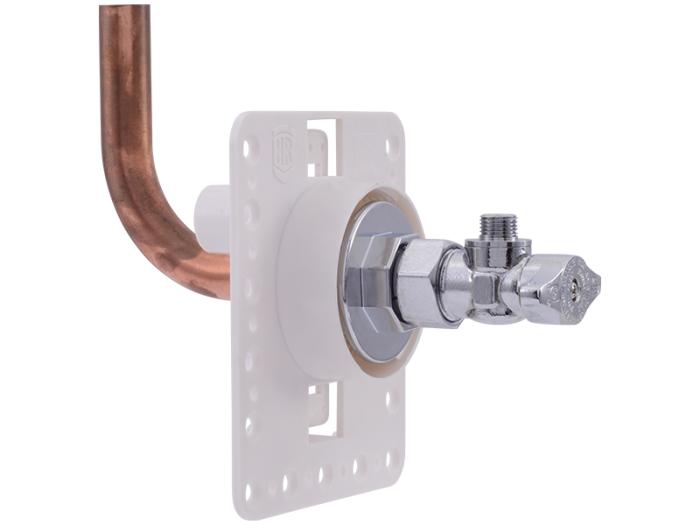

Holdrite HR-F-M-1 Fixture Outlet Box Assembly 1/2 inches Copper x 3/8 inches Compression

Product Description

The Holdrite HR-F-M-1 fixture outlet box assembly is suitable for both commercial and residential plumbing applications. It is designed to support water supply valve installations during the rough-in phase. Install it directly to a stud via flange holes or between studs using a hyco bar or galvanized bracketing.

• Includes a supply valve with a quarter-turn handle.
• Compatible with copper, PEX, or CPVC piping.
• Fully assembled upon purchase.

Product Highlights

This fixture outlet box aids in efficient plumbing processes by allowing for diverse piping connections and providing a sturdy installation point.

Product Information

Standard Information

• Application: Plumbing
• Product Type: Outlet Box

Technical Specifications

• Outlet Size: 3/8 inches OD compression
• Inlet Size: 1/2 inches
• Max Pressure: 125 PSI
• Material: Copper
• Max Temperature: 160 degrees F
• Series: HR-F
• Approvals & Listings: Box: IAPMO PS 54; Valves: ASME A112.18.1/CSA B125.1, NSF/ANSI 14
• Manufacturer: Reliance Worldwide Corporation
