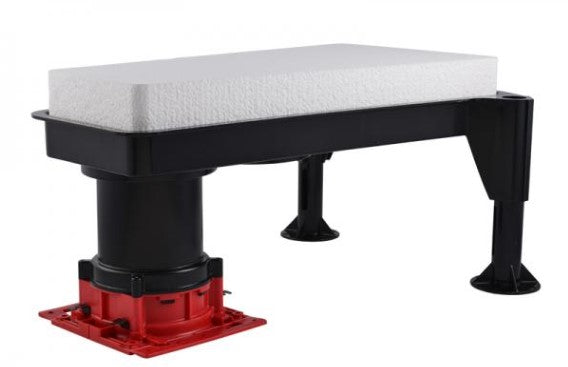

HoldRite HFPLTB-NP-0300-8 HydroFlame Pro Series Tub Box 1-1/2-in IPS Drain with 3-in Sleeve 8-in Tall

Product Description

The HoldRite HFPLTB-NP-0300-8 is part of the HydroFlame Pro Series. This tub box features a one and a half inch IPS drain with a three inch sleeve and stands eight inches tall. This system is designed to provide effective solutions for firestop applications. It helps to prevent unwanted water intrusion while safeguarding against fire, smoke, and gas spread.

• UL listed firestop device for bathtub drains
• Three hour fire rating (F-rating)
• Provides a water-tight slab penetration

Product Highlights

This innovative design includes a patented telescoping feature that eliminates the need for cutting sleeves on the job site. Locator whiskers assist in locating buried sleeves after concrete pour, ensuring efficient installation.

Product Information

Standard Information

• Brand: HoldRite
• MPN: HFPLTB-NP-0300-8

Technical Specifications

• Type: Tub Box
• Size: 3 inches
• Material: PL or Metal
• Fire Rating: Up to 3 hour (F-rating)
• Testing Standards: Tested to ASTM E814, UL 1479, and CAN/ULC S115
• Application: Firestop solutions for tub drains
• Knock-out Locations: Two options for drain and overflow
