HoldRite HFPLTB-NP-0300-10 HydroFlame Pro Tub Box 1-1/2-in IPS Drain with 3-in Sleeve 10-in Tall

Product Description

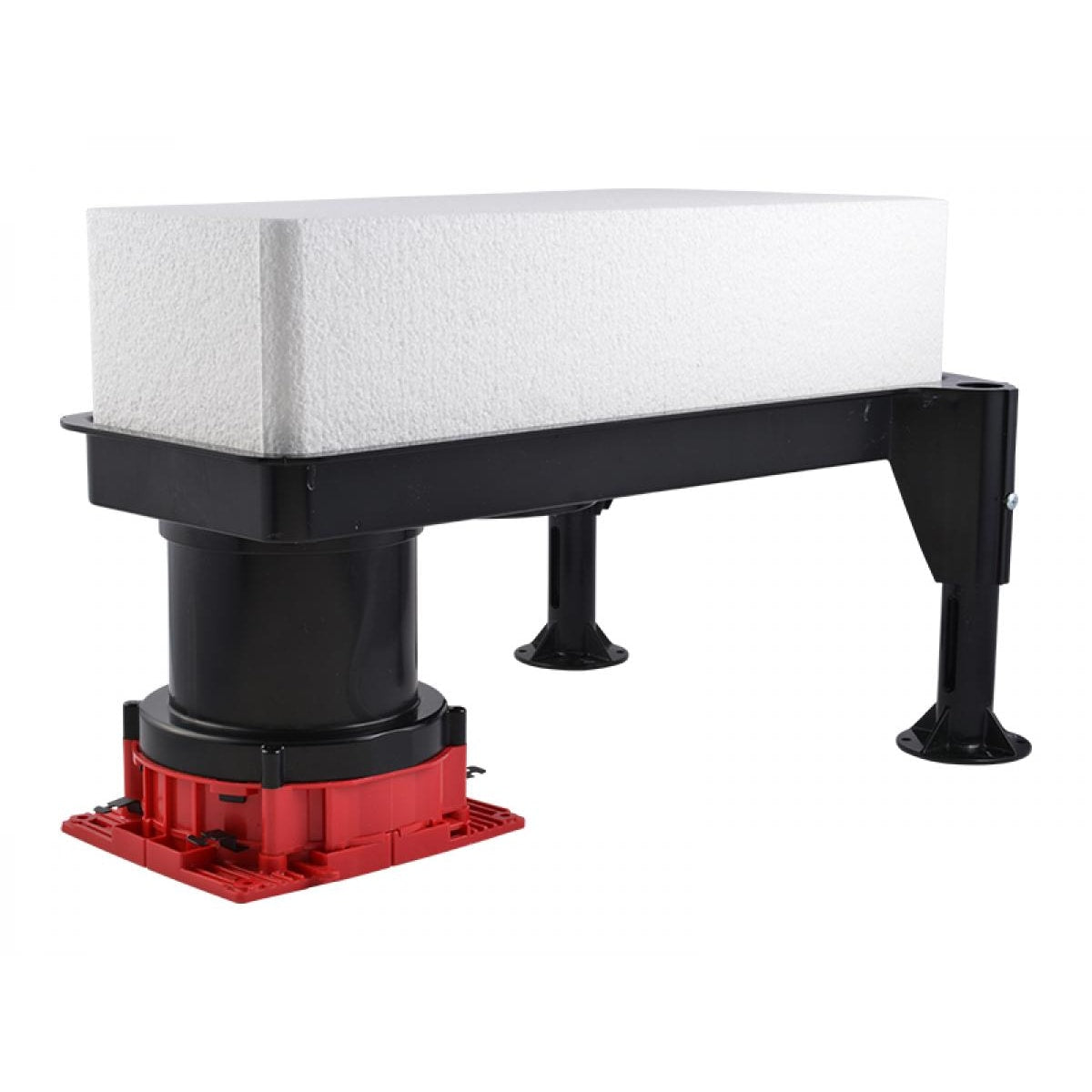

The HoldRite HydroFlame Pro Series Tub Box, model HFPLTB-NP-0300-10, is designed for versatile use in plumbing applications. This tub box accommodates a range of exotic drain and tub designs, providing flexibility in layout and installation. It ensures a watertight seal while preventing the intrusion of fire, smoke, and gases.

• UL listed firestop device for bathtub drains.
• Up to three-hour fire rating for safety.
• Constructed for tight fits with options for standard and exotic tub drain locations.

Product Highlights

Designed for easy installation and maintenance, this tub box features a patented telescoping design that eliminates the need for cutting sleeves on-site. The locator whiskers assist in identifying buried sleeves after concrete placement, enhancing efficiency during installation.

Product Information

Standard Information

• Brand: HoldRite
• Part Number: HFPLTB-NP-0300-10

Technical Specifications

• Type: Tub Box
• Material: PL or Metal
• Fire Rating: 3 hour
• Drain Compatibility: Accepts 1-1/2-inch plastic or metallic drains
• Knock-out Locations: Two optional positions for drain layout
• Testing Standards: Tested to ASTM E814, UL 1479, and CAN/ULC S115
• Height Adjustment: Modifiable in the field
• Water Seal: UL W-rated water seal
