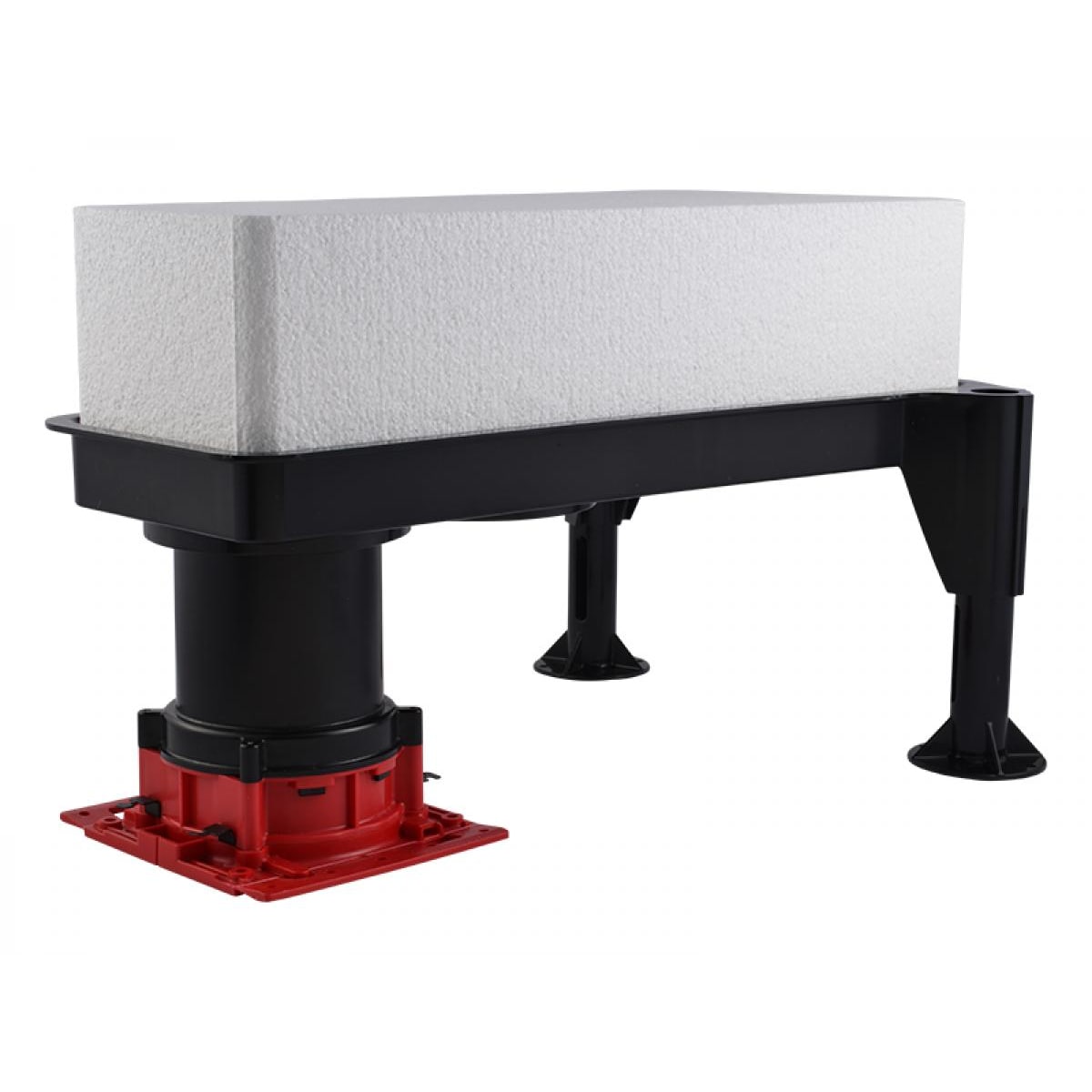

HoldRite HFPLTB-NP-0200-10 HydroFlame Pro Series Tub Box 1-1/2-in IPS Drain with 2-in Sleeve 10-in Tall

Product Description

The HoldRite HydroFlame Pro Series Tub Box, MPN HFPLTB-NP-0200-10, features a unique design for firestop systems. This product provides a water seal, preventing water intrusion while offering protection against fire, smoke, and gas. The innovative design allows for easy installation without cutting sleeves on-site. It also includes locator whiskers to find buried sleeves after concrete pour and an integrated threaded cap for easy removal.

• UL listed firestop device for bathtub drains
• Up to three-hour fire rating (F-rating)
• Water-tight slab penetration

Product Highlights

This tub box enhances installation flexibility for various drain and tub designs while allowing for expansion and contraction. It also accommodates standard and exotic drain locations.

Product Information

Standard Information

• Brand: HoldRite
• Product Type: Tub Boxes

Technical Specifications

• Fire Rating: Up to 3 hours
• Material: Plastic or Metal
• Drain Size: 1-1/2 inches
• Sleeve Size: Two-inch
• Height: 10 inches
• Testing Standards: ASTM E814, UL 1479, CAN/ULC S115
• Knock-out Locations: Two
