Holdrite HFPCD4 Corrugated Metal Deck Plate 2-1/2 in-4 in

Product Description

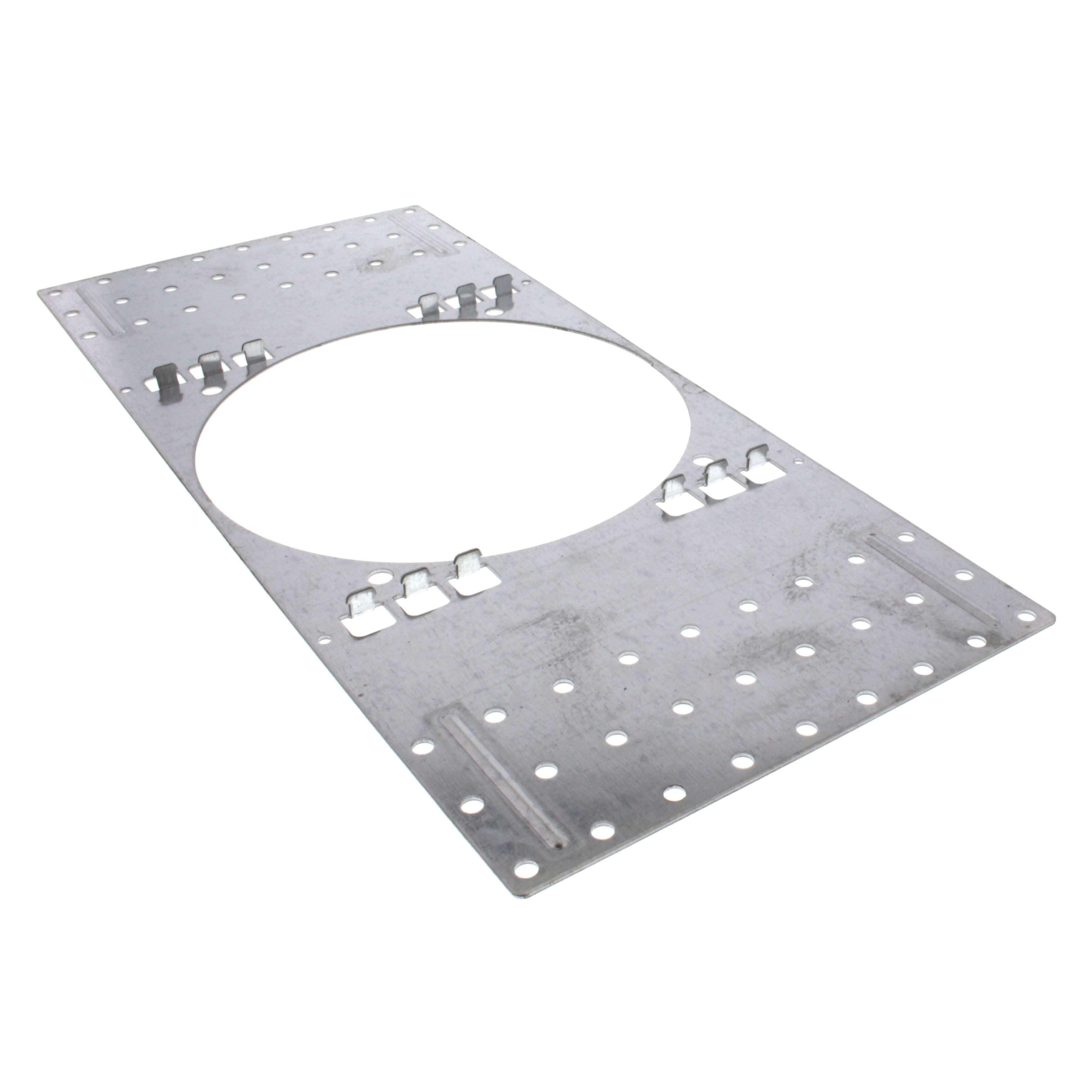

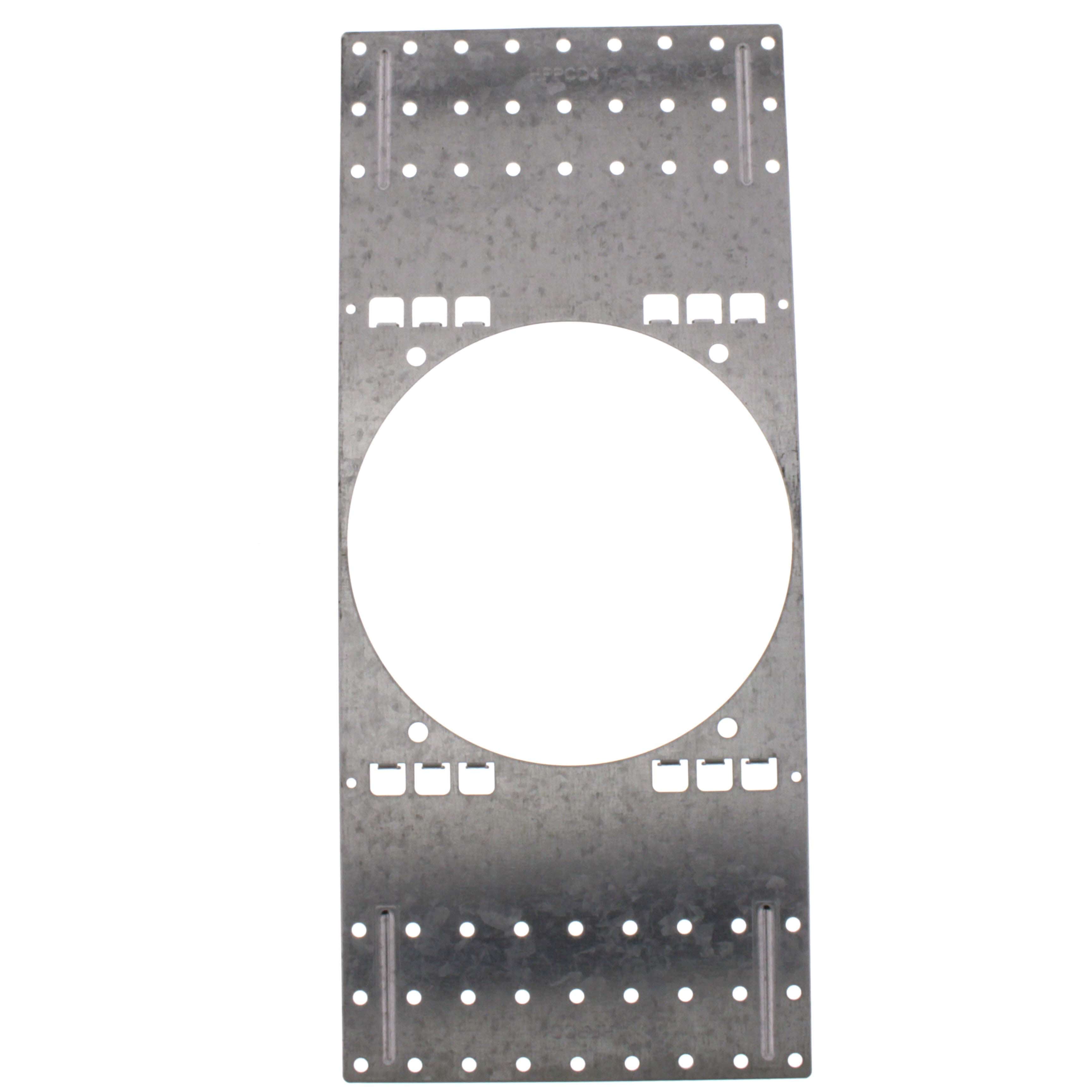

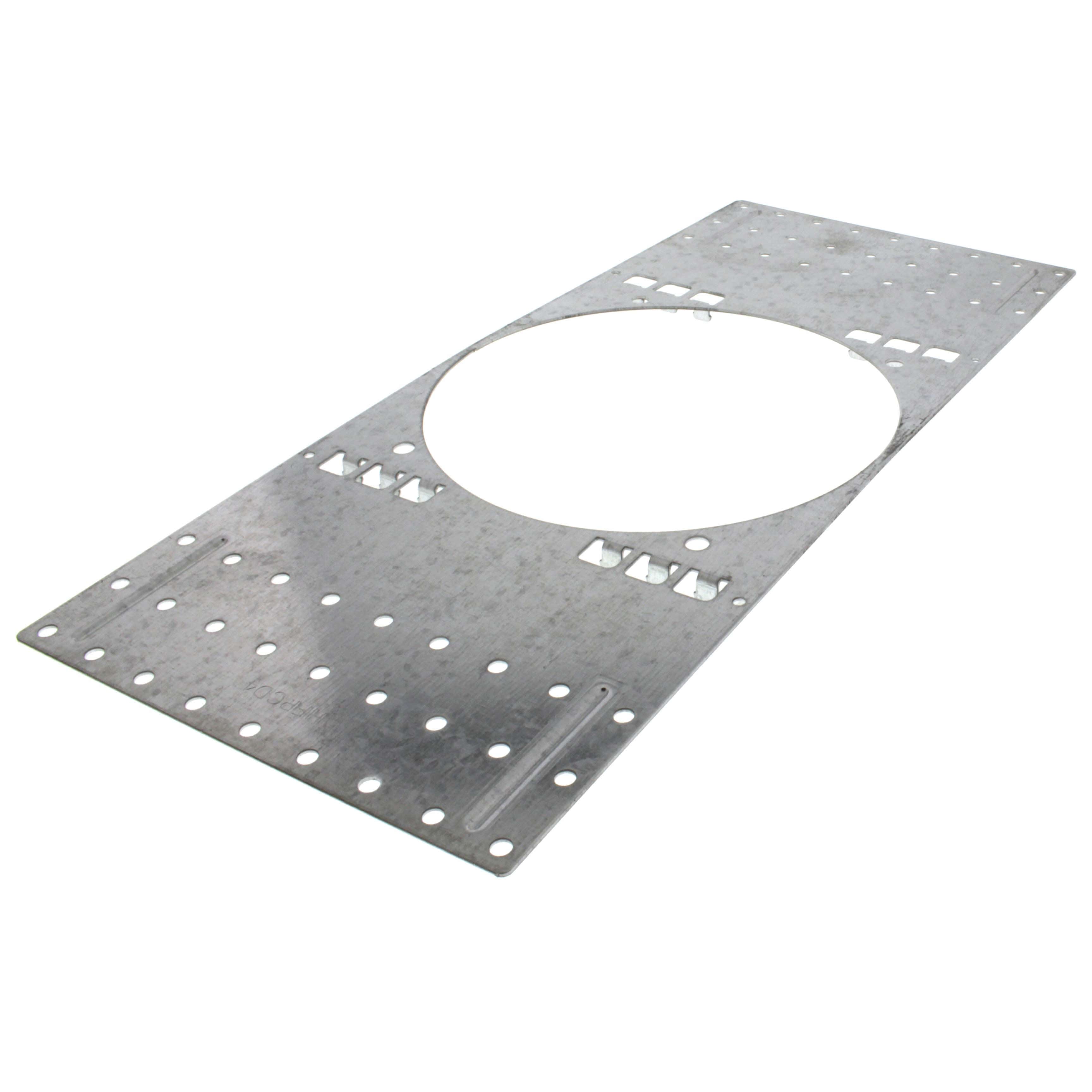

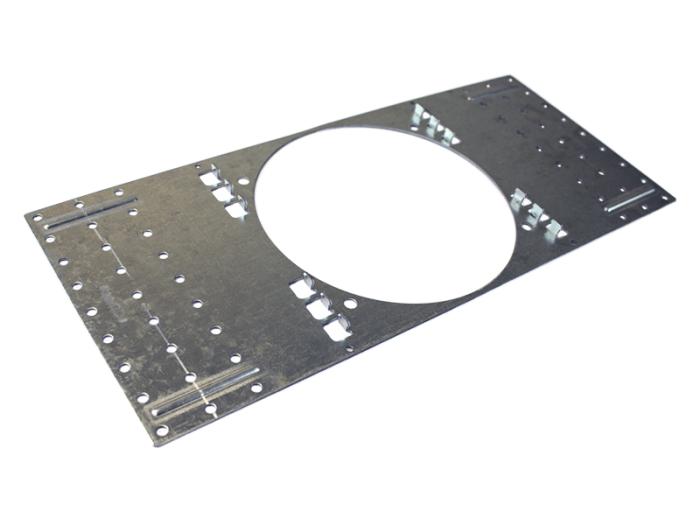

The HOLDRITE HFPCD4 corrugated metal deck plate transitions cast-in-place firestop sleeving devices from use on a flat form deck into a sleeve for use on a corrugated metal form deck. It is for use with concrete pours over corrugated metal decks and assembles directly to HOLDRITE HydroFlame Pro Series Firestop Sleeves.

• Assembles directly to HOLDRITE HydroFlame Pro Series Firestop Sleeves
• Superior strength and stability
• One-piece metal deck solution

Product Highlights

The corrugated metal deck plate provides a durable, sturdy connection and creates a flat surface.

Product Information

Standard Information

• Brand: HOLDRITE
• Manufacturer Part Number: HFPCD4
• Country of Origin: Unknown

Technical Specifications

• Category: Metal Deck
• Size: 2-1/2 in - 4 in
• Material: 18 ga Cold Rolled Steel
• Brand: Holdrite
• Finish: Galvanized
• Item Name: Corrugated Deck Plate
• Sub Brand: Hydroflame Pro
• Applications: For use with concrete pours over corrugated metal decks
• Nominal Penetrant Size: 2-1/2 - 4 in
• Series: HYDROFLAME™ PRO
• Specifications: 2-1/2 to 4 in Nominal Pipe, 6 in Min Deck Hole
• Suitable For Use With: HFP-P/M6, HFP-P/M6B, HFP-H7, HFP-H7B #4 Non-Telescoping Fire Stop Sleeve, #5 Hollow Sleeve and 2-1/2 to 4 in Plastic and Metal Penetrating Pipe
• Type: Corrugated
• Penetrating Pipe Type: Plastic and Metal
