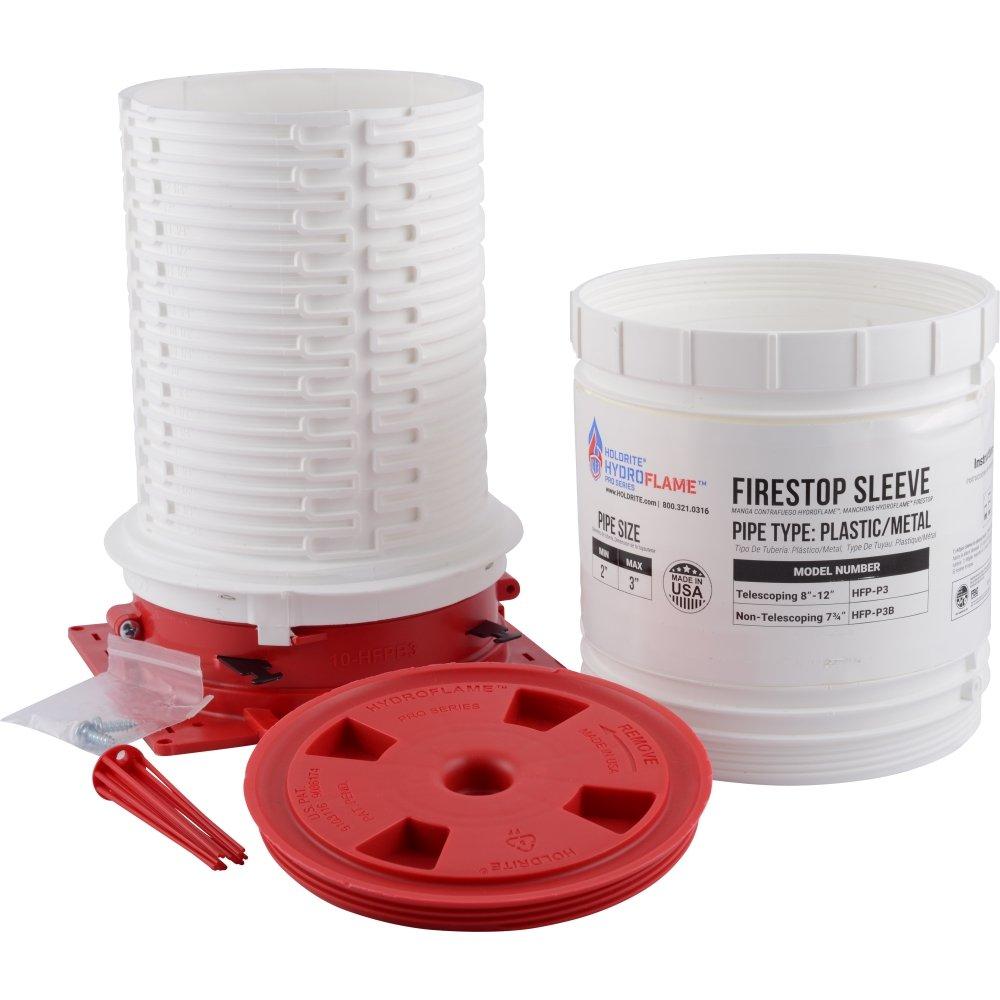

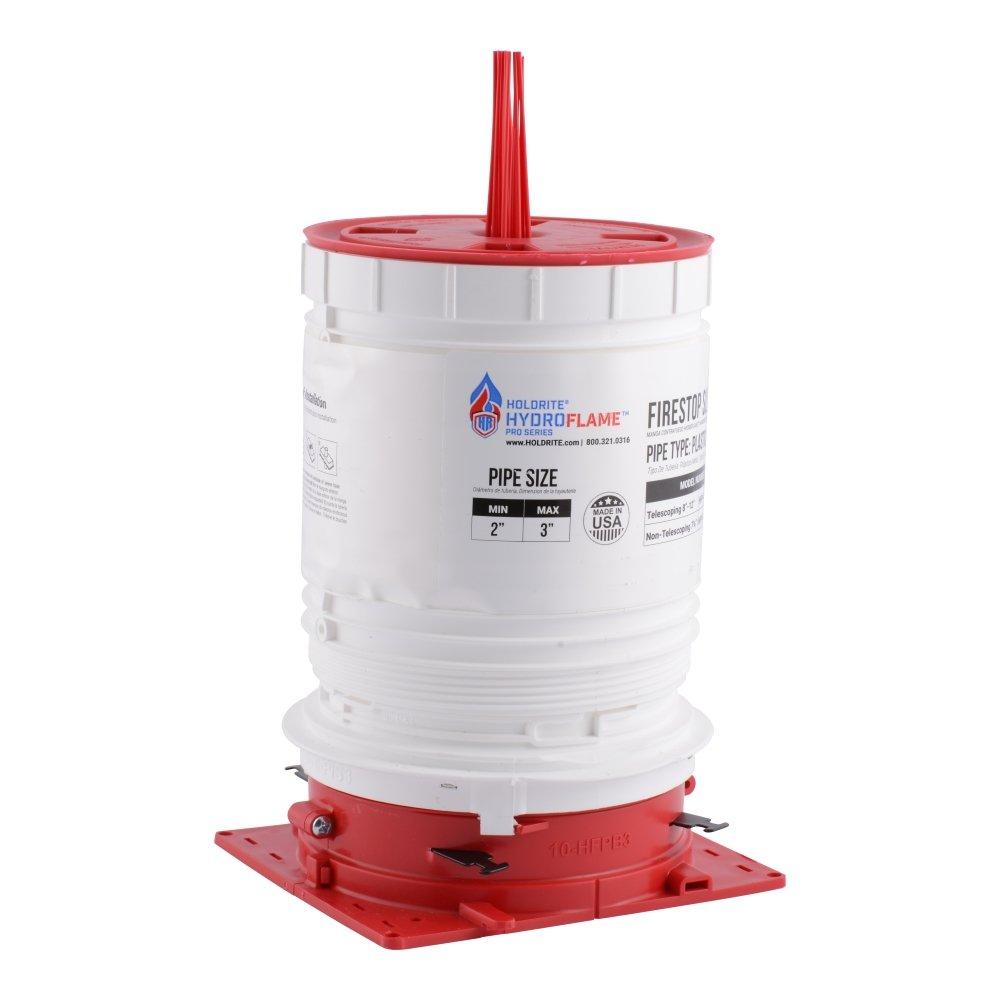

Holdrite HFP-P3 HydroFlame Pro Series 2 - 3 in Polypropylene and Thermoplastic Firestop Sleeve

Product Description

Holdrite HFP-P3 is a HydroFlame Pro Series firestop sleeve designed to meet building codes. This sleeve accommodates two to three-inch pipes and features a telescoping design that adjusts from eight inches to twelve inches in height. Additionally, it includes locator whiskers to identify buried sleeves and distinguish between metal and plastic pipe types. This product is essential for both flat concrete form decks and corrugated metal decks.

• Meets building code requirements
• Available for various penetrants
• Built-in fire, smoke, gas, and water protection

Product Highlights

This firestop sleeve provides robust protection against fire and smoke while allowing for pipe movement. It supports a range of applications including insulated and non-insulated pipes.

Product Information

Standard Information

• Brand: Holdrite
• MPN: HFP-P3

Technical Specifications

• Nominal Size: 2 - 3 inches
• Height Adjustment: 8 - 12 inches in quarter-inch increments
• Material: Polypropylene and thermoplastic
• Applications: Insulated and non-insulated pipes
• Standards: OSHA, UL listed
• Fire Rating: 2 or 3 hour F-ratings
• Weight: 1.38 pounds
• Base Color Indication: Red for plastic or metal piping system; Black for metal piping system
