Holdrite 704 Bend Support Fitting 3/8 Inch or 1/2 Inch

Product Description

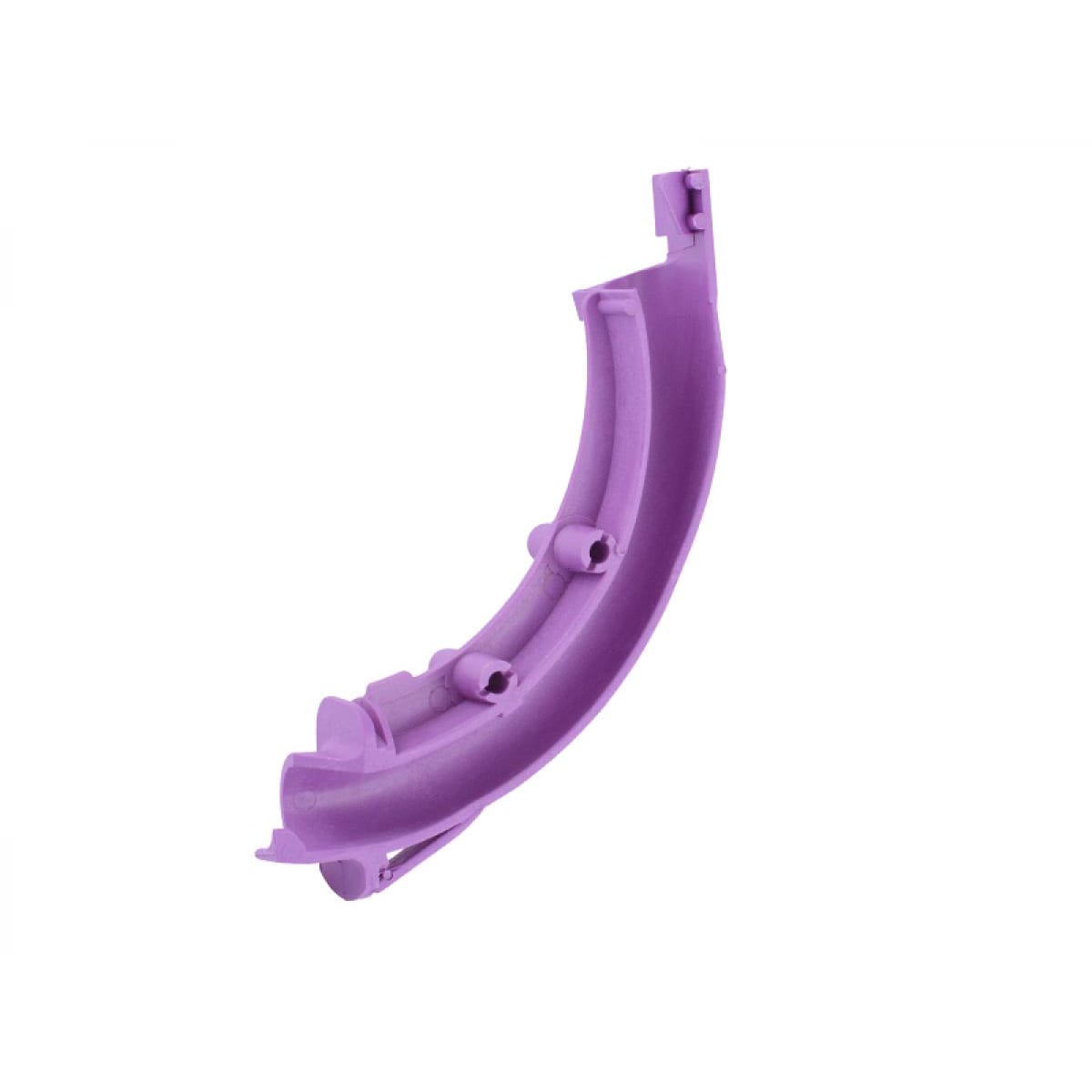

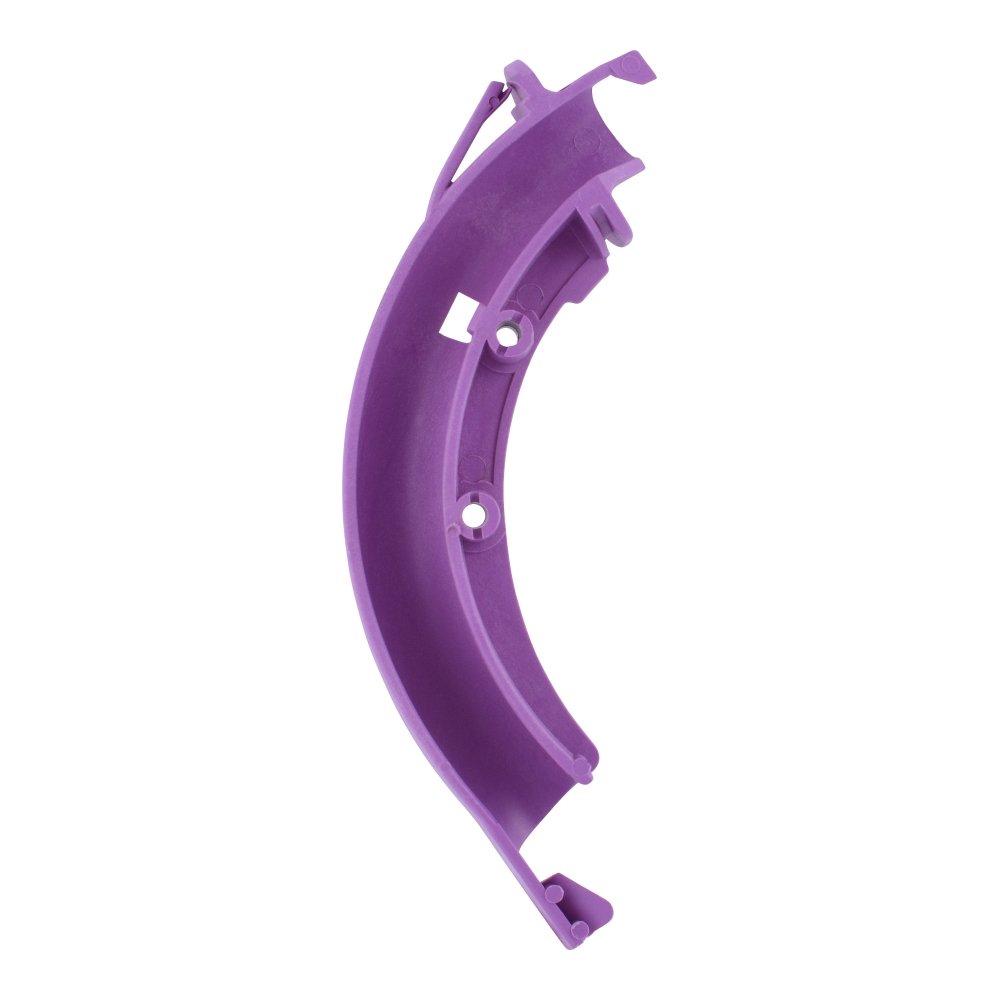

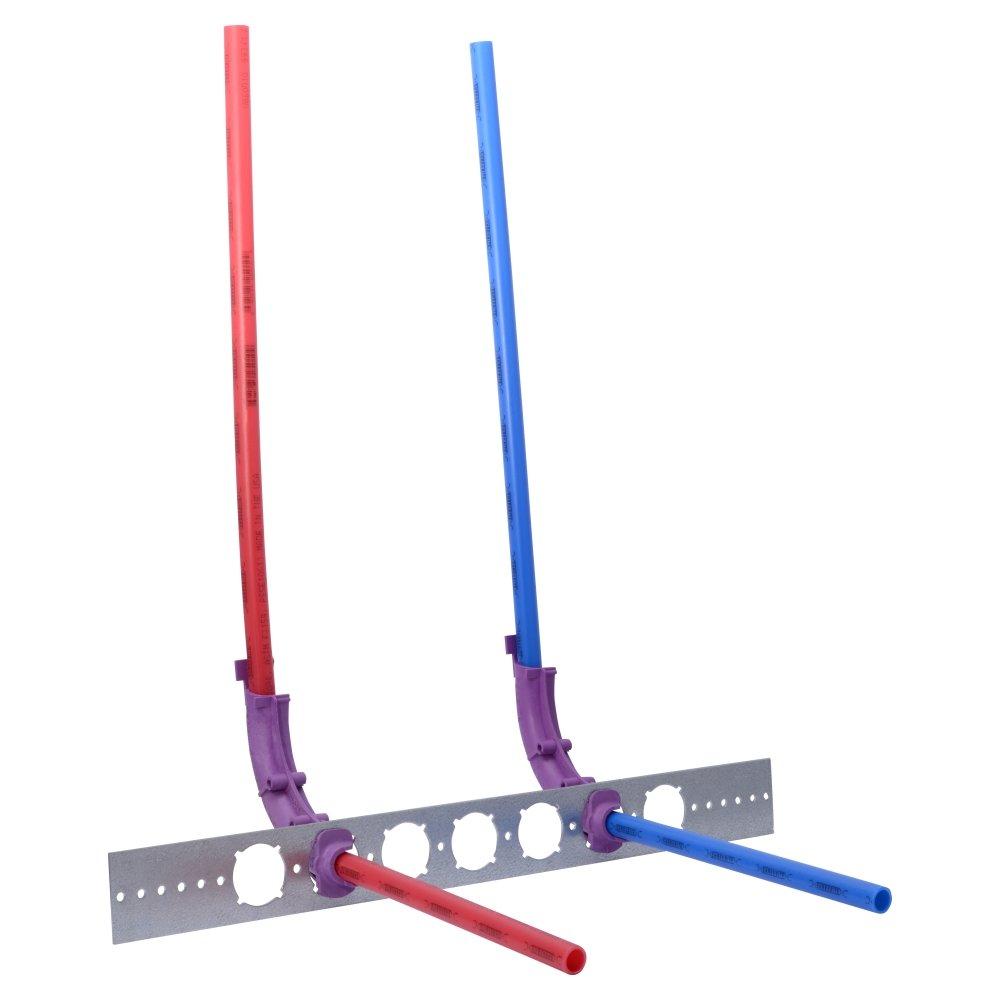

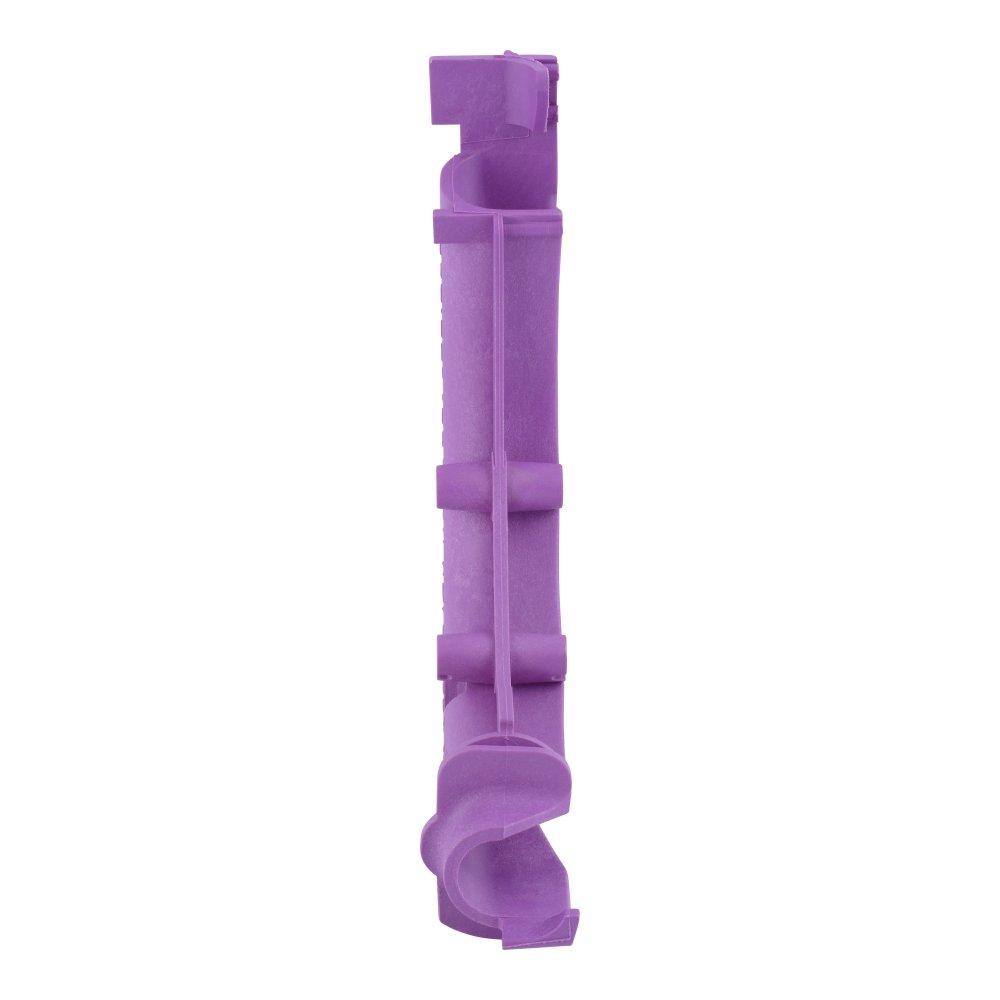

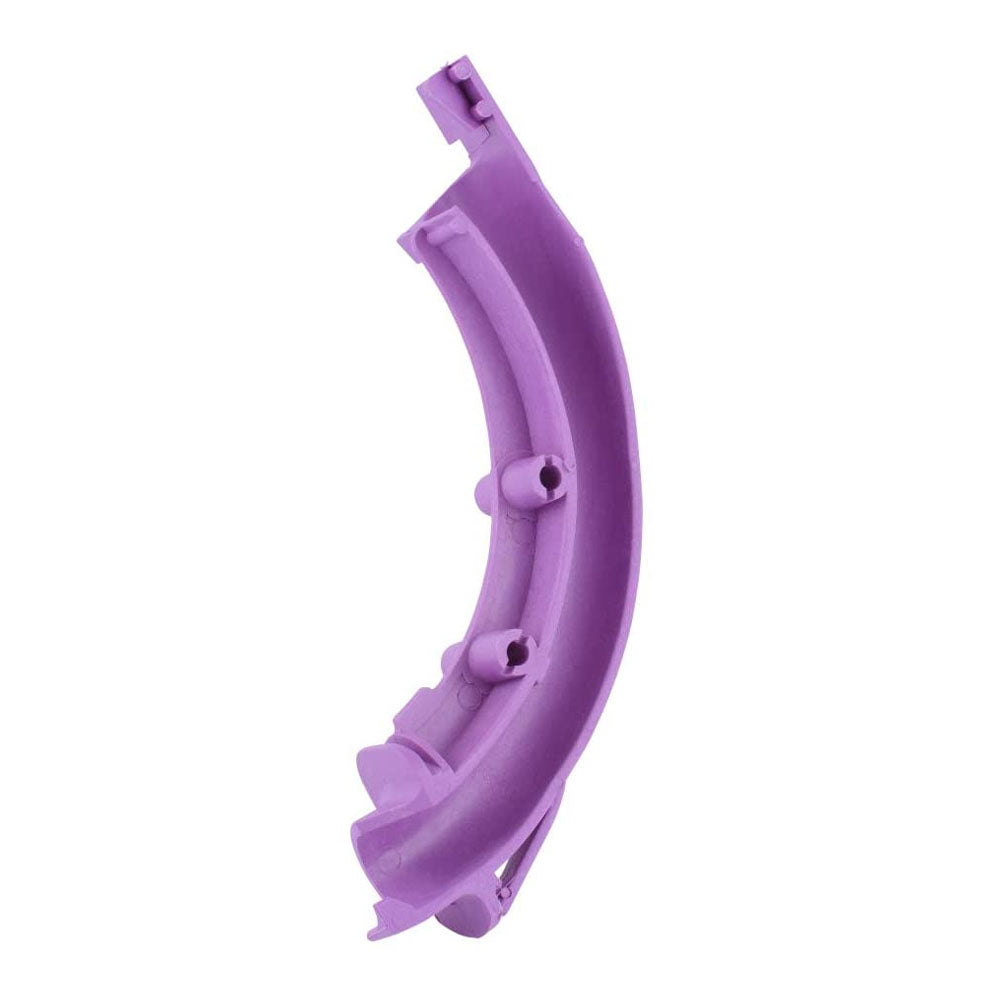

The HOLDRITE 704 is a bend support fitting designed for PEX tubing. This fitting supports either 3/8" or 1/2" PEX tubing and integrates a bracket for easy installation. It can be installed directly to a stud, reducing the need for in-wall fittings and concealed joints. The fitting provides a 360-degree turning radius.

• Integrates bracket for PEX turnout.
• Can be installed directly to stud.
• Compatible with All PEX Tubing Manufacturer

Product Highlights

The HOLDRITE 704 bend support fitting is made of nylon and supports PEX tubing with a 360-degree turning radius.

Product Information

Standard Information

• Brand: HOLDRITE
• Manufacturer Part Number: 704
• Country of Origin: USA

Technical Specifications

• Applicable Standard: UPC/IPC/IAPMO
• Designated Size: 3/8 Inch or 1/2 Inch
• End Connection: PEX Tubing
• Item: Bend Support Fitting
• Material: Nylon
• Temperature Rating: -10 to 180 Deg F
• Bracket Size: 3-1/4 Inch x 5-1/2 Inch
• Load Rating: 25 Pound
• Manufacturer Name: HoldRite
• MPN: 704
• Brand: HOLDRITE
• Applications: 1/2 inch PEX Tubing
• For Use With: For Vertical, Tubing Isolation, Horizontal, Fixture Stub-out
• Standards: UPC, IPC, IAPMO Listed
• Dynamic Load Capacity: 25 lb
• Pipe Size: 3/8 to 1/2 in CTS
