Holdrite 601-26 Galvanized Cpvc Pipe Support Bracket 26 in

Product Description

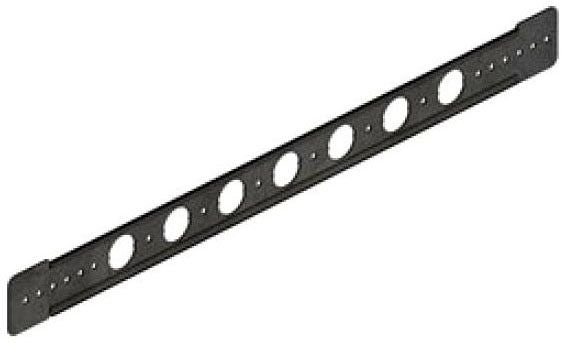

The HOLDRITE 601-26 is a 20-gauge galvanized steel bracket designed exclusively to support CPVC piping in residential and light commercial plumbing installations. At 26 inches in length, the bracket features rolled edges that add structural rigidity without increasing profile. It is engineered to work only with glueable HOLDRITE 604 inserts for 1/2-inch pipe or HOLDRITE 605 inserts for 3/4-inch pipe, which snap directly into the bracket channel. Licensed plumbers install this bracket as part of a secure, code-conscious CPVC pipe support system.

This bracket is suited for residential and commercial plumbing rough-in work where CPVC supply lines require consistent, secure support across a span. The 601-26 is the longer of the two bracket sizes in this series and is commonly used in applications where stud spacing or structural layout requires extended reach. The system is designed to work exclusively with HOLDRITE snap-in inserts, keeping installation straightforward and reducing the risk of pipe movement or stress at support points.

Key Features

• 20-gauge galvanized steel construction resists corrosion in typical plumbing environments
• 26-inch length accommodates wider stud spacing or extended support runs
• Rolled edges increase bracket strength without adding bulk
• Designed exclusively for CPVC piping — not intended for copper, PEX, or PVC
• Compatible with HOLDRITE 604 insert (1/2-inch pipe) and 605 insert (3/4-inch pipe), both sold separately
• Snap-in insert installation reduces labor time during rough-in

Compatibility

Works exclusively with HOLDRITE 604 glueable inserts for 1/2-inch CPVC pipe and HOLDRITE 605 glueable inserts for 3/4-inch CPVC pipe. Inserts are sold separately and snap into the bracket channel. Not compatible with non-CPVC piping materials.

Installation Notes

Installation is performed by a licensed plumber as part of a CPVC rough-in assembly. Shut off the water supply and depressurize the line before any work on existing systems. Follow local plumbing code requirements and CPVC manufacturer guidelines for support spacing. Do not use this bracket to support pipe materials other than CPVC, as the insert system is designed specifically for that application.

Technical Specifications

• Material: 20-gauge galvanized steel
• Length: 26 inches
• Compatible Pipe Material: CPVC only
• Compatible Inserts: HOLDRITE 604 (1/2-inch pipe), HOLDRITE 605 (3/4-inch pipe)
• UPC: 671119162684

Standard Information

• Brand: HOLDRITE
• Manufacturer Part Number: 601-26
