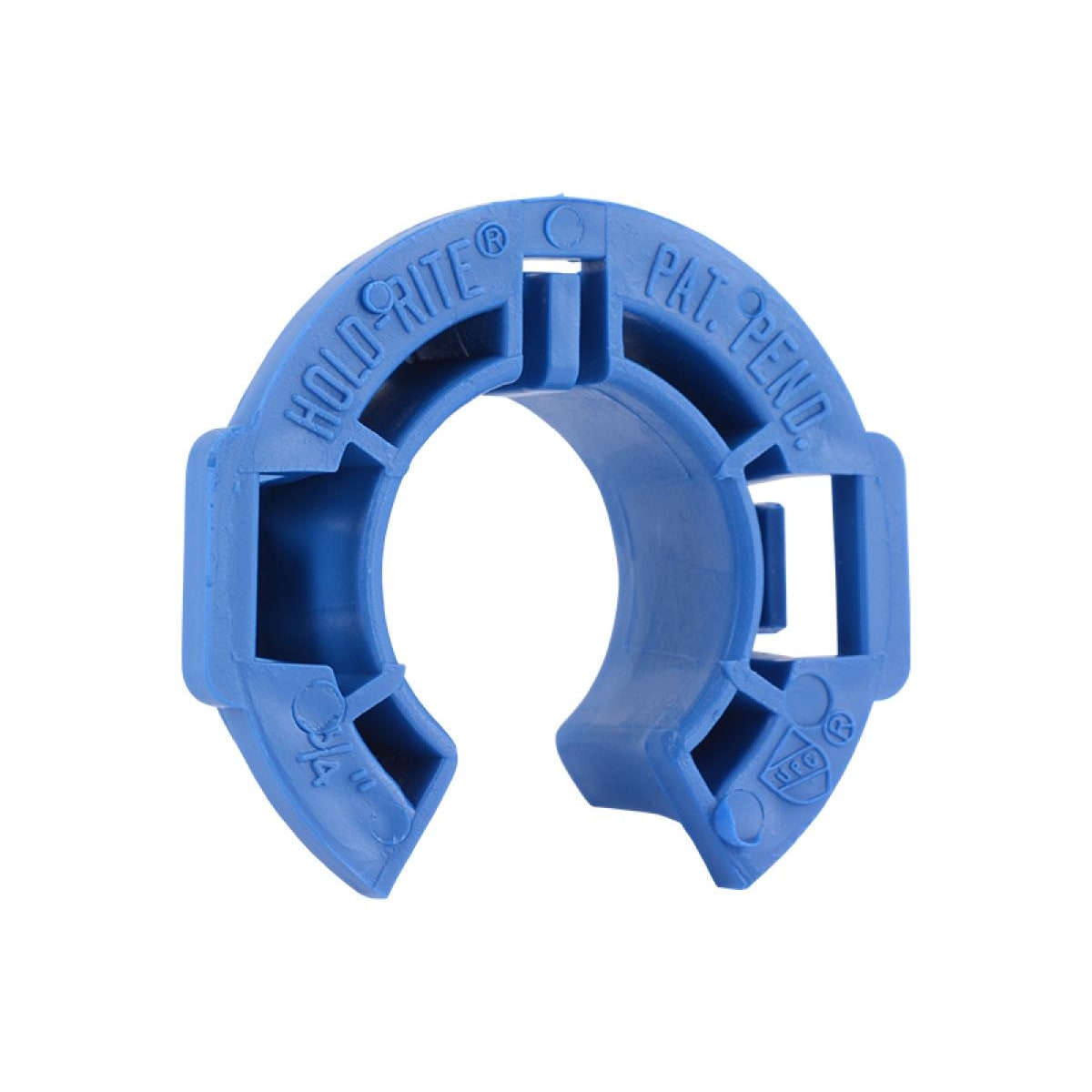

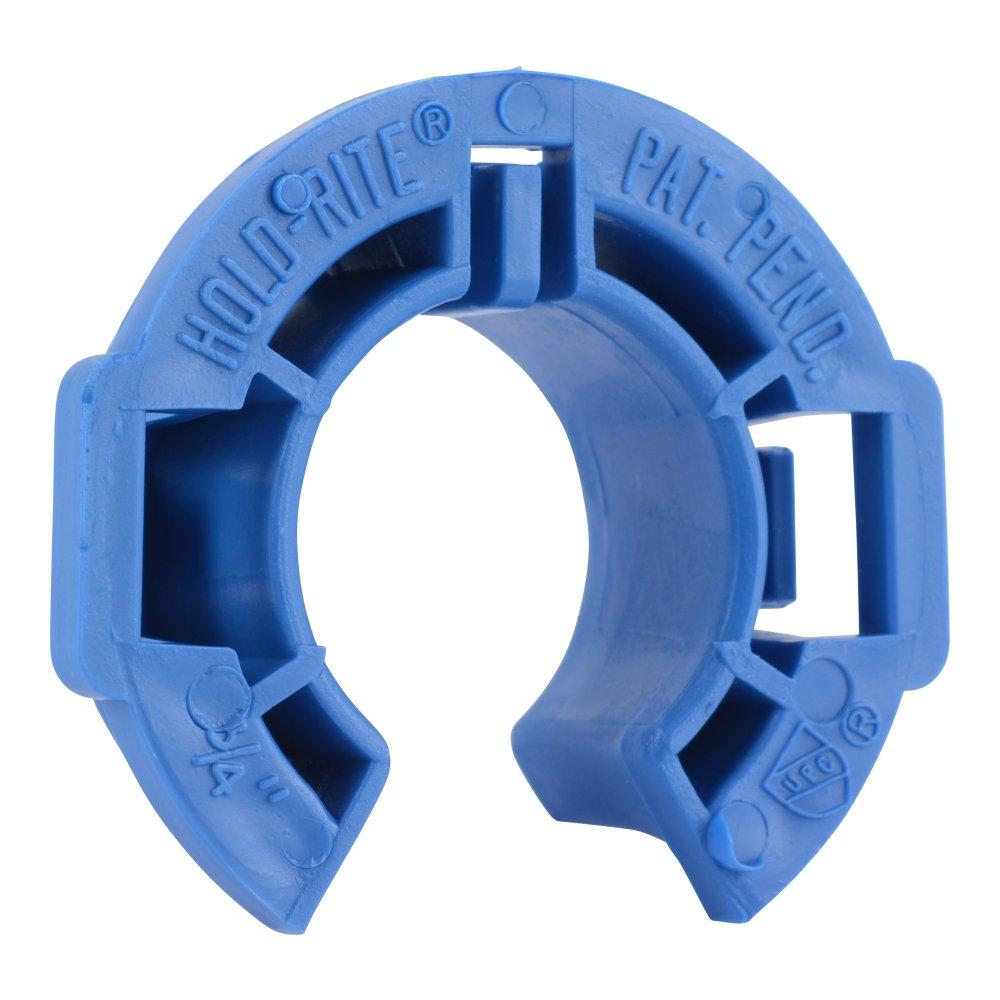

Holdrite 405-R Flame Rated Tube Isolator Insert 3/4 Inch CTS

Product Description

The HOLDRITE 405-R is a flame-rated tube isolator insert designed for through-stud applications. It is 3/4 inch CTS, with an overall size of 0.875 inch diameter. Constructed from polyethylene, it is suitable for PEX, copper, and CPVC tubing. It has a service temperature rating of 180 Deg F and meets UL 94 V-2 flame rating standards.

• Integrates with Most Holdrite Galvanized Brackets
• Meets UL 94 V-2 Standards
• Fits in 1-3/8 Inch or 1-11/32 Inch Holes

Product Highlights

Ideal for metal studs, this isolator ensures secure and compliant tubing installations in various applications.

Product Information

Standard Information

• Brand: HOLDRITE
• Manufacturer Part Number: 405-R
• Country of Origin: Domestic

Technical Specifications

• Designated Size: 3/4 Inch CTS
• Finish: Blue
• Item: Flame Rated Tube Isolator Insert
• Material: Polyethylene
• Overall Size: 0.875 Inch Diameter
• Type: Through-Stud
• Used On Item: PEX, Copper and CPVC Tubing
• Product Sub-Type: Piping Accessories
• Product Type: Pipes/Valves/Fittings
• Temperature Rating: 180 Deg F
• Standards: UL 94 V-2, IAPMO
• Size [Features]: 3/4"
• Accessories: 404-R, 406-R, 121-RLS, 121-DS, 121-L, 121-R, 121-D, 121-DLS
• MPN: 405-R
• Brand: HOLDRITE
• Height: 5/8 in
• Nominal Size: 3/4 in CTS
• Pipe Outside Diameter: 7/8 in
• Common Applications: Vertical, Tubing isolation, Through-stud isolation, Horizontal
• Approvals & Listings: UPC / IPC / IAPMO listed, UL 94 V-2
• Outside Diameter: 1-3/8 in
• Tube Size: 3/4 in CTS
• Diameter - Outside: 1-3/8 in
• Fits Pipe Size: 3/4 in
• Maximum Temperature: 180
• UL Listed: UL 94V-2
• UPC: 671119104059
• Country of Origin: United States
