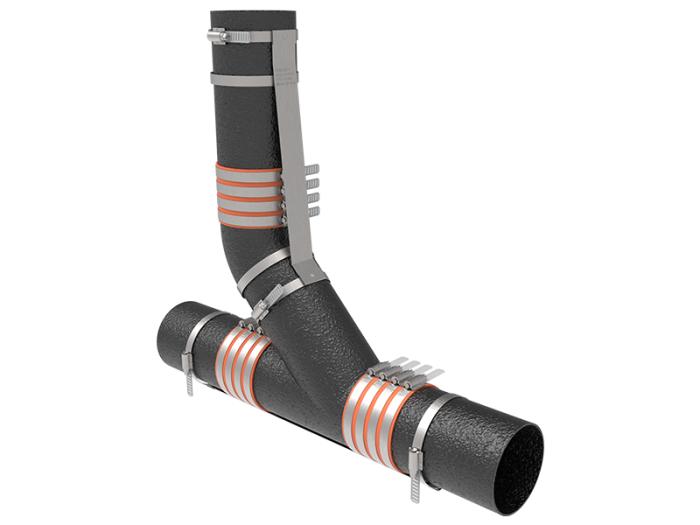

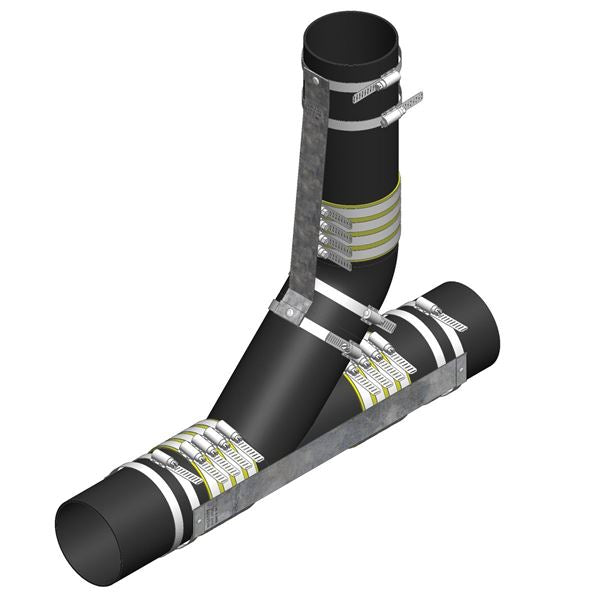

Holdrite 117-8CM Combination Midstream Position Restraint, 8 in Pipe

Product Description

The HOLDRITE 117-8CM combination midstream position restraint is designed for 8 in pipes. It is ideal for restraining hub-less cast iron soil pipes against separation during high thrust conditions. It reinforces no-hub cast iron installations and installs in minutes without on-site cutting or modifications.

• Ideal for restraining hub-less cast iron soil pipe against separation during high thrust conditions
• Engineered to meet plumbing codes, pipe manufacturers’ installation instructions, and CISPI installation handbook
• Installs in minutes

Product Highlights

This no-hub fitting restraint protects against water blow-outs and supports joints from separation. Built with stainless steel, black iron and/or galvanized components. No special tools required for installation.

Product Information

Standard Information

• Brand: HOLDRITE
• Manufacturer Part Number: 117-8CM

Technical Specifications

• MPN: 117-8CM
• Brand: HOLDRITE
• Type: No-Hub Restraints
• Category: Restraint
• Material: Stainless / Galvanized Steel
• Torque: 60 in./lbs. Minimum on band
• Thrust force resistant: test data available on request
• Application: Cast Iron Soil Pipe
• Collection: 117 Series
• End Connection 1: No Hub
• End Connection 2: No Hub
• Fits Pipe Size: 8 in
• Product Type: Fitting Restraint
• UPC: 671119803686
• Domestic / Import: Domestic
• Pipe Size: 8 in
• Manufacturer: RWC
• Manufacturer #: 117-8CM
• Strap Material: 24GA, CRS, Galvanized Steel
• Bands Material: Stainless steel body, band & screw
• Length: 16.5
• Width: 1
• Height: 1.15
