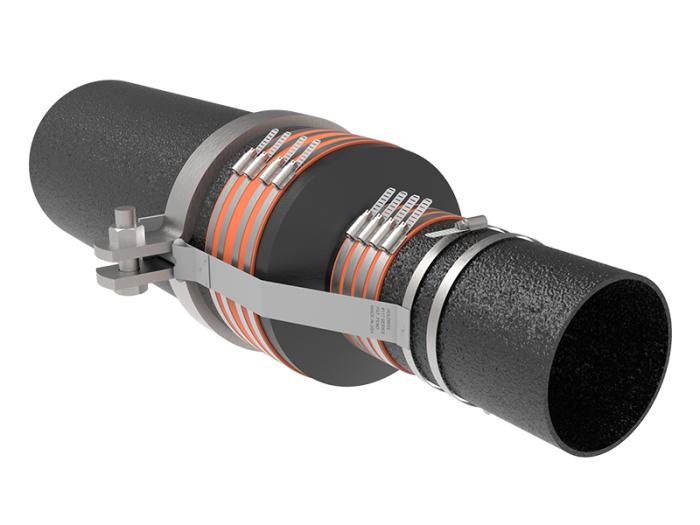

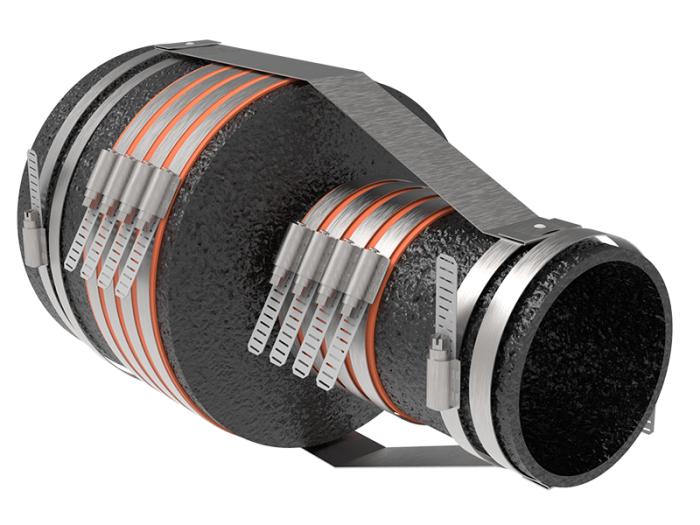

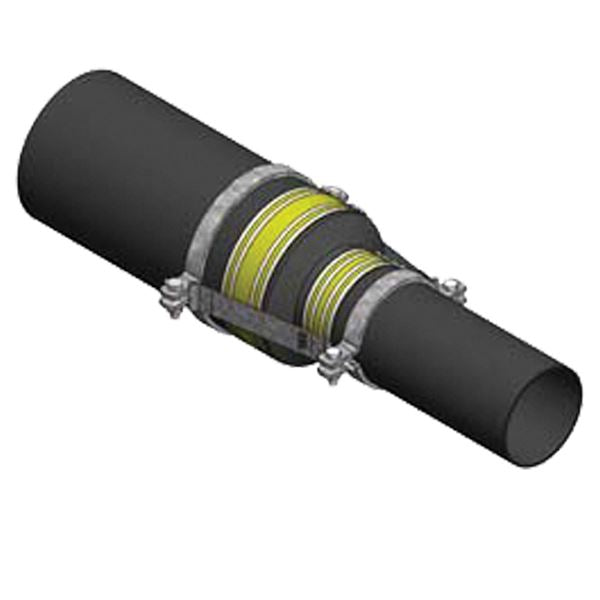

Holdrite 117-6X3R R Series Reducer Fitting Restraints (6 x 3 in)

Product Description

The HOLDRITE 117-6X3R R Series No-Hub Fitting Restraints reinforce no-hub cast iron installations of fitting reducers, following U.S. cast iron soil pipe manufacturers' instructions, CISPI Designation 301-18, 310-18, and the 2006 CISPI Installation Handbook. The 117-R (3" – 8" in size) retain reducer fittings onto adjoining piping using stainless steel bands torqued to 60 in/lbs minimum.

• Ideal for restraining hub-less cast iron soil pipe against separation during high thrust conditions
• Engineered to meet plumbing codes, pipe manufacturers' installation instructions, and CISPI installation handbook
• Installs in minutes

Product Highlights

Reinforces no-hub cast iron installations with stainless steel bands. Meets plumbing codes and CISPI installation handbook guidelines. Easy to install.

Product Information

Standard Information

• Brand: HOLDRITE
• Manufacturer Part Number: 117-6X3R

Technical Specifications

• Category: Restraint
• Material: Stainless / Galvanized Steel
• Brand: Holdrite

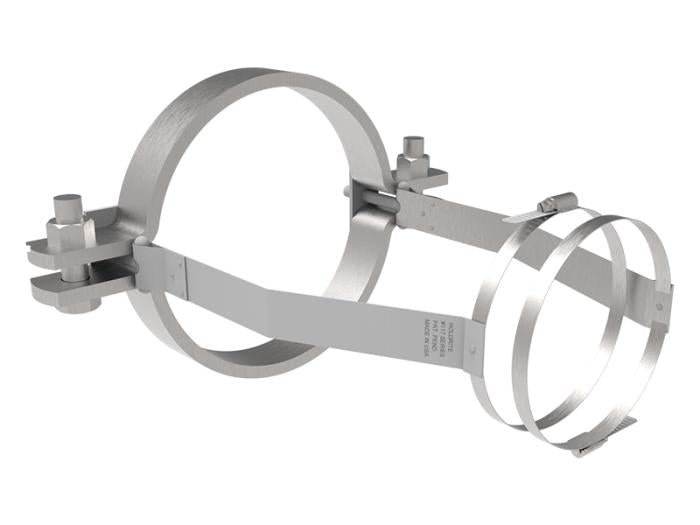

• Description: 2 galvanized steel straps, 4 stainless steel straps
• Dimensions: 6 in. x 3 in.
• Connection Type: No-Hub
• Pipe Size: 6 x 3 in
• Series: 117-R Series
• Size: 6x3
• Strap Material: 24GA, CRS, Galvanized Steel
• Bands Material: Stainless steel body, band & screw
• Torque: 60 in/lbs. minimum on bands
