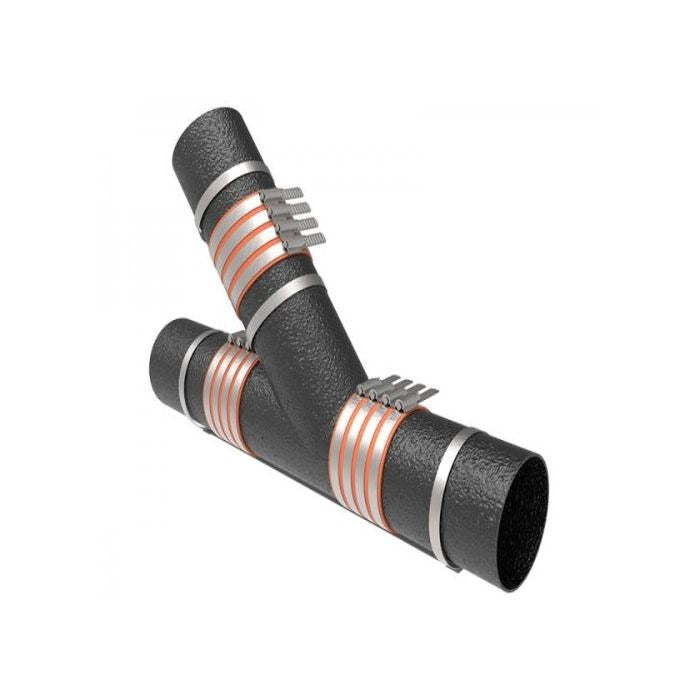

Holdrite 117-15X8WR-G No-Hub Wye Reducer Branch and Sanitary Tee Fitting Restraint (15 x 8 in)

Product Description

Holdrite 117-15X8WR-G is a no-hub fitting restraint designed for 15 x 8 in wye reducer branch and sanitary tee installations. It secures no-hub cast iron wyes using galvanized band clamps and galvanized steel components to restrain pipes against separation under high thrust and to reduce movement. The 117-WR series retains the wye in mid-span runs and for 12–15 in products uses heavy-duty steel pipe clamps and straps requiring 60 ft-lbs torque on clamp bolts.

• Galvanized steel construction with galvanized band clamps for mechanical restraint
• Designed for 15 x 8 in wye reducer branch and sanitary tee; suitable for no-hub cast iron pipe wye
• Uses heavy-duty steel pipe clamps and straps; requires 60 ft-lbs torque on pipe clamp bolts for 12–15 in products

Product Highlights

Part of the 117-WR series; engineered to CISPI Designation 301-18 and 310-18 and the 2006 CISPI Installation Handbook for no-hub cast iron wye restraint.

Product Information

Standard Information

• Brand: HOLDRITE
• Manufacturer Part Number: 117-15X8WR-G
• Country of Origin: United States
