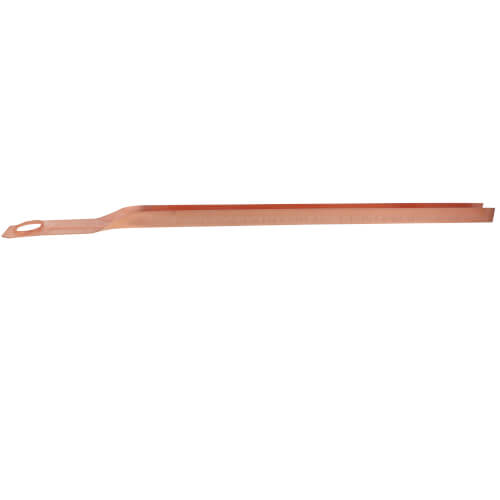

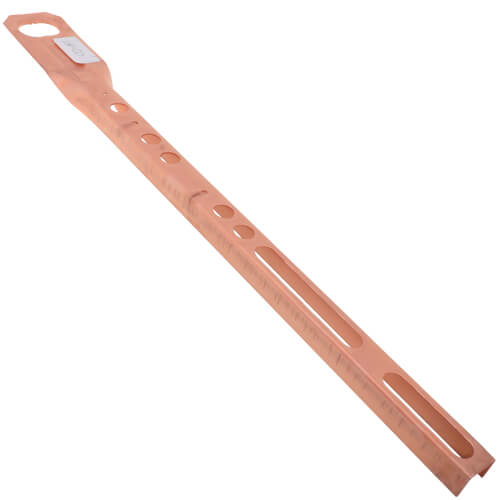

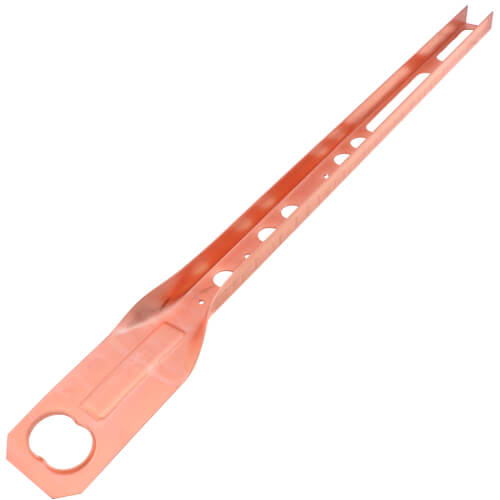

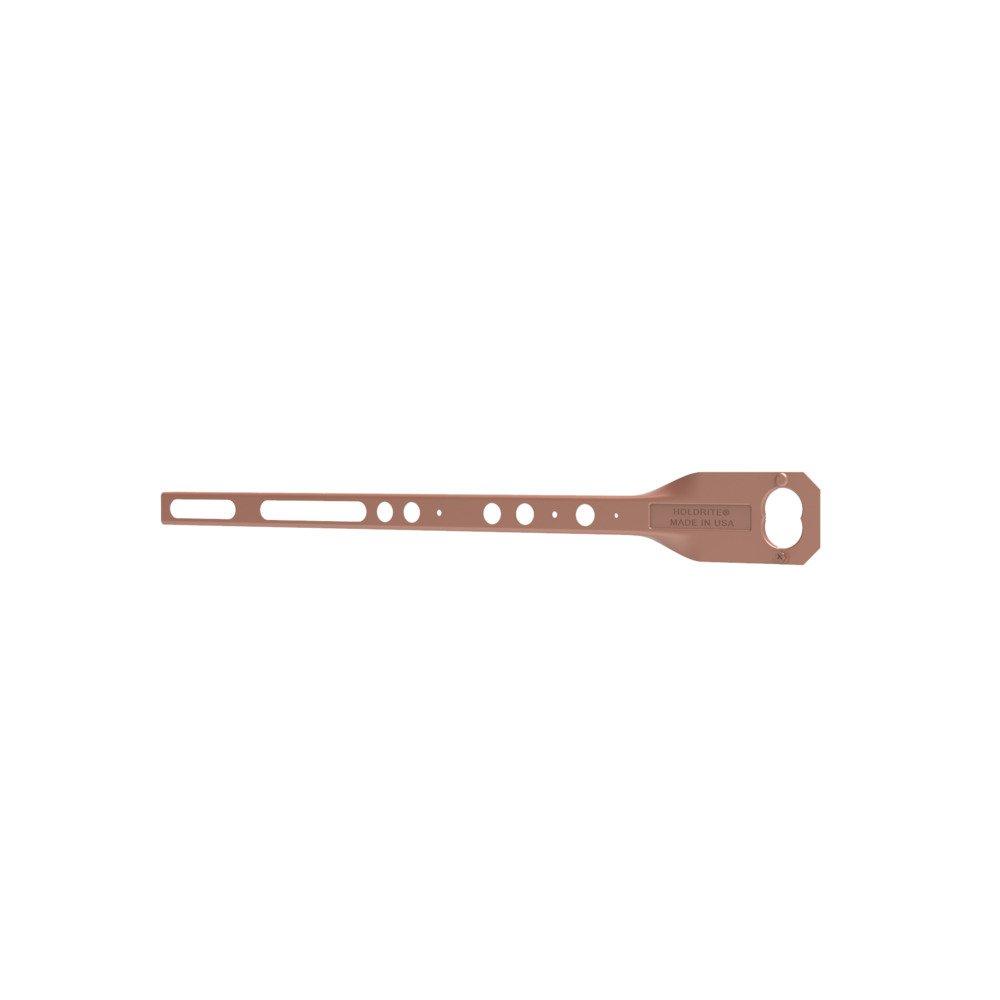

Holdrite 114-CO Series 114 1 x 23-1/4 in Steel Carrier Bracket

Product Description

The Holdrite 114-CO Series 114 is a steel carrier bracket designed to provide support for wall-hung toilet installations. It mounts directly to a four-bolt toilet carrier and positions the flush valve at eleven and one-half inches above the toilet for optimum functionality.

• Allows for rough-in before framing is complete
• Compatible with one inch flush valve support
• Provides four and three-quarters inch offset for either right or left hand installations

Product Highlights

This bracket ensures secure support for flush valves and streamlines the installation process for plumbing professionals.

Product Information

Standard Information

• Brand: Holdrite
• MPN: 114-CO

Technical Specifications

• Material: Copper-bonded steel
• Dimensions: Twenty-three and one-quarter inches by two and one-half inches
• Weight: 0.98 pounds
• Flush Valve Height: Eleven and one-half inches above toilet
• Installation Type: Wall-hung toilets
• Offset: Four and three-quarters inches
• Applications: Toilet, Pre-fab installations
