Holdrite 114-C Carrier Bracket 1 Inch CTS 23-1/4 Inch x 2-1/2 Inch

Product Description

The Holdrite 114-C is designed for supporting flush valves in toilet installations. This carrier bracket is manufactured from copper-bonded, heavy-gauge steel and mounts directly to a four-bolt toilet carrier. This configuration positions the flush valve at an optimal height of eleven and one-half inches above the toilet. Its intelligent design allows for rough-in installation prior to framing, which aids in efficient project completion.

• Compatible with one-inch CTS pipe sizes
• Offset center line rough-in measures four and one-half inches
• Suitable for prefabricated toilet installations

Product Highlights

The Holdrite 114-C carrier bracket is ideal for toilet flush valve support, providing reliable performance and durability for plumbing projects.

Product Information

Standard Information

• Manufacturer: Holdrite
• MPN: 114-C

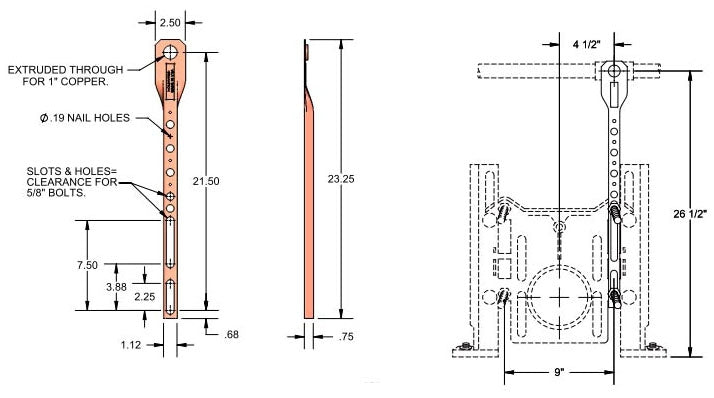

Technical Specifications

• Total Length: twenty-three and one-fourth inches
• Width: two and one-half inches
• Material: sixteenth gauge copper-bonded cold-rolled steel
• Applicable Standards: IAPMO, UPC, IPC
• Hole Size: one and one-eighth inches
• Rough-In Size: four and one-half inches
• Application: Toilet flush valve and prefabricated installations
