Holdrite 111-S Pipe Support Bracket 1/2 3/4 in Copper Steel

Product Description

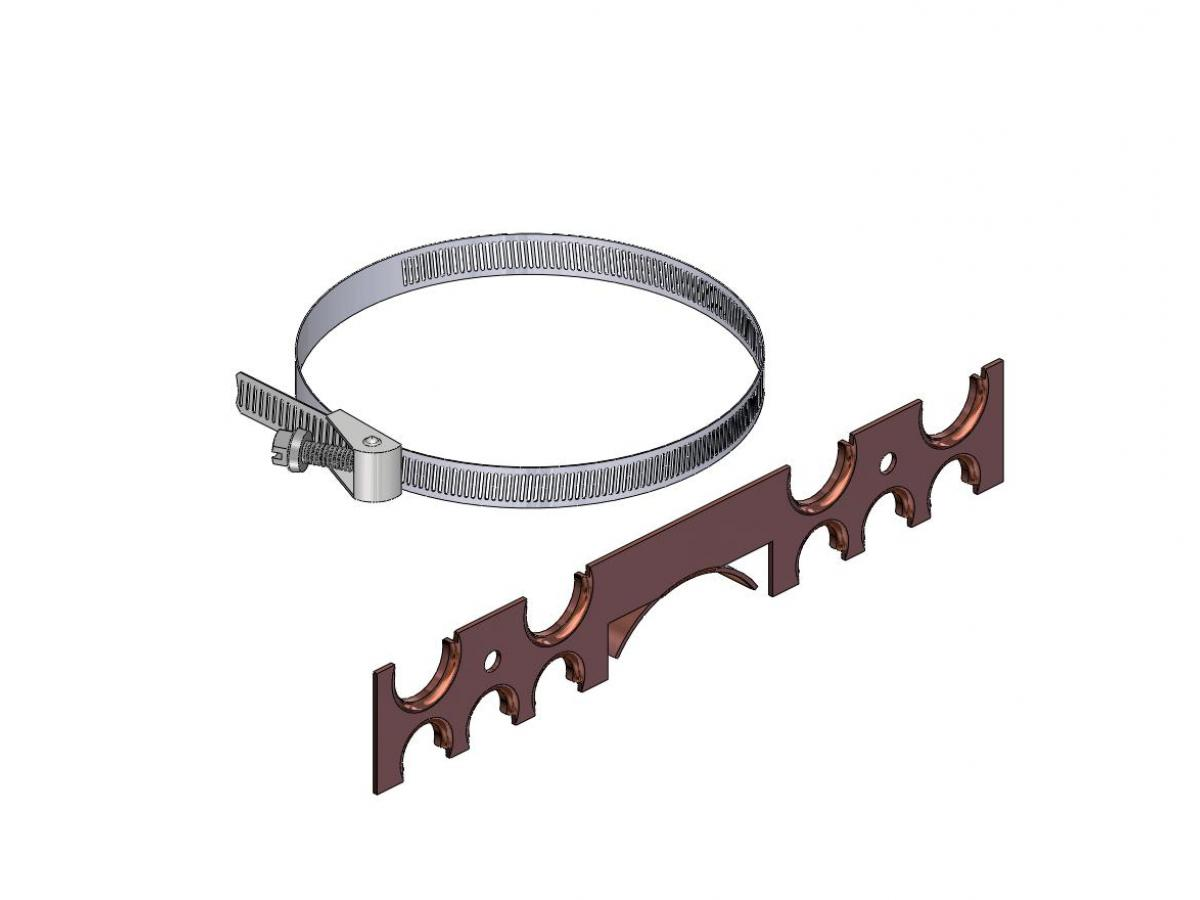

The HOLDRITE 111-S is a copper-bonded steel pipe support bracket designed to position 1/2-inch and 3/4-inch water supply pipes within standard 3.5-inch stud-bay walls. The bracket mounts to a vertical vent or waste pipe using a self-locking 4-inch stainless steel band with isolating felt, providing a secure, vibration-dampened attachment point. The 1/2-inch notches allow pipe centerline spacing of 4, 6, or 8 inches, while the 3/4-inch notches support 4-inch or 8-inch centers. Sweat soldering connects the supply pipes directly to the bracket. Licensed plumbers install this bracket during rough-in to set lavatory and fixture supply locations before wall close-up.

The HOLDRITE 111-S is used in residential and light commercial plumbing rough-in applications. It is suited for lavatories, sinks, and similar fixtures where supply stubs must be positioned accurately within a framed wall. The bracket fits inside a standard 3.5-inch wall cavity, making it compatible with typical 2x4 wood-framed construction. The self-locking stainless steel band secures the assembly to an existing vertical drain, waste, or vent pipe without requiring additional fasteners through framing.

Key Features

• Supports both 1/2-inch and 3/4-inch supply pipes from a single bracket
• Copper-bonded steel construction for direct solder compatibility
• Fits within a 3.5-inch framed wall cavity
• Self-locking 4-inch stainless steel mounting band included
• Isolating felt liner reduces contact noise and corrosion risk at the strap
• 1/2-inch notches provide 4-inch, 6-inch, or 8-inch centers; 3/4-inch notches provide 4-inch or 8-inch centers

Compatibility

Designed as an OEM-style rough-in bracket for residential and light commercial plumbing applications requiring supply pipe positioning within standard 3.5-inch stud-bay walls.

Installation Notes

Installation is performed by a licensed plumber during the rough-in phase before wall covering is applied. Shut off the water supply and depressurize the line before beginning work. When soldering the supply pipes to the bracket, heat the pipe rather than the bracket to avoid damaging the copper bonding. Secure the stainless steel band firmly to the vertical vent or waste pipe before soldering to ensure the bracket holds position during the sweat process.

Technical Specifications

• Pipe Sizes Supported: 1/2 inch and 3/4 inch
• Wall Cavity Fit: 3.5 inches
• Pipe Centers (1/2 inch notches): 4 inches, 6 inches, or 8 inches
• Pipe Centers (3/4 inch notches): 4 inches or 8 inches
• Mounting Band Length: 4 inches stainless steel self-locking
• Material: Copper-bonded steel
• UPC: 671119111194

Standard Information

• Brand: HOLDRITE
• Manufacturer Part Number: 111-S
