Product Description

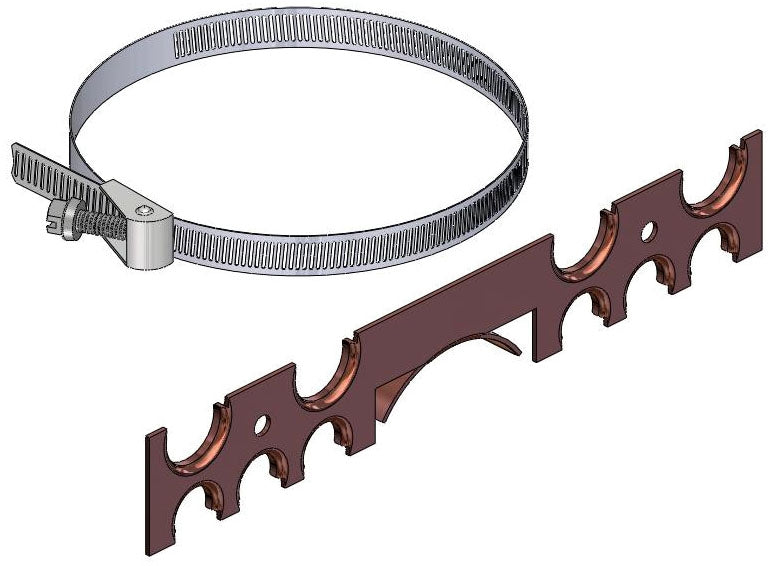

The Holdrite 111-S is a copper-bonded steel bracket designed to support 1/2 inch and 3/4 inch pipes. This bracket is suited for both vertical and horizontal installations. It can directly mount to waste or vent pipes with a self-locking stainless steel band, ensuring secure positioning.
- Supports 1/2 inch tubing on 4, 6, or 8 centers, and 3/4 inch tubing on 4 or 8 centers.
- Includes self-adhesive isolating felt and stainless steel clamp for easy installation.
- Constructed from 16 gauge cold-rolled steel for durability and strength with a load rating of 25 pounds.
Product Highlights
This bracket allows easy pre-fabrication at job sites or in the shop. It meets IAPMO, UPC, and IPC standards.
Product Information
Standard Information
-
Brand: Holdrite
-
Type: Pipe Support Bracket
Technical Specifications
-
Material: 16 Gauge Copper Bonded Cold Rolled Steel
-
Pipe Size: 1/2 Inch, 3/4 Inch CTS
-

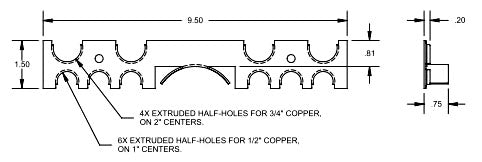

Overall Dimensions: 9-1/2 Inch Length x 1-1/2 Inch Width
-
Number of Holes: 10
-
Hole Center Distance: 1 Inch (1/2 Inch Tubing), 2 Inch (3/4 Inch Tubing)
-
Load Rating: 25 Pounds
-
Applicable Standards: IAPMO, UPC, IPC
-
Inclusions/Features: Stainless Steel Band, Self-Adhesive Isolating Felt
