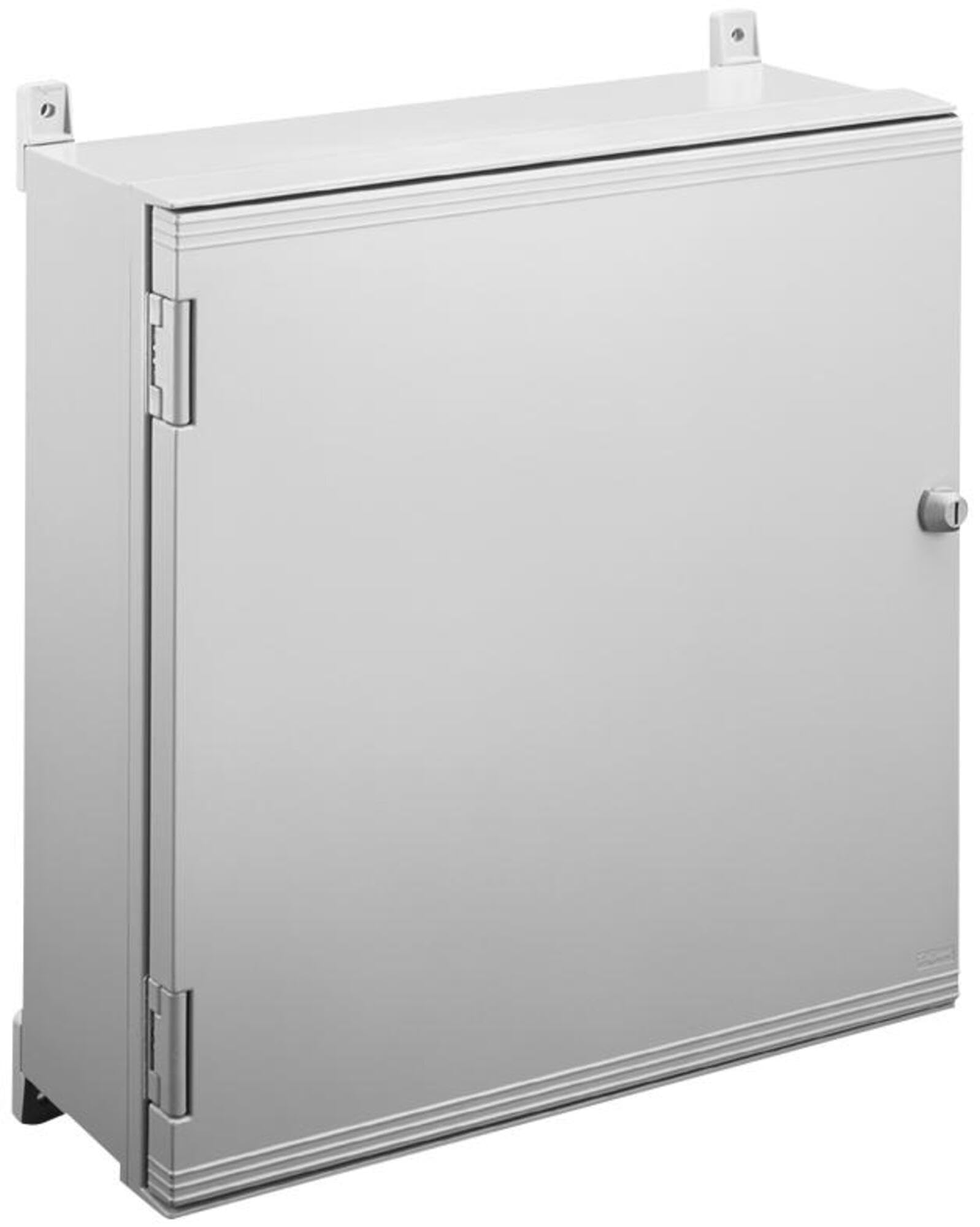

Hoffman UU504020 NEMA 4X Enclosure/Solid Door 513 mm x 413 mm x 228 mm

Product Description

The HOFFMAN UU504020 is a NEMA 4X enclosure with a solid door, designed to provide outstanding protection against corrosion and the elements. Constructed from compression-molded fiberglass, it offers excellent temperature and chemical resistance, along with high-impact resistance. The enclosure is easily punched, drilled, filed, or sawed for modifications.

• Made from compression-molded fiberglass for temperature and chemical resistance.
• Features a seamless foam-in-place gasket for a water-tight and dust-tight seal.
• Compliant with NEMA/EEMAC Type 3, 3R, 4, 4X, 12, and 13 standards.

Product Highlights

This Hoffman Ultrx fiberglass enclosure offers a robust and aesthetically pleasing solution for protecting electrical components in demanding environments.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: UU504020
• Country of Origin: USA

Technical Specifications

• Material/Finish: Fiberglass
• Enclosure Type: Type 4X
• Category: Boxes, Enclosures, Racks
• Boxes: Boxes
• Mfr: Hoffman Enclosures, Inc.
• Part Status: Active
• Color Coding: RAL 7035
• Cover Type: Hinged
• IP Rating: IP66
• Mounting Type: Wall
• Standard: CSA File No. 42186: Type 3, 3R, 4, 4X, 12, 13,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E619977,Enclosure Flammability Evaluated Per UL 508A,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,Window Flammability Evaluated Per UL 508A
• Type: Single Lock, Single Door
• Brand: HOFFMAN
• Sub Brand: UltrX™
• Color: Gray
• Finish: Smooth Matte
• Depth: 220 mm
• Height: 496 mm
• Length: 24.7 Inch
• Thickness: 3.8 mm
• Width: 396 mm
• Body Material Thickness: 0.15 in
• Closure Method: 1/4-Turn Latch
• Compatible Panel Model Number: A20P16; A20P16G
• Cover Closure Type: Hinged
• Cover Style: Solid
• Enclosure Material: Fiberglass
• Environment: Washdown and Corrosion Resistant
• Gasket Material: Seamless Foam-In-Place
• Includes: Mounting Bracket
• Knockouts: Not Included
• NEMA Enclosure Rating: 4; 4X; 12; 13
• Nominal Depth: 9 in
• Nominal Height: 20 in
• Nominal Width: 16 in
• Overall Depth: 8.98 in
• Overall Height: 20.2 in
• Overall Width: 16.26 in
• Panel Height: 17 in
• Panel Width: 12.99 in
• Product Type: Ultrx Fiberglass Enclosure
• UNSPSC: 39121301
