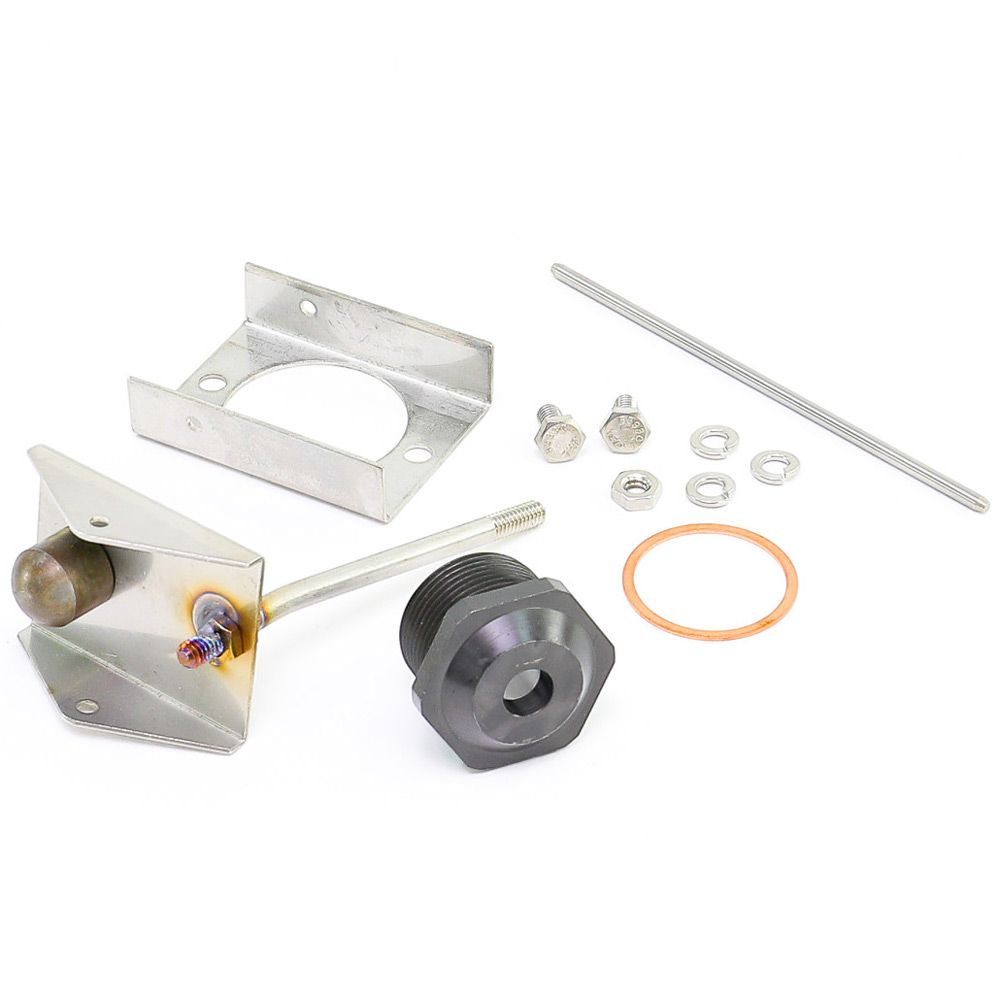

Hoffman Specialty 604033 Lever & Valve Assembly for 2 inches FT015C

Product Description

The Hoffman Specialty 604033 is a lever and valve assembly designed for 2" FT015C traps. Float mechanisms allow condensate to drain from the trap through lever and seat operation. The seat is screwed into the outlet port within the trap. The float's weight keeps the lever down, maintaining the seat closed when steam is present. As steam cools and becomes liquid, the trap fills, causing the float to rise and open the seat for condensate drainage.

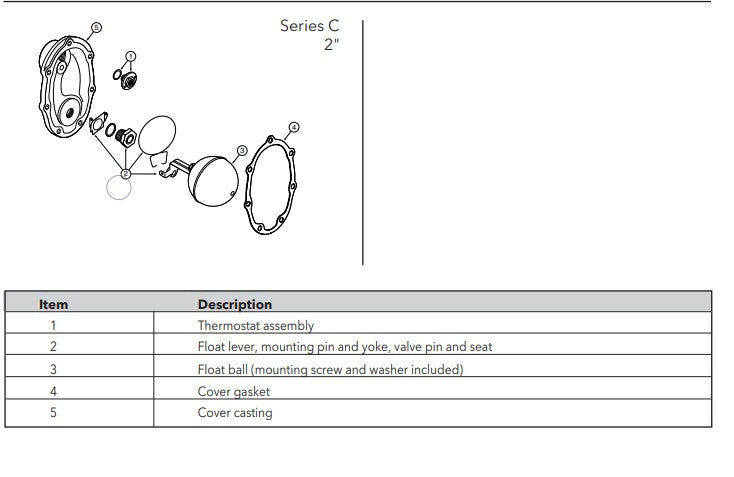

• Mechanism assembly for model 2" FTO15C F&T traps
• Float mechanisms allow condensate to drain from the trap by a lever and seat operation
• Allows condensate to drain from the trap by a lever and seat operation

Product Highlights

The Hoffman Specialty lever and valve assembly is designed for use with FTO15C F&T traps, facilitating efficient condensate drainage.

Product Information

Standard Information

• Brand: HOFFMAN SPECIALTY
• Manufacturer Part Number: 604033

Technical Specifications

• Item Number: 604033
• Brand: Hoffman Specialty
• Type: Accessory
• MPN: 604033
• Steam Trap Series Repaired: Series C
• Steam Trap Model Repaired: FTO15C
• UPC: 751875033678
• Condition: New
