Hoffman Specialty 404270 Ft015i-3 In-Line F&t Steam Trap 15 Psi 3/4 inches Npt

Product Description

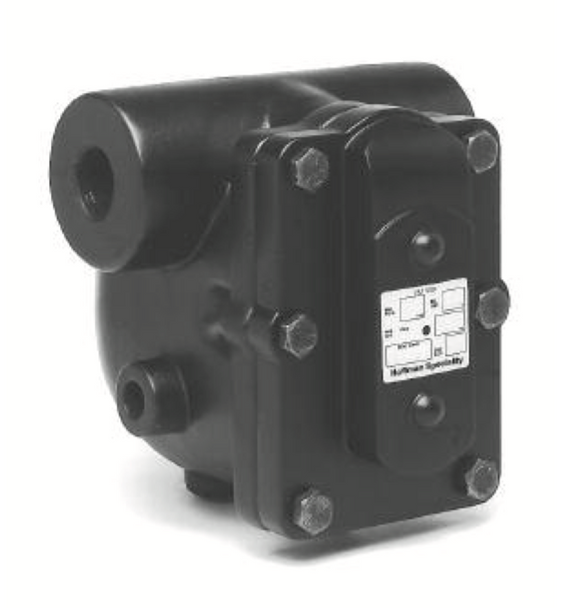

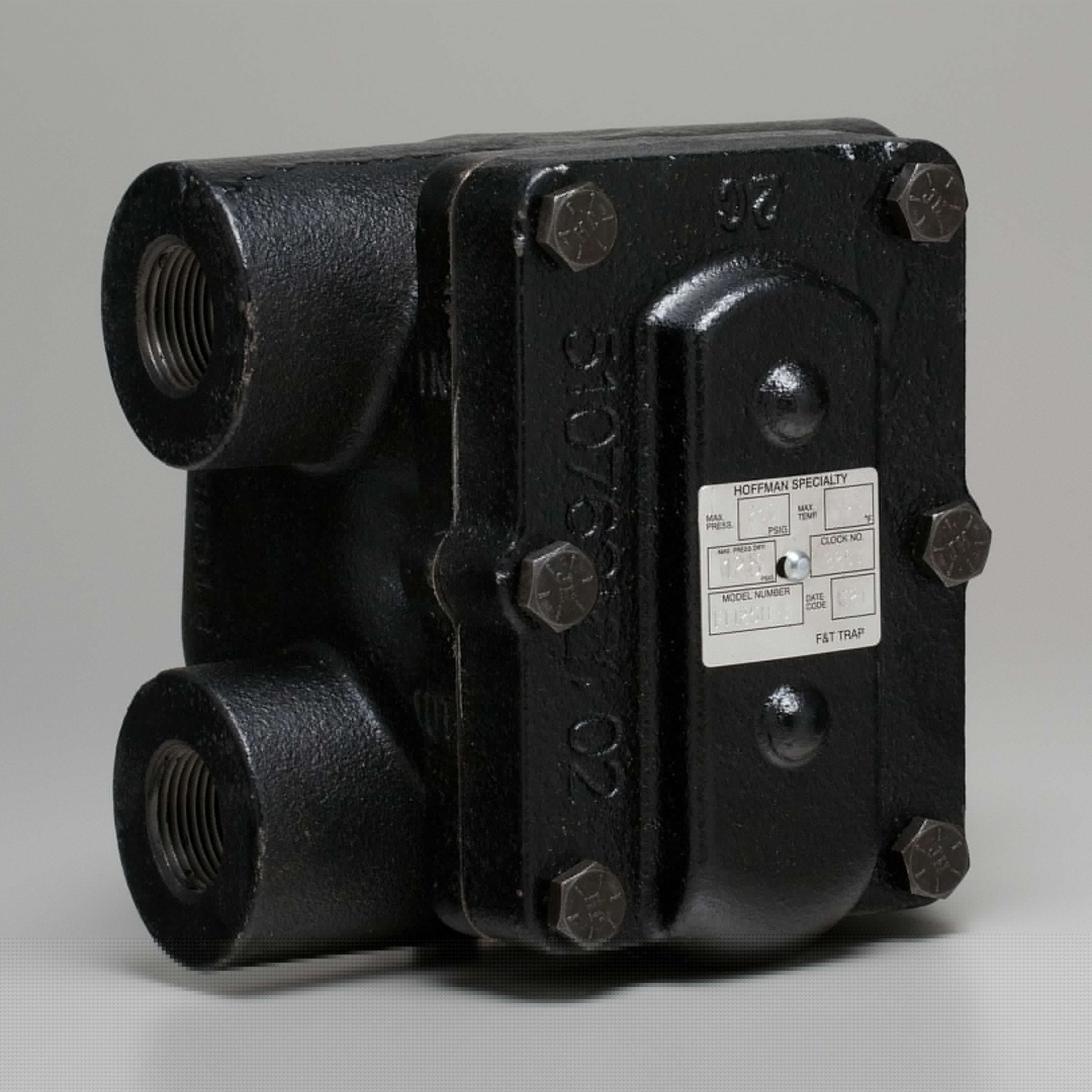

The Hoffman Specialty 404270 model FT015I-3 is an in-line float and thermostatic steam trap with 3/4" NPT threaded connections. The maximum working pressure is 15 psi. It features a straight-through piping and continuous drainage, and is designed for low, medium, and high pressure steam mains. The in-line piping design provides complete drainage while minimizing vertical height change.

• 3/4" trap connection
• In-line horizontal configuration
• Stainless steel valve trim, floats and air vents increase service life.

Product Highlights

This steam trap is designed for commercial and industrial applications such as air make-up coils, cooking kettles, and unit heaters.

Product Information

Standard Information

• Brand: HOFFMAN SPECIALTY
• Manufacturer Part Number: 404270

Technical Specifications

• Item Number: 404270
• Brand: Hoffman Specialty
• Model: FT015I-3
• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 3/4"
• Steam Trap Mounting: In-Line Horizontal
• Max Pressure: 15 psi
• Connection Type: NPT
• Nominal Size: 3/4 in
• Pressure Rating: 175 psi
• Temperature Rating: 406 deg F
• End Style: NPT
• Type: In Line
