Hoffman Specialty 404220 Bear Trap Series H Float & Thermostatic Steam Trap 15 PSI 1-1/4 FT015H-5

Product Description

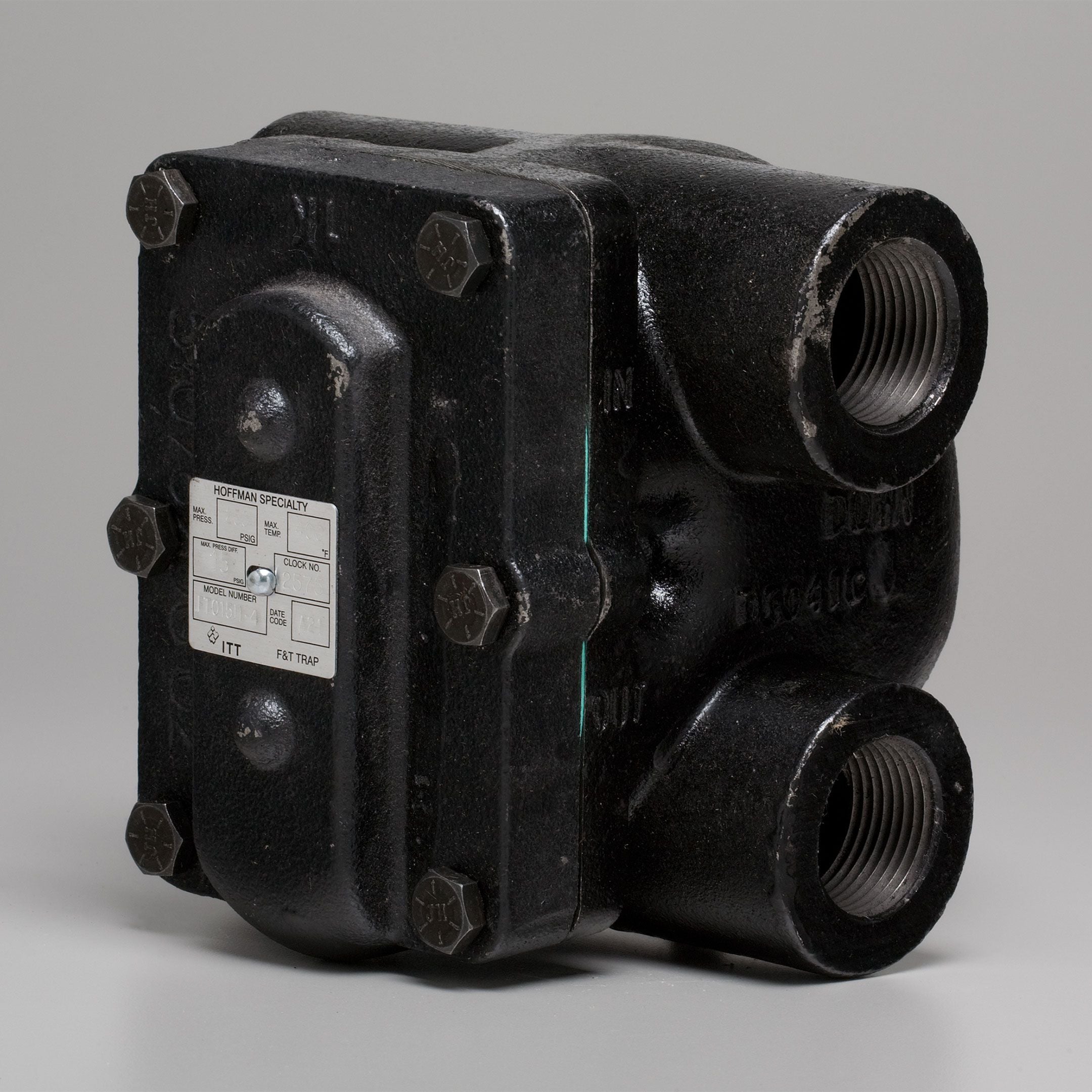

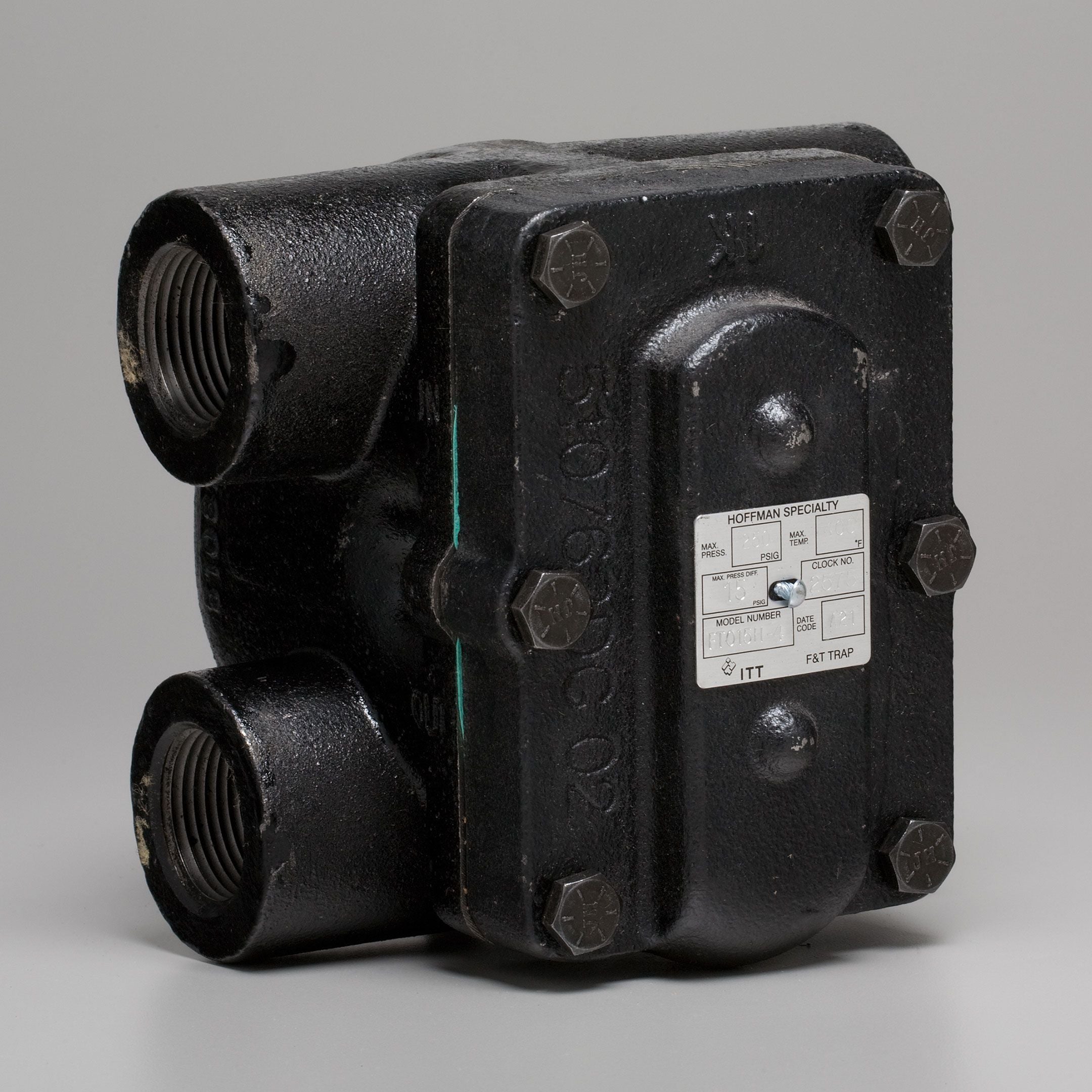

The Hoffman Specialty float and thermostatic steam trap, model 404220, features a one and one-fourth inch connection in a same side, H-pattern configuration. This design allows steam to enter from either side of the trap, enabling condensate discharge from either side as well. The trap is made of cast iron and has a maximum operating pressure of fifteen psi.

• Designed for continuous drainage in steam systems
• Ideal for modulating pressures and varying loads
• Capacity of 2,340 pounds of steam per hour

Product Highlights

This trap serves as an effective solution for systems requiring air venting and non-condensable gases management. It is specifically suitable for heat exchange equipment, facilitating efficient operation under high demand conditions.

Product Information

Standard Information

• Brand: Hoffman Specialty
• MPN: 404220

Technical Specifications

• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 1-1/4 inches
• Steam Trap Mounting: H-Pattern, Same Side
• Max Pressure: 15 psi
• Weight: 13.83 pounds
