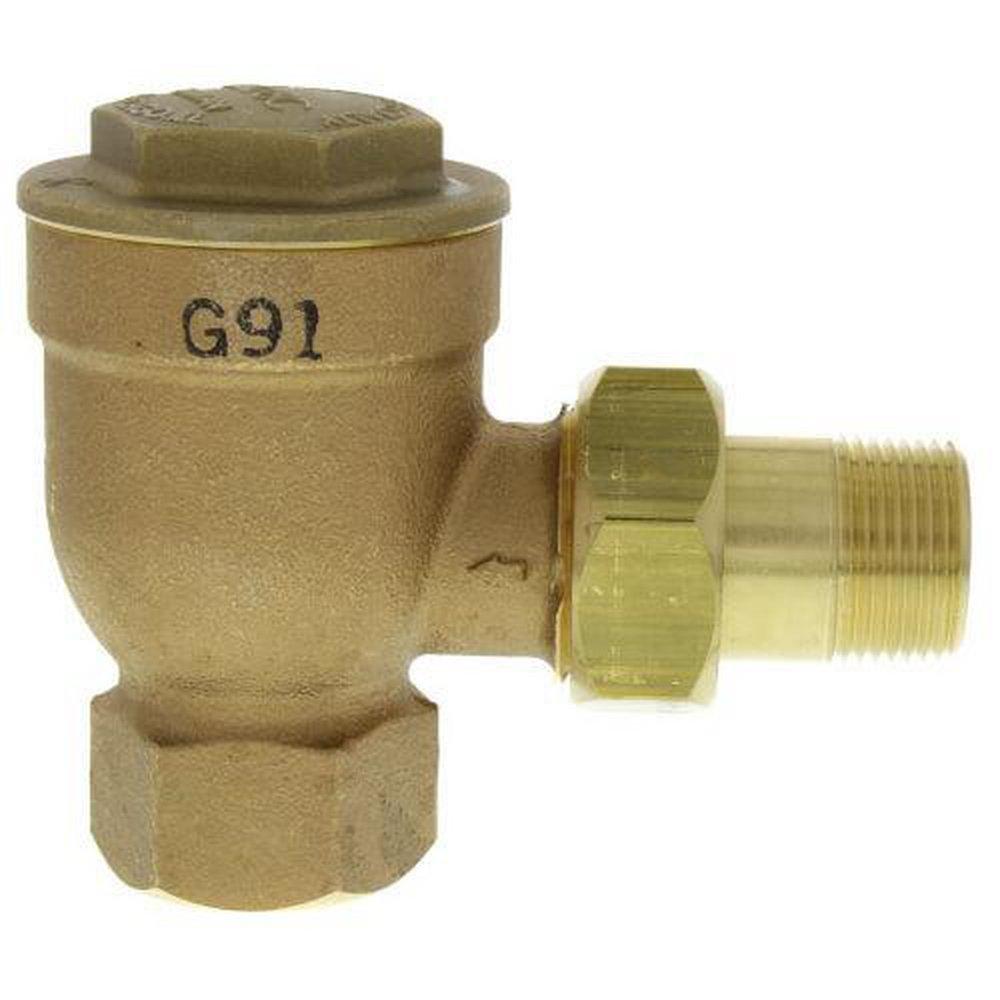

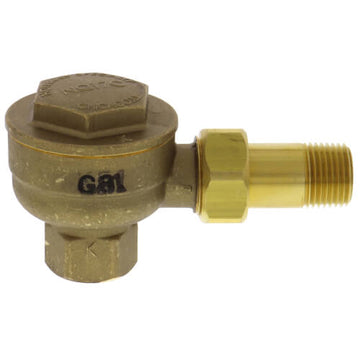

Hoffman Specialty 402004 Series 8C 3/4 In. 353F 125 Psig Steam Trap

Product Description

The Hoffman Specialty Series 8C steam trap, MPN 402004, is designed for efficient steam management in heating systems. This thermostatic steam trap is ideal for applications requiring a connection size of three-quarters of an inch. It operates effectively under a maximum pressure of one hundred twenty-five psig and can handle capacities up to four thousand two hundred pounds per hour.

• Connection Size: 3/4 inches
• Body Material: Bronze
• Steam Trap Type: Thermostatic

Product Highlights

This steam trap is essential for maintaining optimal steam efficiency. It features a straight pattern design and is suitable for low pressure heating systems. The thermostatic element expands when steam is present, sealing the trap and contracts with cooler air or condensate, allowing for efficient draining.

Product Information

Standard Information

• Brand: Hoffman Specialty
• MPN: 402004

Technical Specifications

• Model: 8C-S-3-125
• Max Pressure: 125 psi
• Weight: 2.06 lbs
• Steam Trap Connection Size: 3/4 inches
• Steam Trap Mounting: Straight
