Hoffman PMKPF Additional Mounting Hardware for Subpanel

Product Description

The HOFFMAN PMKPF is additional mounting hardware for subpanels, designed for applications needing more support in the center of a ProLine subpanel. It is required if the enclosure will be tipped during transit or if the panel isn't at the bottom of the enclosure on the glide blocks.

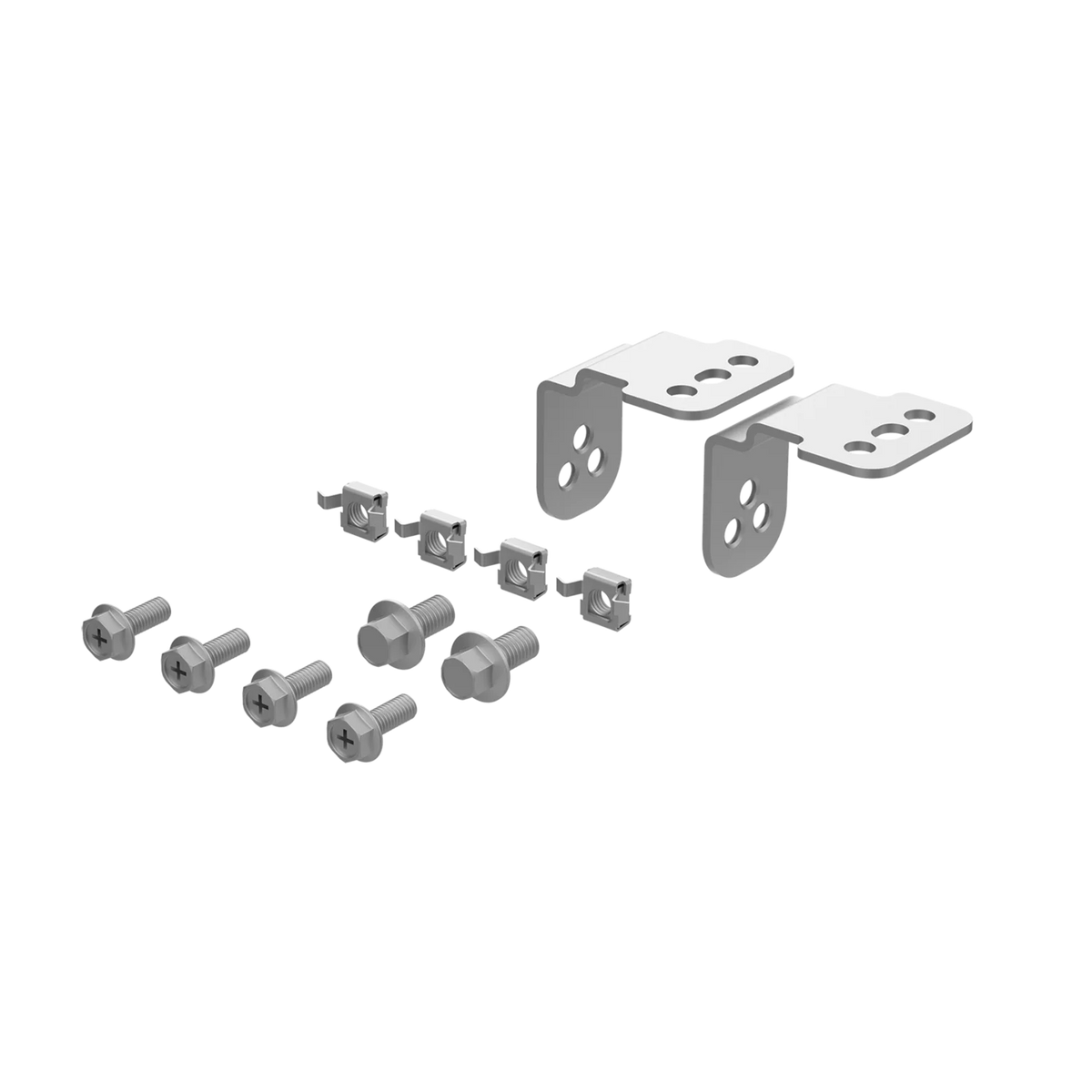

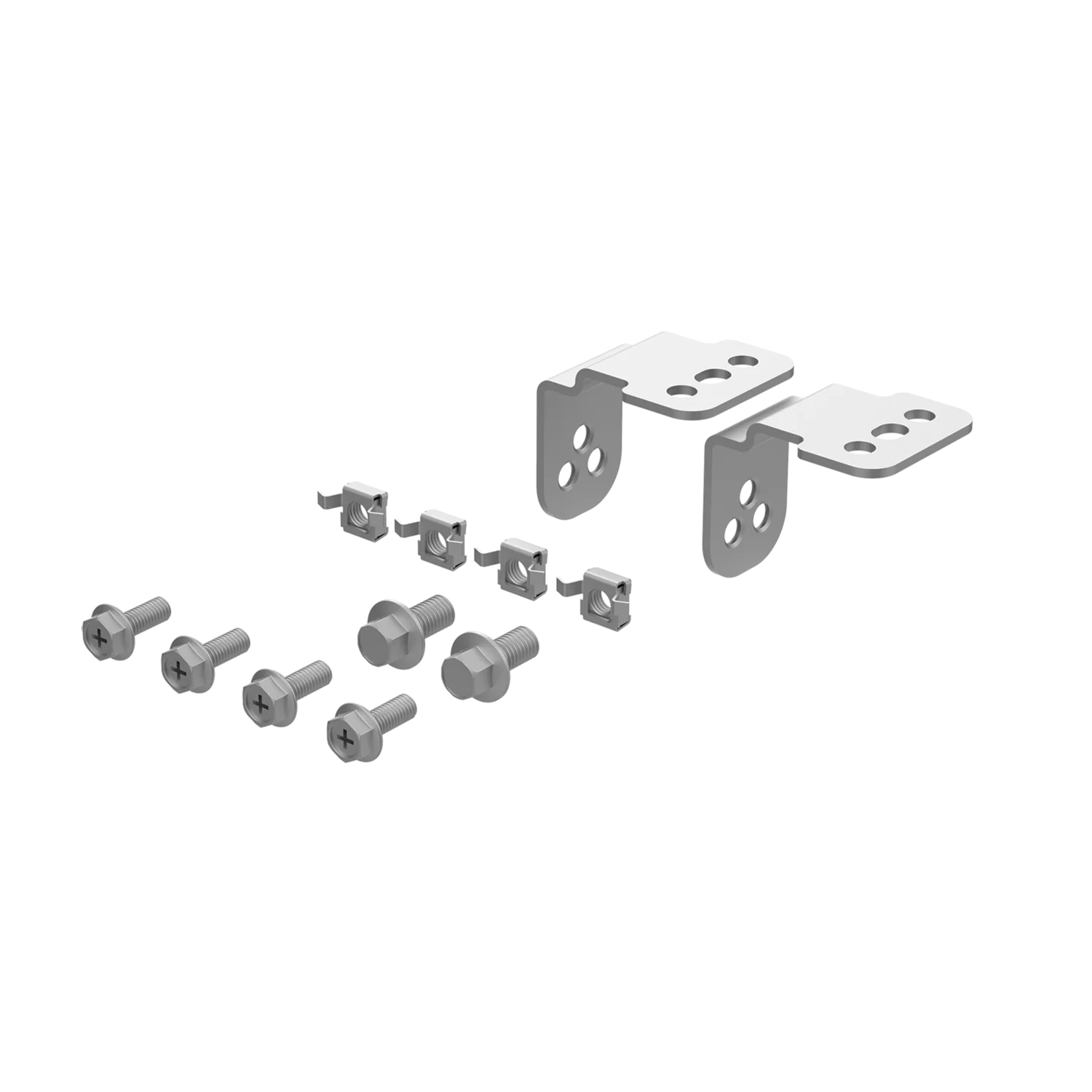

• Plated steel bracket secures to center of full-height mounting subpanel and frame or grid strap, providing additional support
• Required if the enclosure will be tipped in transit or if the panel is not located at the bottom of the enclosure on the glide blocks.
• RoHS/Reach Compliant

Product Highlights

Additional mounting hardware for ProLine subpanel enclosures, ensuring stability during transit and operation.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: PMKPF
• Country of Origin: United States

Technical Specifications

• Article Number: 89280
• Material: Mild Steel
• Finish: Plated
• Thickness: 12ga
• UPC: 783510892807
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: P20
• Brand: Hoffman
• Model: PMKPF
• MPN: PMKPF
• Country of Origin: United States
• UNSPSC: 43223300
• Used On: ProLine Subpanel Enclosure
• Item: Mounting Hardware
• Type: Side Mounting Hardware
• ECCN: EAR99
• Use With: PROLINE Frames
• Height: 1.69 in.
• Depth: 2.19 in.
• Width: 1.77 in.
• Manufacturer Part Number: PMKPF
• UPC Code: 78351089280
• Application: PROLINE subpanels are designed to provide maximum panel depth, panel size and ease of installation. Full subpanels slide into the frame on nylon glide blocks, which support the entire weight of the subpanel., All necessary mounting hardware is included
• Series: P20
• Special Features: In addition, 3-row grid straps are required for installation unless the panel is in the rearmost position This is required if the enclosure will be tipped in transit or if the panel is not located at the bottom of the enclosure on the glide blocks
• Sub_Brand: Hoffman
