Hoffman PF1060 Front/Rear Plinths 100x598x63mm

Product Description

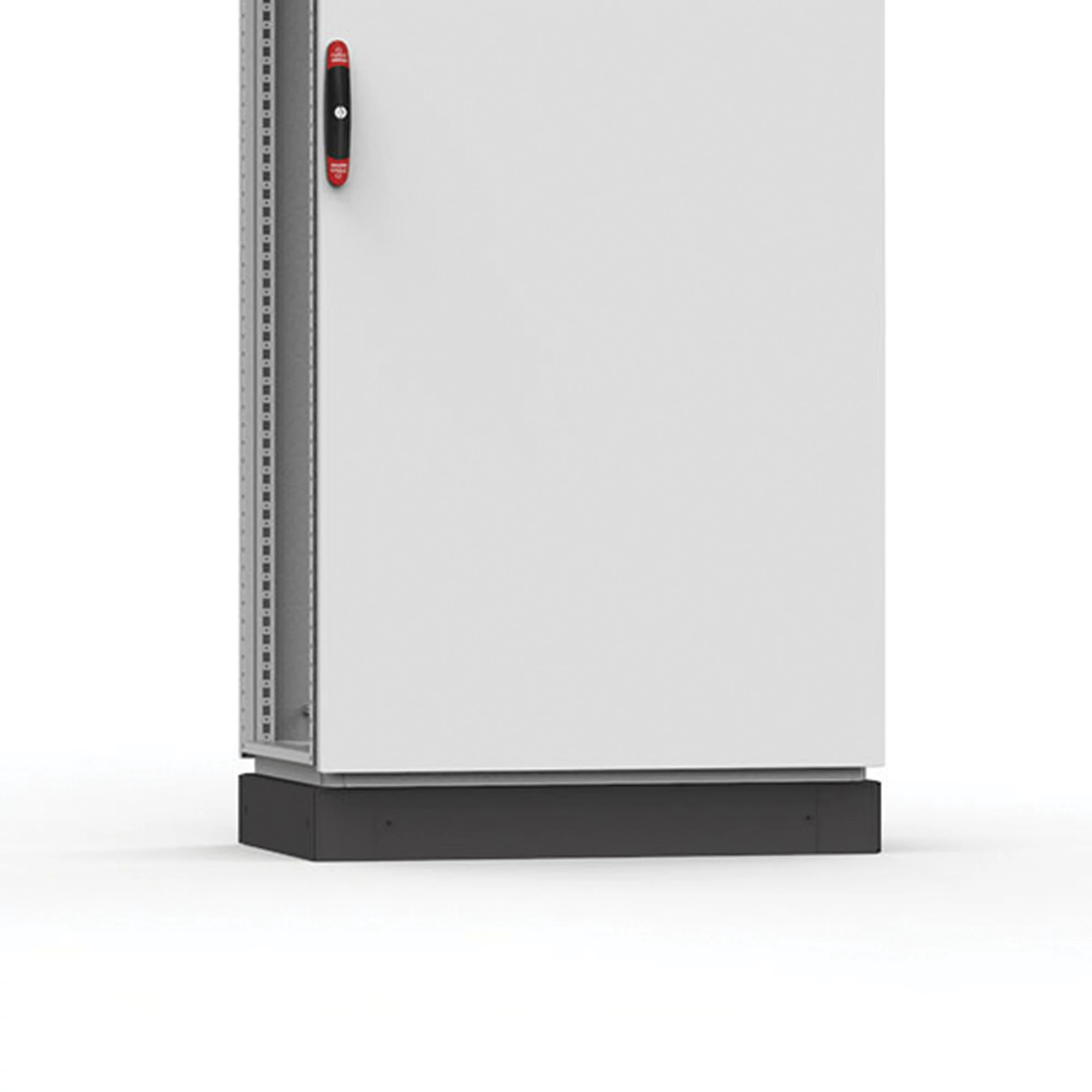

The HOFFMAN PF1060 Front/Rear Plinths allow for cabling without restrictions and create extra space under the enclosure. The plinth is mounted underneath the enclosure to provide extra space between the installation floor and the enclosure's bottom plates. Installing cables into the enclosure can be done easily as the plinth creates extra space below the enclosure.

• Painted steel plinth with front and rear removable panels for mild steel floor standing enclosures.
• The plinth is mounted underneath the enclosure to provide extra space between the installation floor and the enclosure's bottom plates, this space is accessible by removing the front or rear panel.
• Installing cables into the enclosure can be done easily as the plinth creates extra space below the enclosure.

Product Highlights

The front and rear plinth allows for cabling without any restrictions. Installing cables is made easy as the plinth creates extra space underneath the enclosure.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: PF1060
• Country of Origin: Romania

Technical Specifications

• Article Number: PF1060
• Height: 3.94in
• Width: 23.62in
• Depth: 2.46in
• Enclosure Material: Mild Steel
• Product Family: Free-Standing
• Material: Mild Steel
• Finish: Powder Coated
• Color: Umbra Gray
• Color Code: RAL 7022
• Thickness: 1.5 mm
• Package Quantity: 1
• Weight: 4.57lb
• UPC: 783510525644
• EAN: 8713574056107
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• ECCN: EAR99
• UNSPSC: 39121334
• Type: IEC Enclosure Accessories
• Brand: nVent Hoffman
• 12-Digit UPC: 783510525644
• Product UPC: 78351052564
• Length: 24 Inch
