Hoffman PEK460NDH Electrical Interlock 460VAC Fits Door Bar Steel

Product Description

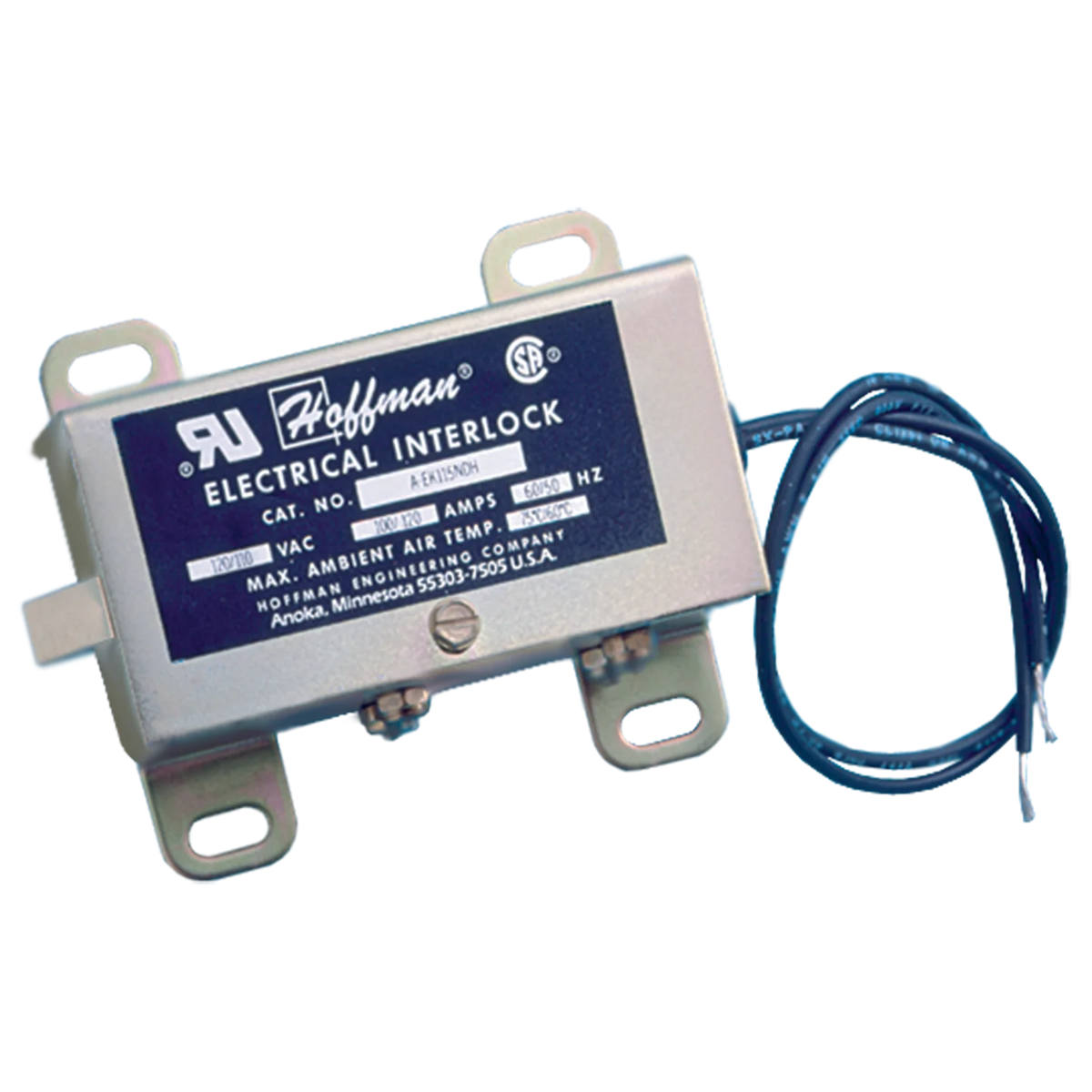

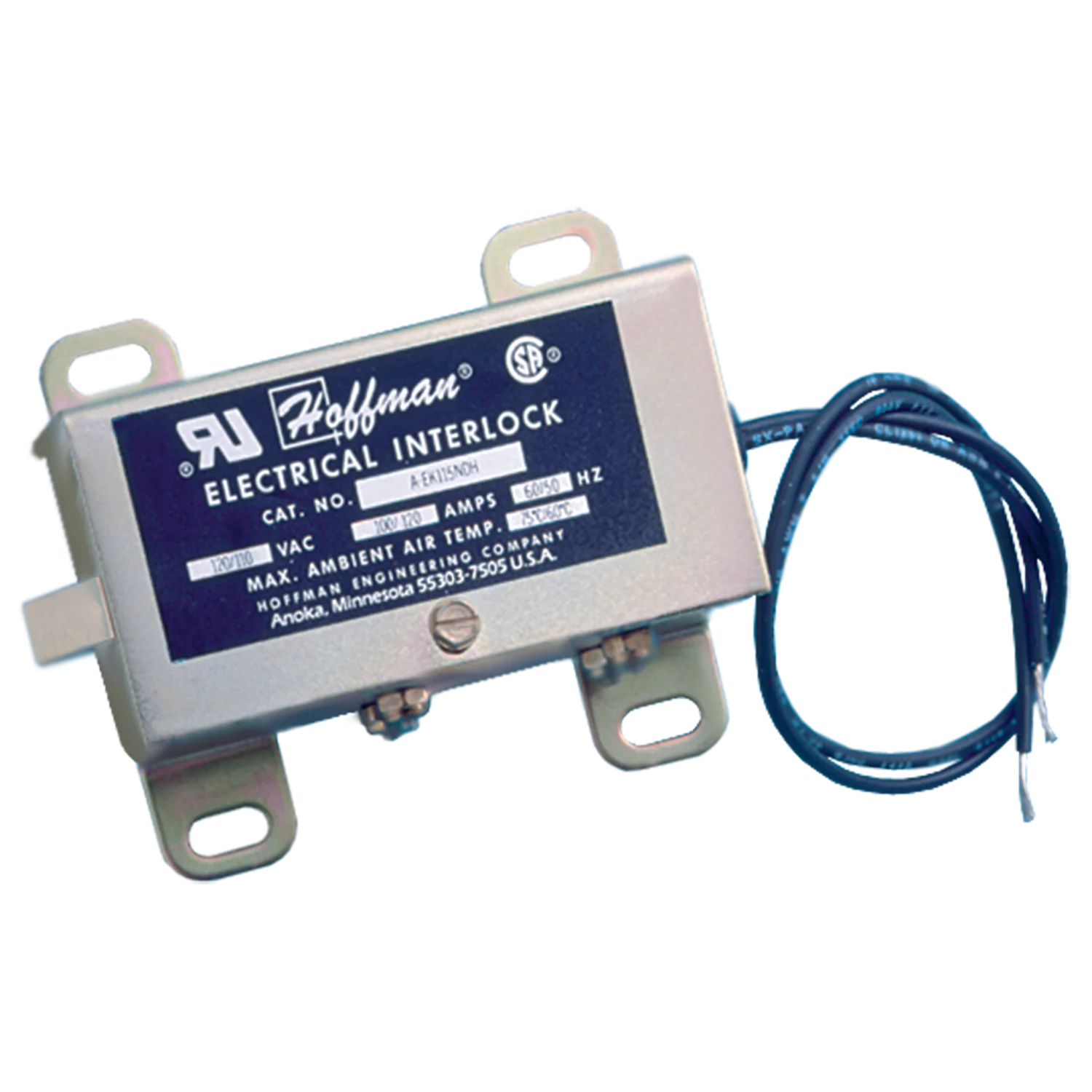

The HOFFMAN PEK460NDH electrical interlock provides positive internal safety lockout on electrical enclosures while the equipment is energized. It is designed to fit most HOFFMAN custom enclosures that incorporate a door latching mechanism. The interlock mounts on a bracket attached to the door bar inside the enclosure door.

• Solenoids are rated for continuous duty and will stand up under heavy industrial use
• Packaged complete with a solenoid assembly, mounting bracket and instructions for field installation
• Door handles and latching mechanisms are not included

Product Highlights

The Hoffman PEK460NDH interlock has a rugged steel construction with a plated finish. It is suitable for use with ProLine DD door bars.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: PEK460NDH

Technical Specifications

• Article Number: 23009
• Material: Mild Steel
• Finish: Plated
• A @ 480 V/60 Hz Normal Inrush: 0.025 / 0.16A
• A @ 440 V/50 Hz Normal Inrush: 0.030 / 0.18A
• UPC: 783510230098
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: P20DC
• Brand: nVent HOFFMAN
• Manufacturer Part Number: PEK460NDH
• Overview: Electrical Interlock
• Series: P20DC
• Suitable For Use With: ProLine DD Door Bar
• Specifications: 480 VAC, 60 Hz, 0.025/0.16 A
• Application: For providing positive internal safety lockout on electrical enclosures while the equipment is energized
• Includes: Solenoid Assembly, Mounting Bracket and Instructions
• (Door Component) Finish: Steel
• Component: Interlock
• Door Interlock Voltage: 480 Volt
• Manufacturer: Hoffman
