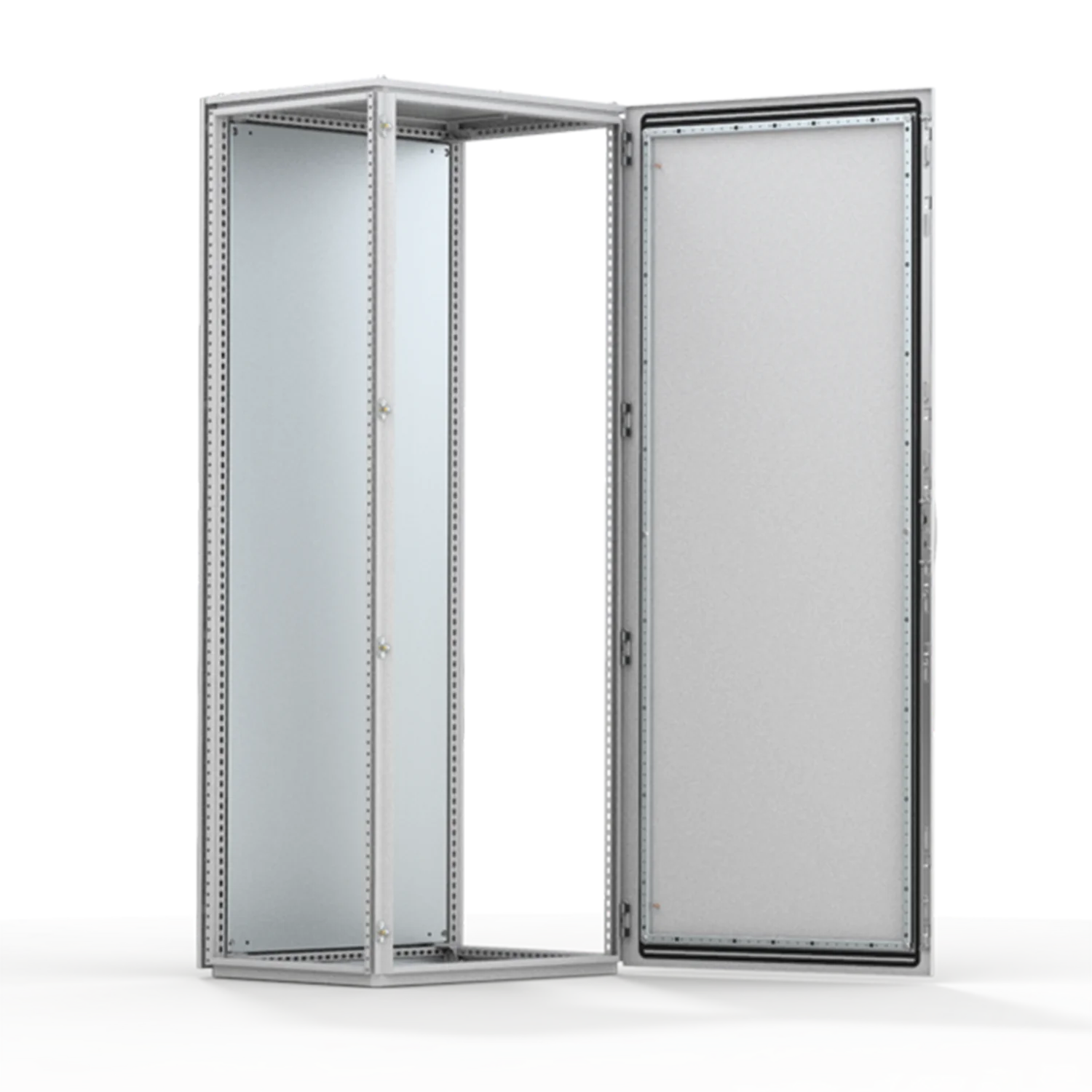

Hoffman MCS20066R5 Modular Single Door With Plate 2000x600x600mm

Product Description

The HOFFMAN MCS20066R5 is a mild steel single door combinable floor standing enclosure with an IP 55 protection degree. It is available off the shelf in many different sizes and is well suited for many different applications. Prevents water and dust from entering the enclosure.

• Available in a wide range of sizes, with a IP 55 protection degree.
• Flexible solution where customers can choose enclosures that meet their size requirements off the shelf.
• Installed components inside the enclosure will be safe and secure due to the high protection degree.

Product Highlights

The HOFFMAN MCS20066R5 enclosure prevents component failure and unnecessary downtime by keeping water and dust out.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: MCS20066R5
• Country of Origin: RO - Romania

Technical Specifications

• Article Number: MCS20066R5
• Height (H): 78.74in
• Width (W): 23.62in
• Depth (D): 23.62in
• Mounting Plate Included: Yes
• Rear Door Included: No
• Rear Panel Included: Yes
• Mounting Plate Width: 19.45in
• Max Mounting Depth: 22in
• Material: Mild Steel
• Finish: Powder Coated
• Color: Light Gray
• Color Code: RAL 7035
• Body Thickness: 16ga
• Door Thickness: 14ga
• Weight: 224.87lb
• Cable Enclosures Included: No
• Brand: Hoffman
• UNSPSC: 39121324
• Approval: UL (Canada and US), UL 508A, KEMA-KEUR, CUL, CSA C22.2, CE
• Enclosure: NEMA 12/13, EEMAC 12, IP55, IK10
• Material Specification: 16 Gauge (Body), 14 Gauge (Door)
• Type: 1-Door, Modular
• Door Type: 1-Door
• Door Mounting: 4-Hinge
• Manufacturer Part Number: MCS20066R5
• Series: MCS Series
• Category: Boxes
• Mfr: Hoffman Enclosures, Inc.
• Part Status: Active
• IP/NEMA Rating: NEMA 12
• ECCN: EAR99
