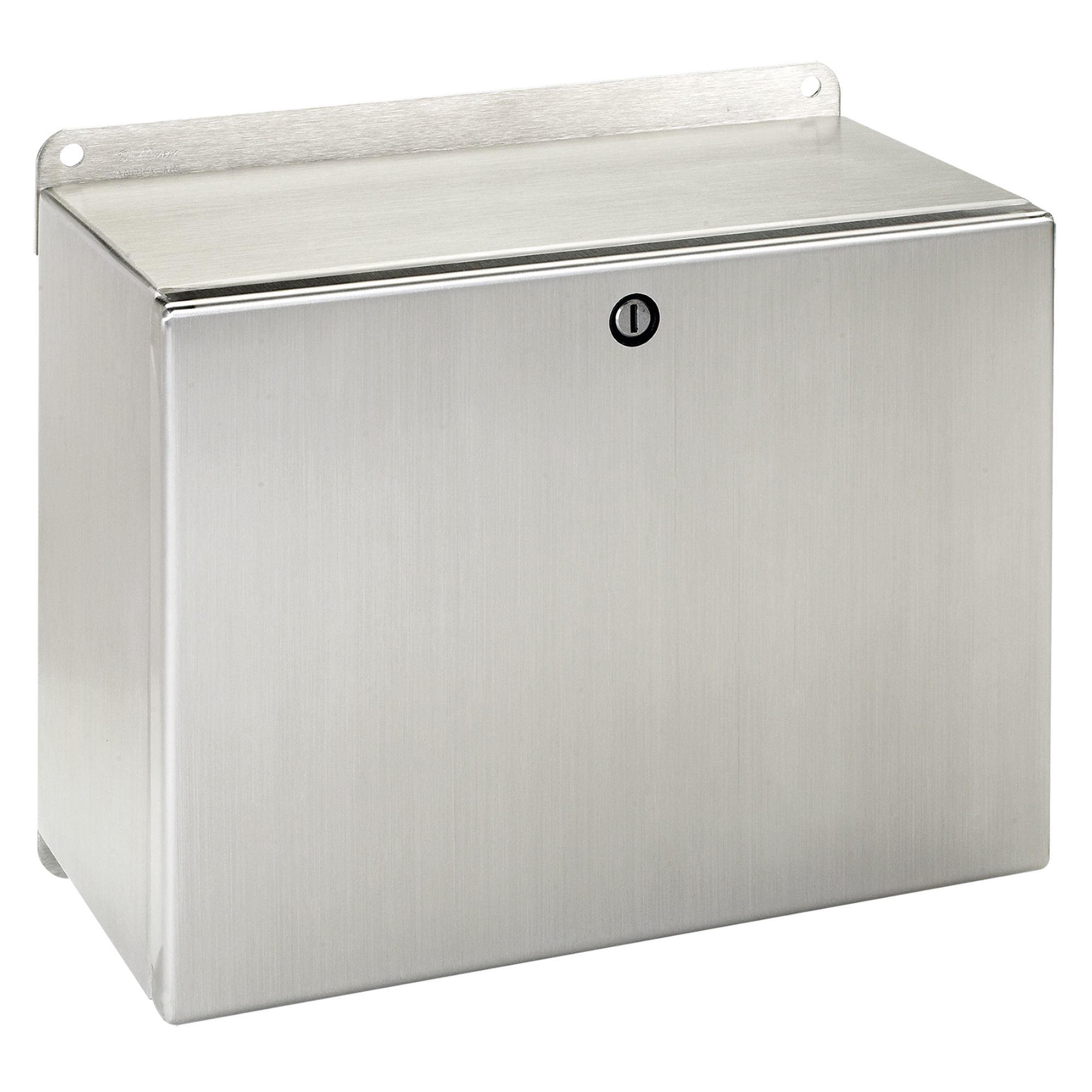

Hoffman LWC233116SS InLine Landscape Enclosure 230x310x155mm

Product Description

The HOFFMAN LWC233116SS InLine Landscape Enclosure is designed for applications requiring electrical components to be mounted across the full width of the enclosure. Its landscape orientation allows for maximum mounting flexibility with full-width mounting brackets that can be drilled anywhere along their length.

• Full width bracket for mounting flexibility
• Seams continuously welded and ground smooth
• External formed body flange trough

Product Highlights

This enclosure features continuously welded seams, an external formed body flange trough, and mounting brackets spot-welded for enhanced durability and mounting options.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: LWC233116SS
• Country of Origin: MX

Technical Specifications

• Article Number: 11043
• Height: 9.06in
• Width: 12.21in
• Depth: 6.1in
• Material: Stainless Steel 304
• Finish: Brushed #4
• Body Thickness: 14 ga
• Door Thickness: 16 ga
• Clear Space Above Panel: 5.51 in
• Window Size: 10.2 in
• Cover Style: Window
• Weight: 10.9 lb
• For Use In: Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present
• IP Rating: IP66
• Size: 230x310x155mm
• Standard: CSA File Number 42186: Type 4, 4X, 12,CUL Listed Per CSA C22.2 No 94; Type 4, 4X, 12; File Number E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 4X, 12,UL 508A Listed; Type 4, 4X, 12; File Number E61997
• Type: Stainless Steel Wall Mounted Industrial Enclosures
• Brand: nVent HOFFMAN
• Sub Brand: Inline
• Color: Unpainted
• Length: 11.0000 in
• Application: Controls and Drives; Corrosive Environments; Hygienic Environments
• ARRA Compliant: C
• Assemble to Order: No
• Clear Space Above Panel [Metric]: 140 mm
• Conductive Panel: LP2331G
• Country of Origin: MX
• Cover Type: Window Cover
• Door Thickness [Metric]: 1.59 mm
• EU RoHS Indicator: NEW
• Harmonization Tariff Schedule Code: 8538100000
• Height [Metric]: 17.1450 cm
• Interchangeable: No
• Length [Metric]: 32.3850 cm
• Modification Services: Yes
• Mounting Holes [Metric]: 281 mm
• Mounting Studs [Metric]: 265 mm
• Package Quantity: 1
• Panel Type: LP2331
• Product Family: InLine
• Rail Type: LDR3P31
• Standards: UL 508A, File No. E61997, cUL Listed per CSA C22.2 No 94, IEC 60529 Certified, RoHS Compliant
• UNSPSC: 39121324
• Width [Metric]: 27.9400 cm
• Window Size [Metric]: 259 mm
• Manufacturer: HOFFMAN ENCLOSURES
• NEMA Rating: 4X Watertight, corrosion-resistant
