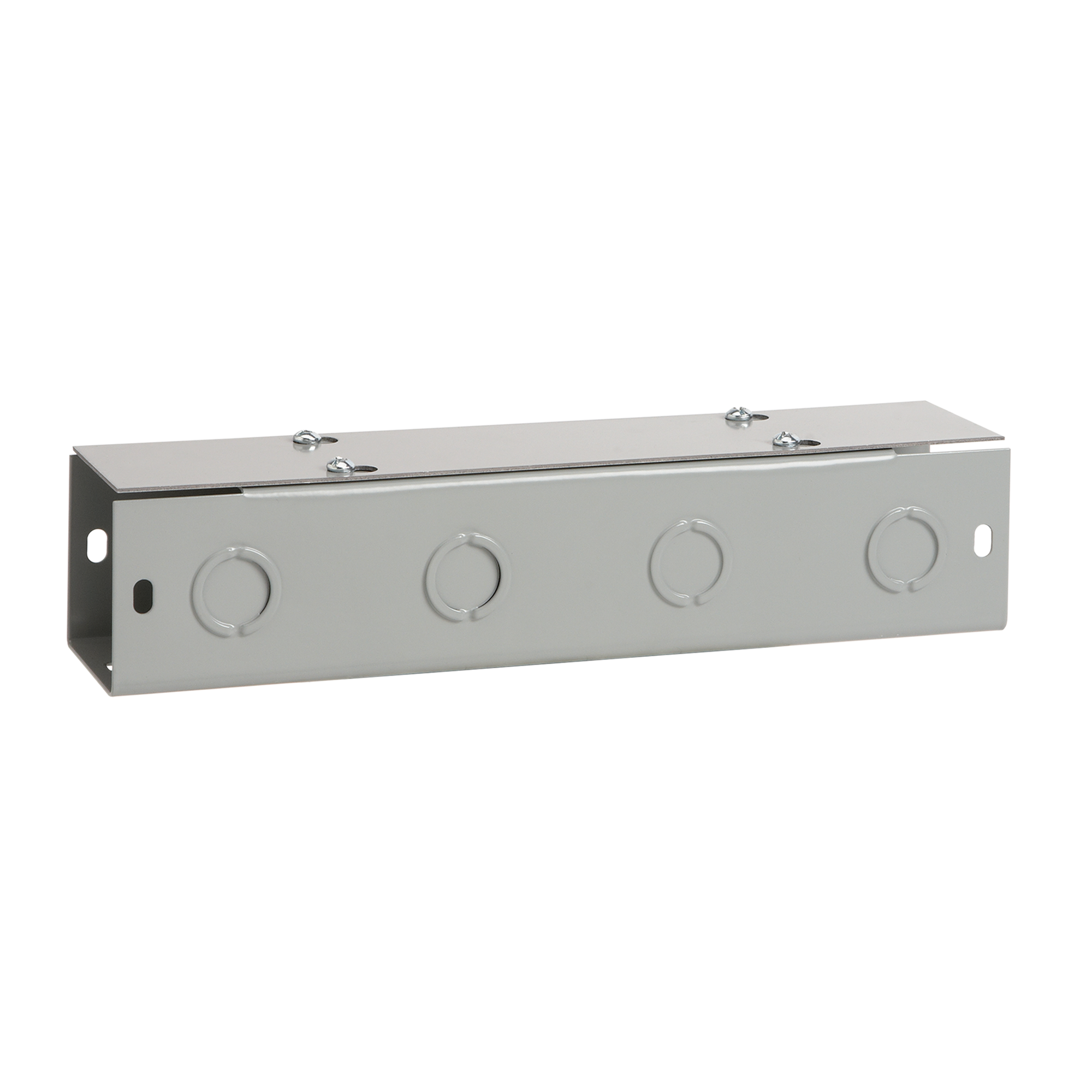

Hoffman F88T148GVPWK Straight Section Lay-in Flat-Cover Type 1 8x8x48

Product Description

The HOFFMAN F88T148GVPWK straight section is a lay-in flat-cover type 1 section used for enclosing wire and cable in wireway runs. The section is completely open on one side, which allows wires and cables to be laid in along the run, eliminating the need to pull wires or cables, preventing insulation damage.

• Lay-in Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs
• Sections are completely open on one side so wires and cables can be laid-in along run
• Lay-in design eliminates the action of pulling wires or cables, which can result in insulation damage

Product Highlights

This straight section features a flat-cover design that supports flush mounting with walls or ceilings. Covers feature keyhole screw slots which simplify cover installation and removal.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F88T148GVPWK
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 16701
• Type: Straight Section
• Height: 8in
• Width: 8in
• Depth: 48in
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 14ga
• Knockout Sizes: (16) 1.0 - 1.25"; (16) 0.50 - 0.75"
• UPC: 783510167011
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: F40FC
• NEMA Rating: 1
• Color Family: Gray
• Enclosure NEMA Rating: Type 1
• Wire Enclosure Composition: Steel
• Wire Enclosure Component Size: 8"
• Component: Lay-In Wireway
• Sub Component: Flat-Cover Straight Section
• Enclosure Gauge: 16 Gauge
• Enclosure Environment Rating: Indoor
• Enclosure Latch Type: Screw
• Manufacturer: Hoffman
• Applications: Power Distribution
• IP Rating: 30
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510167011
• Product UPC: 78351016701
