Hoffman F88T124GVPWK Ww; Type 1; 8x8x24; Gray; Steel

Product Description

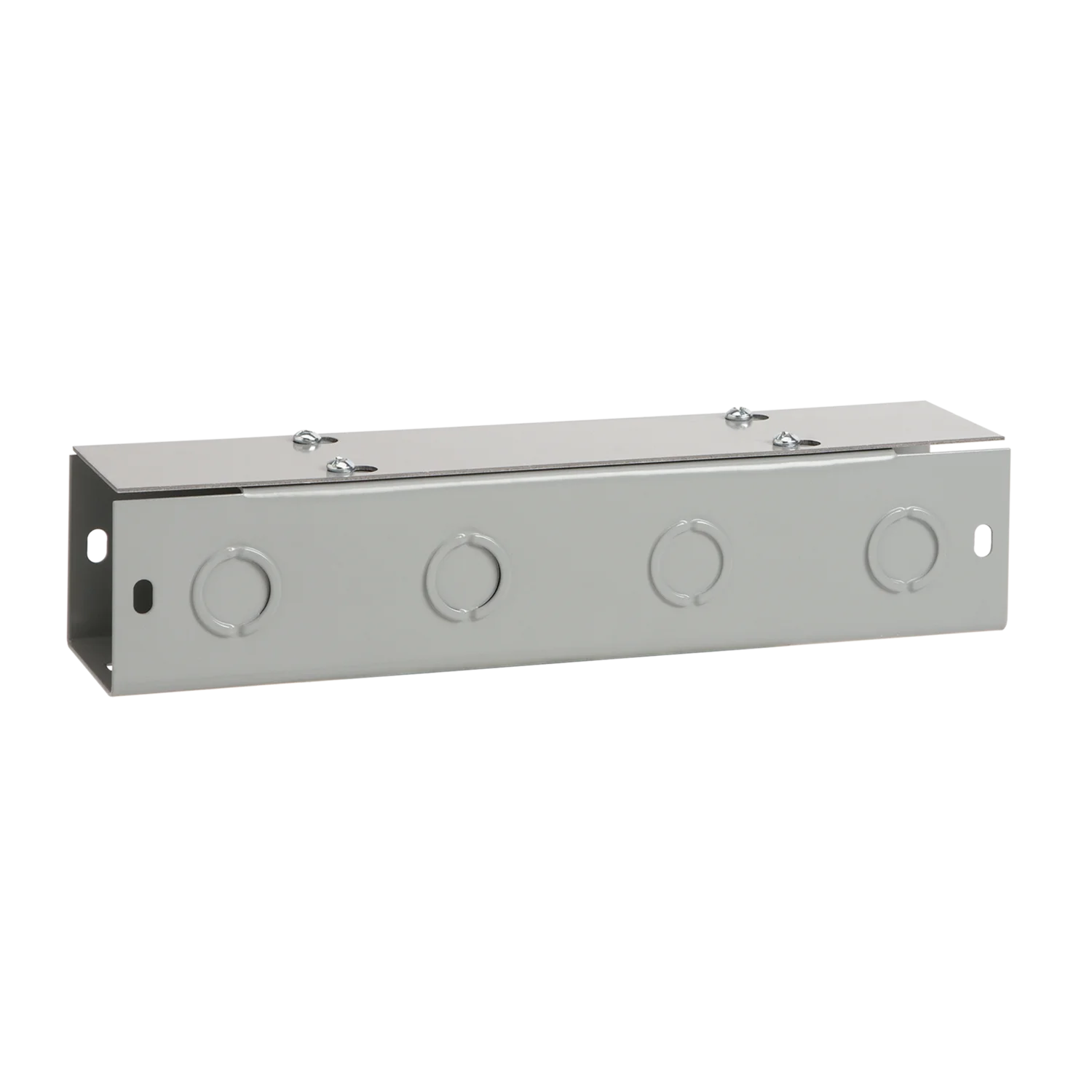

The HOFFMAN F88T124GVPWK is a Straight Section Lay-in Flat-Cover Type 1 with Knockouts designed to enclose wire and cable in wireway runs. The section is open on one side, allowing wires and cables to be laid in, which prevents insulation damage. The flat-cover design supports flush mounting to walls or ceilings. It features keyhole screw slots for easy cover installation and removal.

• Used for enclosing wire and cable in wireway runs
• Open on one side for easy wire and cable placement
• Flat-cover design supports flush mounting

Product Highlights

This steel, gray, powder-coated wireway section measures 8x8x24 inches and features knockouts. Ideal for power distribution applications requiring NEMA Type 1 electrical protection.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F88T124GVPWK
• Country of Origin: Mexico

Technical Specifications

• Type: Straight Section
• Color: Gray
• Width: 8 in
• Finish: Powder Coated
• Height: 8 in
• Wireway: Lay-In NEMA Type 1 Painted Flat-Cover Wireway
• Material: Mild Steel
• IP Rating: IP30
• Knockouts: Yes
• Color Code: ANSI 61
• Application: Power Distribution
• NEMA Rating: 1 Indoor; electrical protection
• Type Number: Type 1
• Depth (Imperial): 24 in
• Protection Rating: NEMA Type 1
• Thickness (Imperial): 14 ga
• Knockout Quantity; 0.50 - 0.75: 8
• Knockout Quantity; 1.00 - 1.25: 8
• Knockout Sizes: (8) 1.0 - 1.25"; (8) 0.50 - 0.75"
• MPN: F88T124GVPWK
• Length: 24 in.
