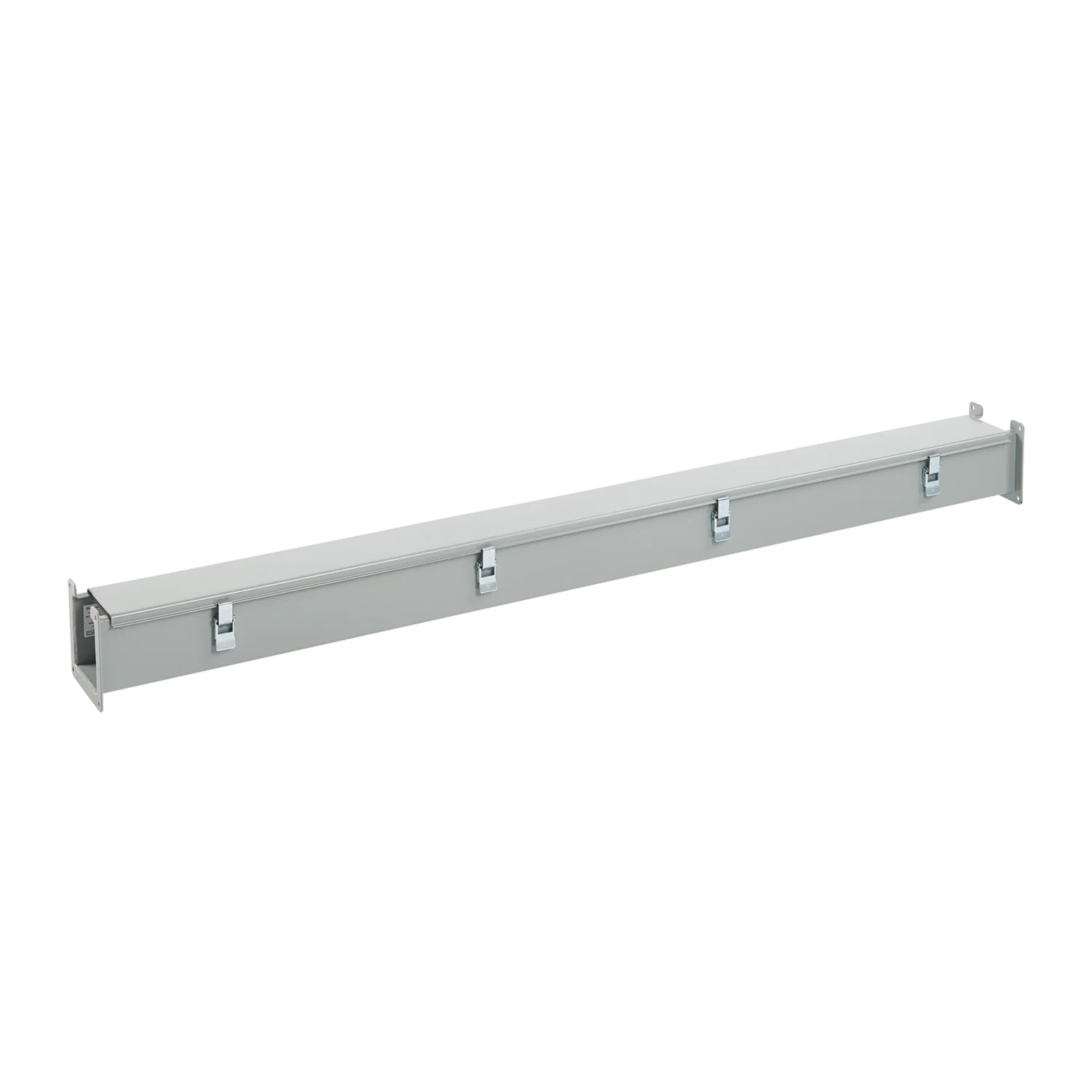

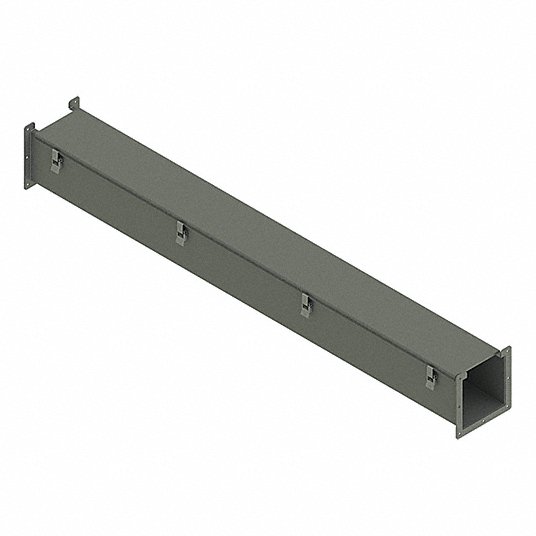

Hoffman F88L60 Straight Section Lay-in Hinged Cover Type 12, 8.00x8.00x60.00

Product Description

The HOFFMAN F88L60 straight section lay-in hinged cover type 12 wireway fittings are used primarily in industrial applications to protect wiring against exposure to oil and other contaminants. This gasketed wireway features quick-release latches for easy access and an opening on one side so wires and cables can be laid in along the entire run without pulling.

• Protects wiring against exposure to oil and other contaminants
• Features quick-release latches for easy access
• Allows wires and cables to be laid in along the entire run without pulling

Product Highlights

The HOFFMAN F88L60 wireway simplifies cable installations and protects against environmental contaminants, featuring easy access and continuous wire laying.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F88L60
• Country of Origin: Mexico

Technical Specifications

• Article Number: 19210
• Type: Straight Section
• Height: 8 in
• Width: 8 in
• Depth: 60 in
• Material: Mild Steel
• Finish: Galvanized; Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 14ga
• Sealing Plate Type: Flat
• Sealing Plate Quantity: 1
• UPC: 783510192105
• EAN: 8713574240728
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: F10
• UNSPSC: 39131710
• Approval: UL 870, CSA
• Knockouts: No
• Enclosure: NEMA 12, IP54
• Cover Type: Butt Hinged, Latched
• Brand: HOFFMAN
• Length: 60 in
• NEMA Rating: 12
• Cover Locking Style: Latch
• Standards: CSA Certified; File No. 42184 Type 1; File No. E27524; IEC 60529; IP54; JIC Standards: EGP-1-1967 and EMP-1-1967; UL 870
• Gauge: 14 ga
