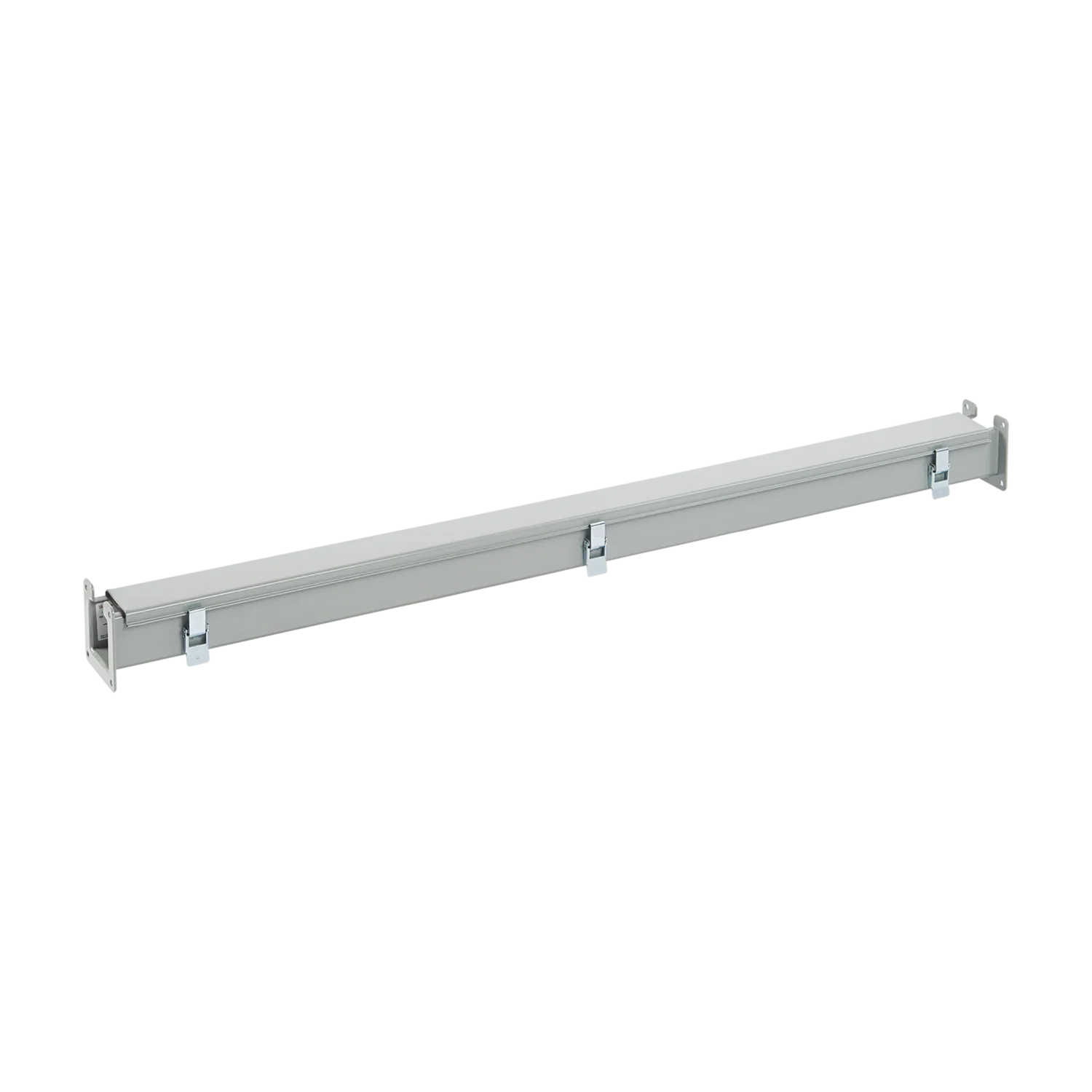

Hoffman F88L48 Straight Section Lay-in Hinged Cover Type 12, 8.00x8.00x48.00

Product Description

The HOFFMAN F88L48 straight section lay-in NEMA Type 12 wireway fittings are used primarily in industrial applications to protect wiring against exposure to oil and other contaminants. This gasketed wireway features quick-release latches for easy access. It has an opening on one side so wires and cables can be laid in along the entire run without pulling.

• Seams continuously welded and ground smooth
• No holes or knockouts
• Smooth, rounded edges on all sections and fittings

Product Highlights

The F88L48 wireway is constructed of 14 gauge steel covers and bodies with 10 gauge steel end flanges. It has an ANSI 61 gray polyester powder finish inside and out over pretreated surfaces.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F88L48
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 19200
• Type: Straight Section
• Height: 8in
• Width: 8in
• Depth: 48in
• Material: Steel
• Finish: Galvanized; Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 14ga
• Sealing Plate Type: Flat
• Sealing Plate Quantity: 1
• UPC: 783510192006
• EAN: 8713574240711
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• ECCN: EAR99
• NEMA Rating: 12
• Cover Type: Quick Release Latch Cover
• Color Family: Gray
• Length: 48 in.
• UNSPSC: 39131710
• Brand Name: Hoffman
• Special Features: 10 ga steel end flanges, 14 ga steel covers and bodies, ANSI 61 gray polyester powder paint finish inside and out over pretreated surfaces, Gasketed quick release flat sealing plate, Gasketed wireway features quick release latches for easy access and an opening on one side so wires and cables can be laid-in along the entire run without pulling, No holes or knockouts, Oil-resistant gasket and adhesive, Seams continuously welded and ground smooth, Smooth, rounded edges on all sections and fittings
• Sub_Brand: Hoffman
• Enclosure Rating: IP54
• Enclosure Type: IP54
• IP Rating: 54
• Applications: Power Distribution
• Used With: Power Distribution
• Manufacturer Part Number: F88L48
• UPC Code: 78351019200
