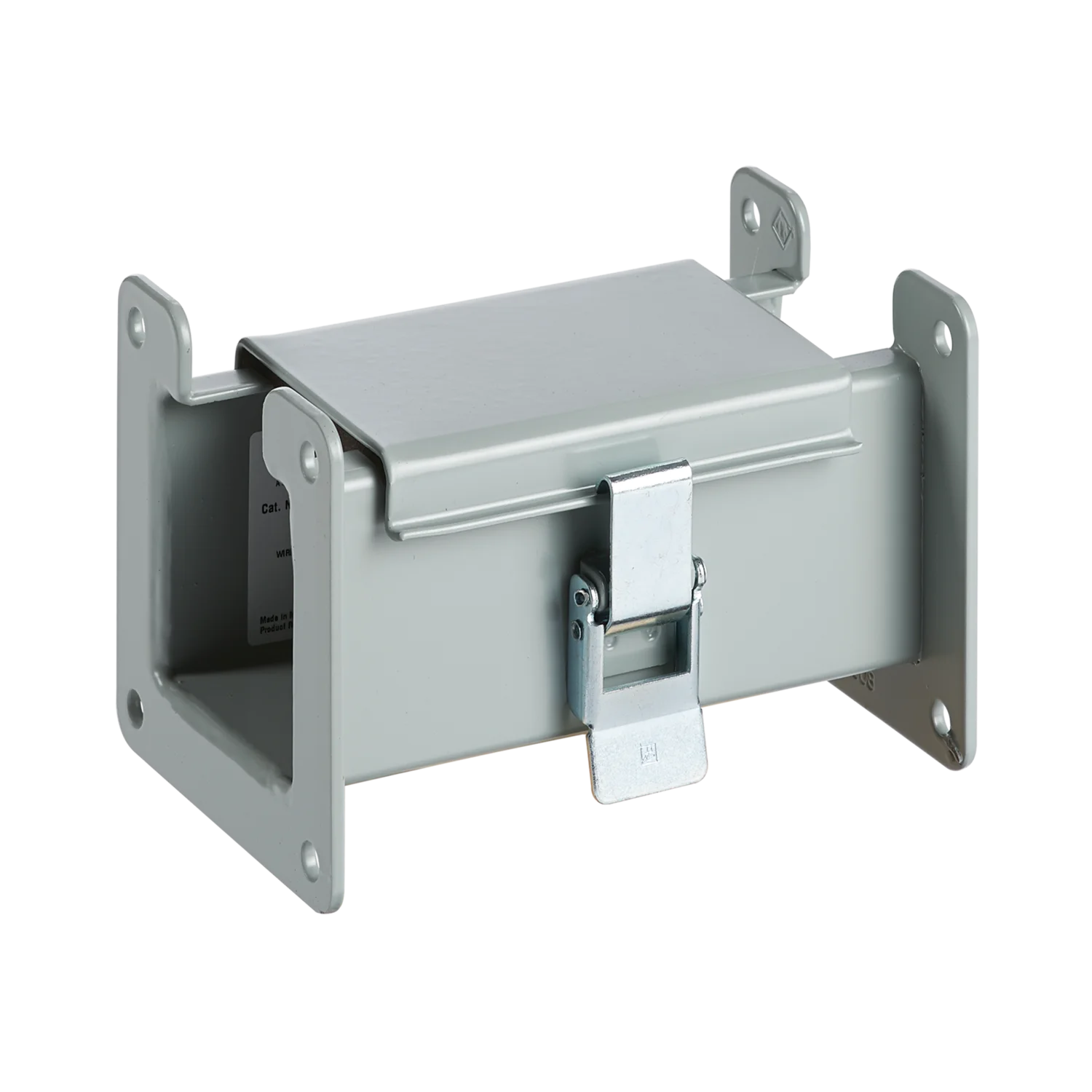

Hoffman F88L06 Straight Section Lay-in Hinged-Cover Type 12, 8.00x8.00x6.00

Product Description

The HOFFMAN F88L06 straight section lay-in hinged-cover type 12 wireway fittings are used primarily in industrial applications to protect wiring against exposure to oil and other contaminants. This gasketed wireway features quick-release latches for easy access. Designed with an opening on one side so wires and cables can be laid in along the entire run without pulling.

• Protects wiring against exposure to oil and other contaminants
• Features quick-release latches for easy access
• Wires and cables can be laid in along the entire run without pulling

Product Highlights

The F88L06 wireway is ideal for protecting wires and cables in industrial environments. It features a gasketed design and quick-release latches for easy access.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F88L06
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 19160
• Type: Straight Section
• Height: 8in
• Width: 8in
• Depth: 6in
• Material: Steel
• Finish: Galvanized; Powder Coated
• Color Code: ANSI 61
• Thickness: 1.9 mm
• Sealing Plate Type: Flat
• Sealing Plate Quantity: 1
• UPC: 783510191603
• EAN: 8713574240667
• Brand: nVent HOFFMAN
• Manufacturer Part Number: F88L06
• Numeric ID: 2510412
• Cover Type: Butt Hinged, Quick-Release Latched, Oil Resistant Gasketed
• Knockouts: No
• Enclosure: NEMA 12, IP54
• Approval: UL 870, CSA
• UNSPSC: 39131710
• ECCN: EAR99
• NEMA Rating: 12
• Color: ANSI 61 Gray
• Enclosure Rating: IP54
• Enclosure Type: IP54
• IP Rating: 54
• Applications: For Industrial Applications to Protect Wiring Against Exposure to Oil and other Contaminants
• Color Coding: ANSI 61
• Sub Brand: Hoffman
