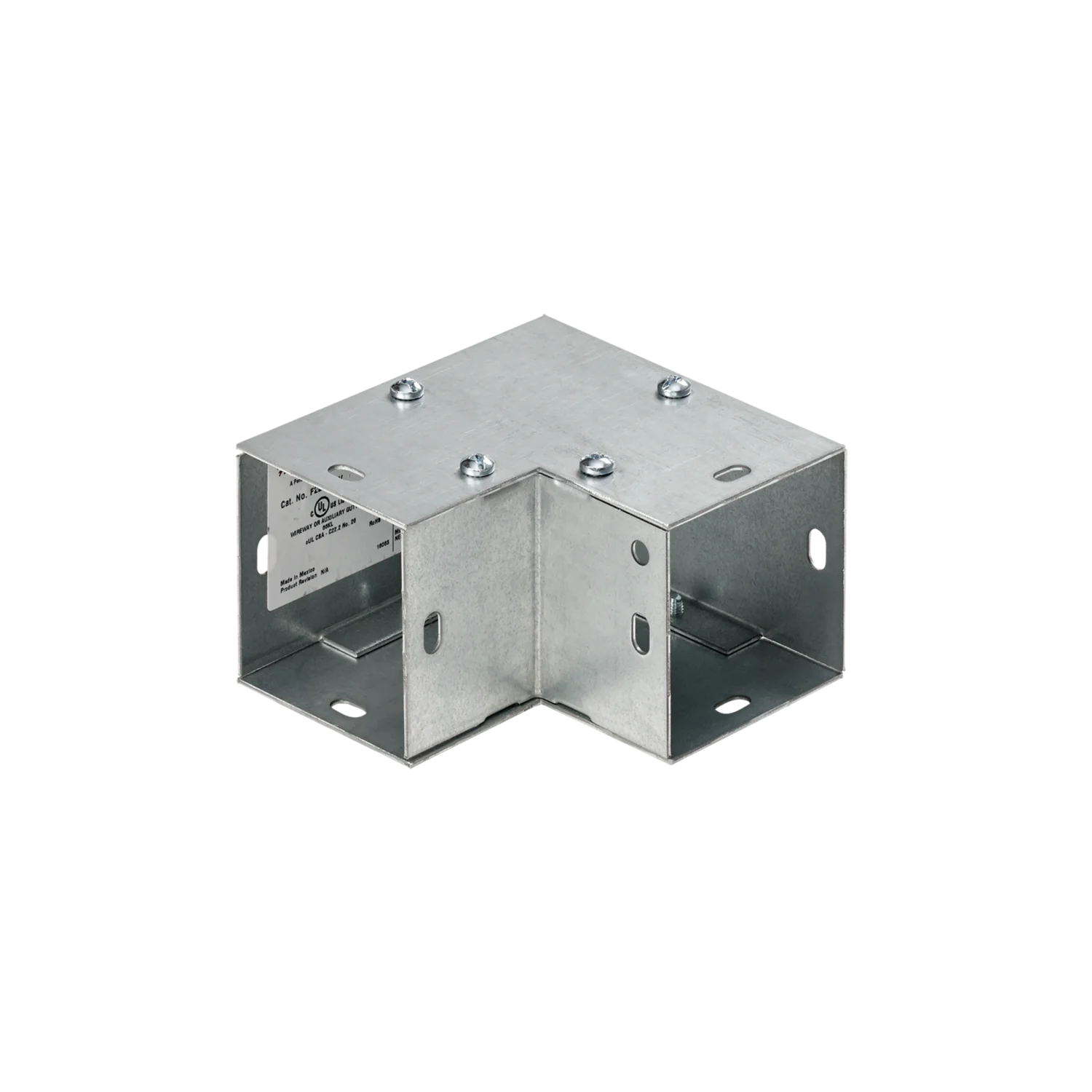

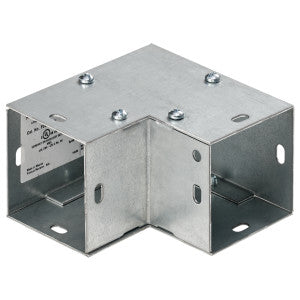

Hoffman F8890EGV 90D Wireway Ell Ww 90 degree

Product Description

The HOFFMAN F8890EGV 90D Wireway Ell Ww is a wireway elbow designed for any side opening and lay-in wireway types. It features a flat, screw cover and a 90-degree bend angle. Constructed from 16/14 gauge steel with an unpainted galvanized finish, it meets NEMA 1 and IP30 enclosure standards.

• Features a 90-degree bend angle for right-angle installations.
• Constructed from 16/14 gauge steel with an unpainted galvanized finish.
• Compliant with UL 870, CUL, CSA C22.2, RoHS/Reach, IEC 60529, and EEMAC Type 1 standards.

Product Highlights

This wireway elbow is ideal for creating 90-degree turns in wireway systems, ensuring secure and compliant cable management.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F8890EGV
• Country of Origin: MEX

Technical Specifications

• Type: Any Side Opening
• Wireway Type: Lay-In
• Cover Type: Flat, Screw
• Bend Angle: 90 Degree
• Width: 8 Inch
• Height: 8 Inch
• Material: 16/14 Gauge Steel (Body/Cover)
• Finish: Unpainted Galvanized
• Enclosure: NEMA 1, IP30
• Approval: UL 870, CUL, CSA C22.2
• RoHS/Reach Compliant: True
• Applicable Standard: IEC 60529, EEMAC Type 1
• Thickness: 14ga
• UPC: 783510887803
• Bulletin Number: F40GF
• ECCN: EAR99
• UNSPSC: 39131711
• Length: 10 in.
