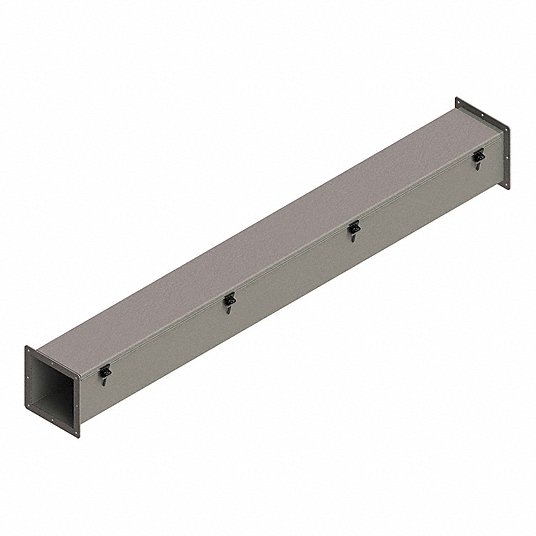

Hoffman F66W60 Straight Section Feed-Through 6.00x6.00x60.00

Product Description

The HOFFMAN F66W60 feed-through hinged-cover, Type 12 straight sections are used for enclosing wire and cable in wireway runs. Its dust protection features makes it suitable for a broad range of industrial applications. The traditional closed-loop design has an opening on one side for easy access to wires and cables.

• Feed-Through Hinged-Cover, Type 12 Straight Sections are used for enclosing wire and cable in wireway runs
• Its dust protection features makes it suitable for a broad range of industrial applications
• The traditional closed-loop design has an opening on one side for easy access to wires and cables

Product Highlights

Ideal for enclosing wire and cable in industrial applications with easy access to wires and cables.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F66W60
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 14450
• Type: Straight Section
• Height: 6in
• Width: 6in
• Depth: 60in
• Material: Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 14ga
• UPC: 783510144500
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Applications: Power Distribution
• Cover Type: Hinged
• Enclosure Type: IP54
• IP Rating: 54
• Brand: HOFFMAN
• Sub Brand: Hoffman
• 12-Digit UPC: 783510144500
• Color: Gray
• Product UPC: 78351014450
• Length: 60 Inch
• Thickness (mm): 1.9 mm
• ECCN: EAR99
• UNSPSC: 39131710
• Item: Wireway
• Wireway Width: 6 in
• Wireway Height: 6 in
• Gauge: 14 ga
• With Knockouts: No
• NEMA Rating: 12
• Cover Locking Style: Screw Clamp
• Standards: CSA Certified; File No. 42184 Type 1; File No. E27524; IEC 60529; IP54; JIC Standards: EGP-1-1967 and EMP-1-1967; UL 870
• Model: F66W60
• MPN: F66W60
• Condition: New
