Hoffman F66T48HC NEMA 12 wirg trgh (6.00x6.00x48.00 in)

Product Description

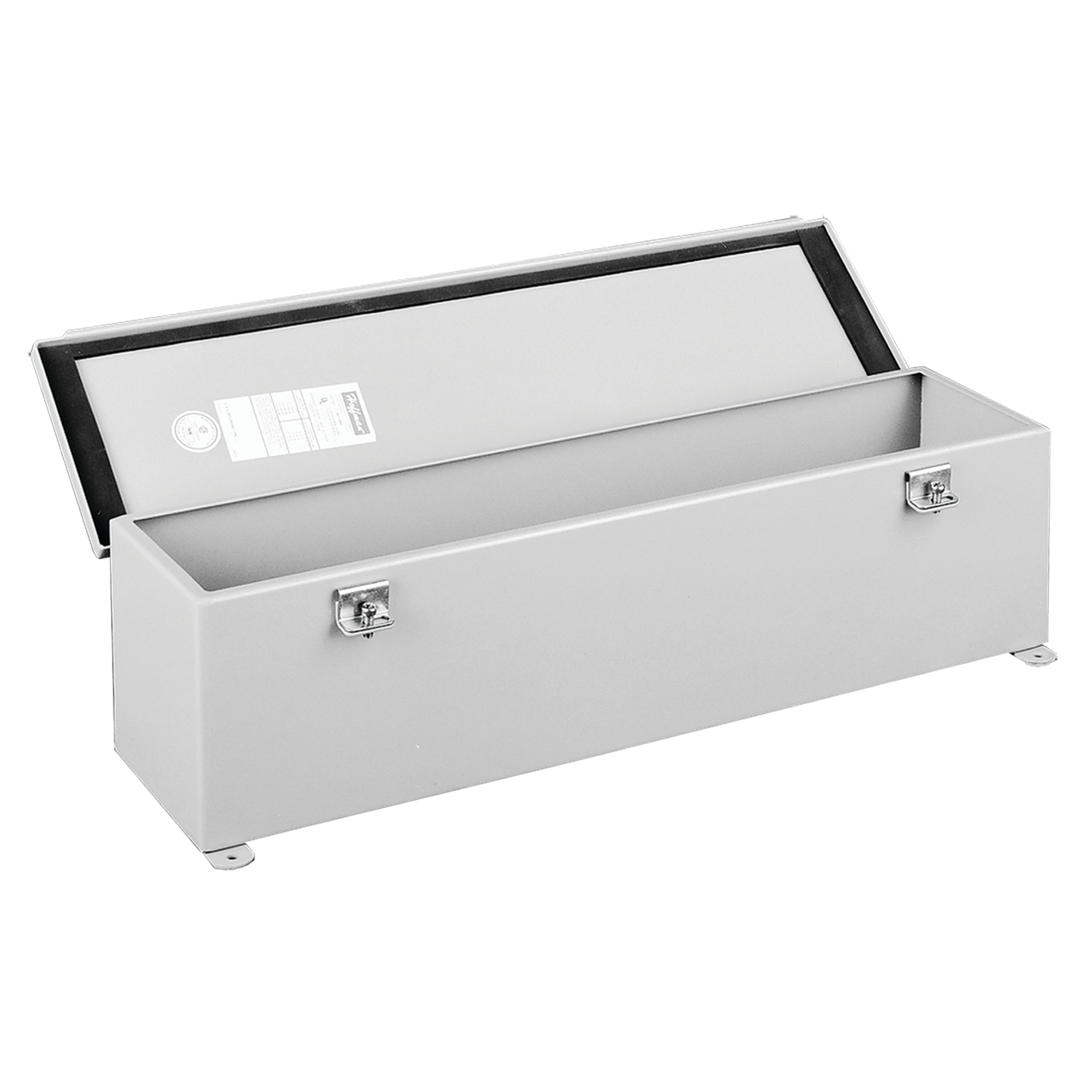

The HOFFMAN F66T48HC hinged cover wiring trough, NEMA Type 12, with dimensions 6.00x6.00x48.00 inches, is made of steel and coated gray. Designed to protect wire and cable distribution, junctions, and terminations, it meets functionality requirements for moist or dirty applications. The hinged, screw clamp cover allows easy access.

• Ends and seams continuously welded and ground smooth
• No holes or knockouts
• Butt hinges

Product Highlights

Wiring trough protects wire and cable distribution in moist or dirty applications. Features a hinged, screw clamp cover for easy access.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F66T48HC
• Country of Origin: MX

Technical Specifications

• IGCC: 5740
• Size: 6.00x6.00x48.00 in
• Type: Trough
• Color: Gray
• Depth: 48 in
• Width: 6 in
• Finish: Galvanized
• Wireway: Wiring Troughs
• Material: Mild Steel
• IP Rating: IP60
• Color Code: ANSI 61
• Application: Power Distribution
• NEMA Rating: 12 Indoor; dust-resistant
• Type Number: Type 12
• Family group: WIREWAY/ENCLOSURES
• Manufacturer: HOFFMAN
• Clamp Quantity: 3
• Height (Metric): 152 mm
• WES Product code: 2650503605
• Height (Imperial): 6 in
• Protection Rating: NEMA Type 12
• Thickness (Metric): 1.9 mm
• Thickness (Imperial): 14 ga
• Modification Services: Yes
• Mounting Bracket Quantity: 2
• Article Number: 16710
• UPC: 783510167103
• Packing Quantity: 1
• Bulletin Number: F20HC
• Cover_Type: Butt Hinged/Screw Clamp
• Special Features: 14 ga steel covers and bodies Butt hinges, screw clamps Ends and seams continuously welded and ground smooth External screw clamps No holes or knockouts Oil-resistant gasket and adhesive The wiring trough meets basic functionality requirements for moist or dirty applications, with the added feature of a hinged, screw clamp cover for easy access
• Standard: UL 870 Listed, File No. E27524, NEMA Type 12, JIC standards EGP-1-1967 and EMP-1-1967, CSA, File No. 42184, Type 1, IEC 60529, IP55
• Sub_Brand: Hoffman
• EU RoHS Indicator: NEW
• Gross Volume Per Pack: 1.47
• Gross Volume UOM: FC
• Gross Weight Per Pack: 29.0000 lb
• Gross Weight per Pack Metric: 13.15
• Gross Weight UOM Metric: kg
• Harmonization Tariff Schedule Code: 7326908688
• Height [Metric]: 16.5100 cm
• Interchangeable: No
• Item Group: F20HC
• Length: 8.0000 in
• Length [Metric]: 124.4600 cm
• Manufacturer Part Number: F66T48HC
• UNSPSC: 39131714
• UPC 11: 78351016710
• UPC 12: 783510167103
• Width [Metric]: 20.3200 cm
• Approximate Depth: 6 in
• Approximate Height: 6 in
• Approximate Width: 48 in
• Dimensions: 6.50 in H X 49.00 in W X 8.00 in L
• Numeric ID: 2510415
• Brand: nVent HOFFMAN
• Country of Origin: MX
• Assemble to Order: No
• Buy American Compliant: C
• Catalog Number: F66T48HC
• Standards: UL 870/27524, JIC standards EGP-1-1967 and EMP-1-1967, CSA, File No. 42184, Type 1, RoHS Compliant
• Stock Status: NONSTOCK
• Thickness [Metric]: 1.9 mm
