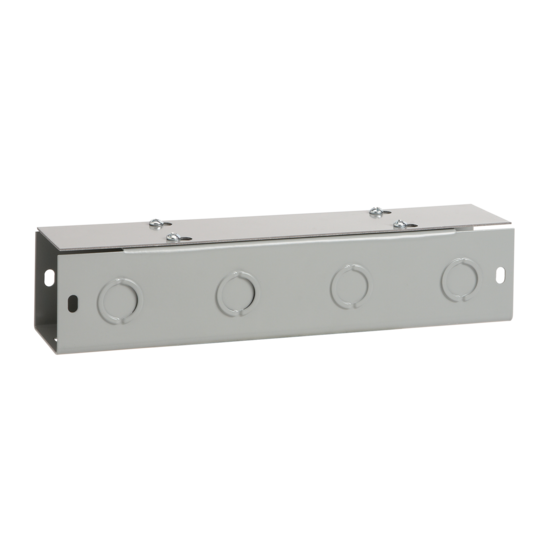

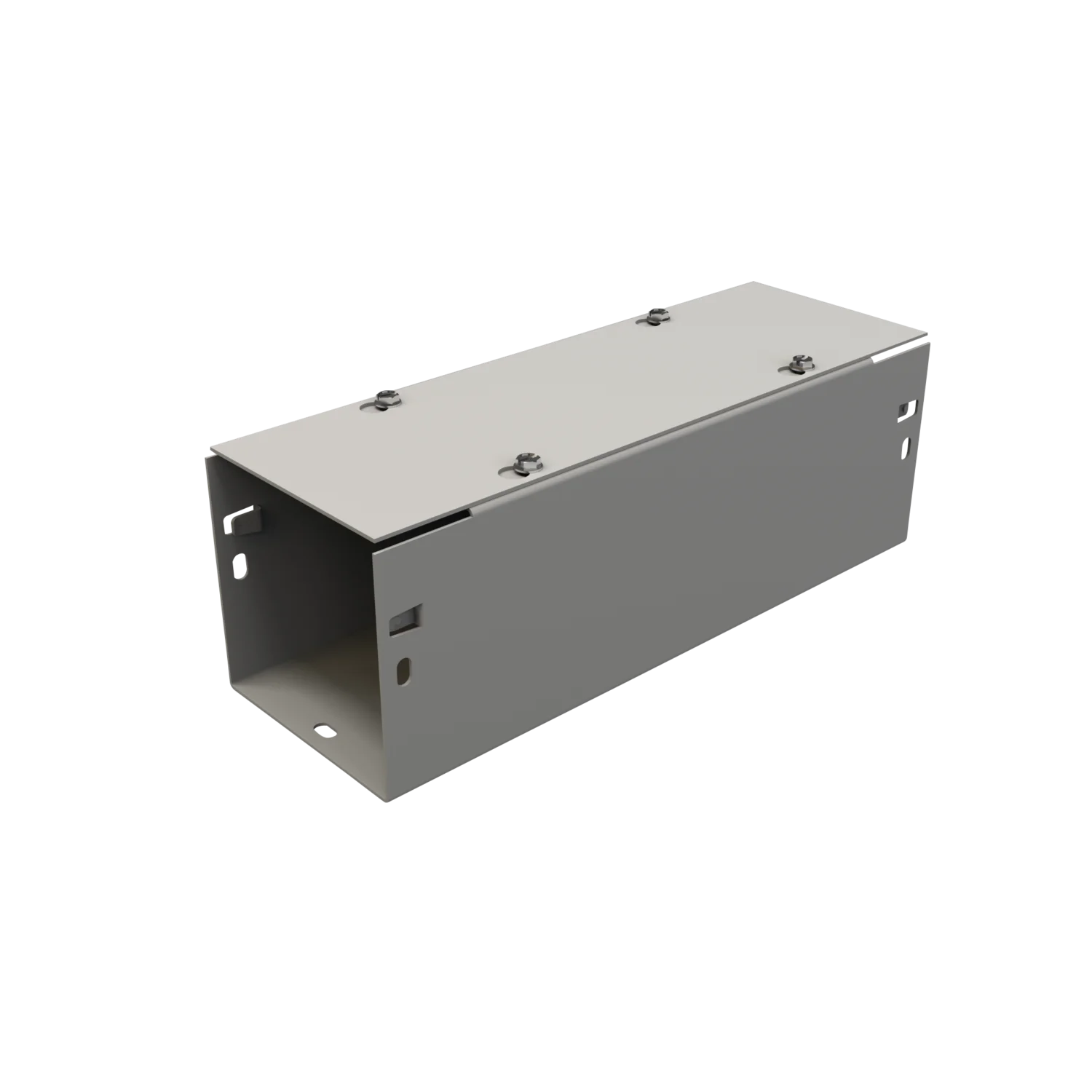

Hoffman F66T1120GVPWK Straight Section Lay-in Flat Cover Type 1 6x6x120

Product Description

The HOFFMAN F66T1120GVPWK straight section lay-in flat cover type 1 is used for enclosing wire and cable in wireway runs. The sections are completely open on one side so wire and cable can be laid-in along run, which eliminates the action of pulling wires or cables that can result in insulation damage.

• Lay-in Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs
• Sections are completely open on one side so wires and cables can be laid-in along run
• Lay-in design eliminates the action of pulling wires or cables, which can result in insulation damage

Product Highlights

The straight sections are available in lengths from 12 to 120 inches, with or without knockouts. The flat-cover design supports mounting flush with walls or ceilings.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F66T1120GVPWK
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 36239
• Type: Straight Section
• Height: 6 in
• Width: 6 in
• Depth: 120 in
• Material: Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 16ga
• Connection Type: Snap-in
• Knockout Sizes: (4) 1.0 - 1.25"; (4) 0.50 - 0.75"
• UPC: 783510362393
• Bulletin Number: F40FC
• Series: F40FC Series
• Length: 120 in.
• UNSPSC: 39131710
• Brand: nVent HOFFMAN
• Manufacturer Part Number: F66T1120GVPWK
• UPC Code: 78351036239
• Cover Type: Flat
• NEMA Rating: NEMA 1
• Application: For an open design on one side so wires and cables can be laid in safely along the entire run without pulling, a practice that can damage insulation
• Standard & Approvals: UL 870, File No. E27524 Listed, cUL Listed per CSA C22.2 No. 26, File No. E27524, RoHS Compliant
