Hoffman F66T Tee Ww, Type 6 Inch x 6 Inch

HOFFMAN
Brand: HOFFMAN
SKU: F66T
Availability: Out Of Stock
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

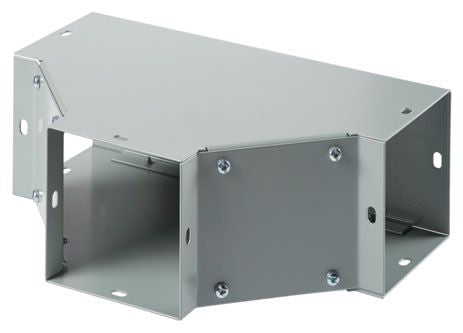

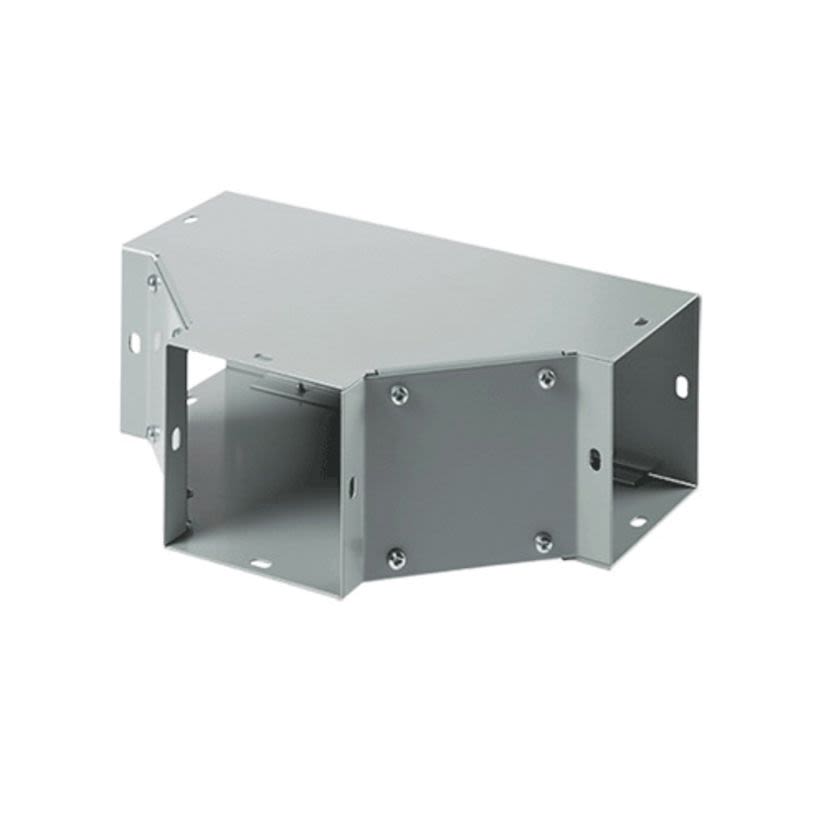

The HOFFMAN F66T Tee Ww, Type is a wireway tee designed with a top opening and lay-in feature. It has a screw cover and measures 6 inches in both width and height. Constructed from 16/14 gauge steel with an ANSI 61 gray polyester powder-coated finish. It is NEMA 1 rated and approved by UL 870, CUL, and CSA C22.2. Used for large radius turns and mounting against vertical or horizontal surfaces.

  • Lead-Free
  • RoHS Compliant
  • Used On Large Radius Turn, Mounting Against Vertical or Horizontal

Product Highlights

This wireway tee is ideal for creating large radius turns and can be mounted against vertical or horizontal surfaces.

Product Information

Standard Information

  • Brand: HOFFMAN
  • Manufacturer Part Number: F66T
  • Country of Origin: MEX
Technical Specifications
Type
Top Opening
Wireway Type
Lay-In
Cover Type
Screw
Width
6 Inch
Height
6 Inch
Material
Steel
Finish
ANSI 61 Gray Polyester Powder Coated
Enclosure
NEMA 1
Approval
UL 870, CUL, CSA C22.2
MPN
F66T
Brand
HOFFMAN
Color Code
ANSI 61
Application
Power Distribution
NEMA Rating
Type 1 Indoor; electrical protection
Type Number
Type 1
Protection Rating
NEMA Type 1
Thickness (Imperial)
16 ga
Thickness
16ga
UPC
783510131678
Standard Packaging Quantity
1
Packing Quantity
1
Bulletin Number
F40PF
Bend Angle
90 deg
Mounting Type
Surface
Series
F40PF
Suitable For Use With
6 x 6 in NEMA 1 Flat Cover Wireway
Components
FITTINGS
