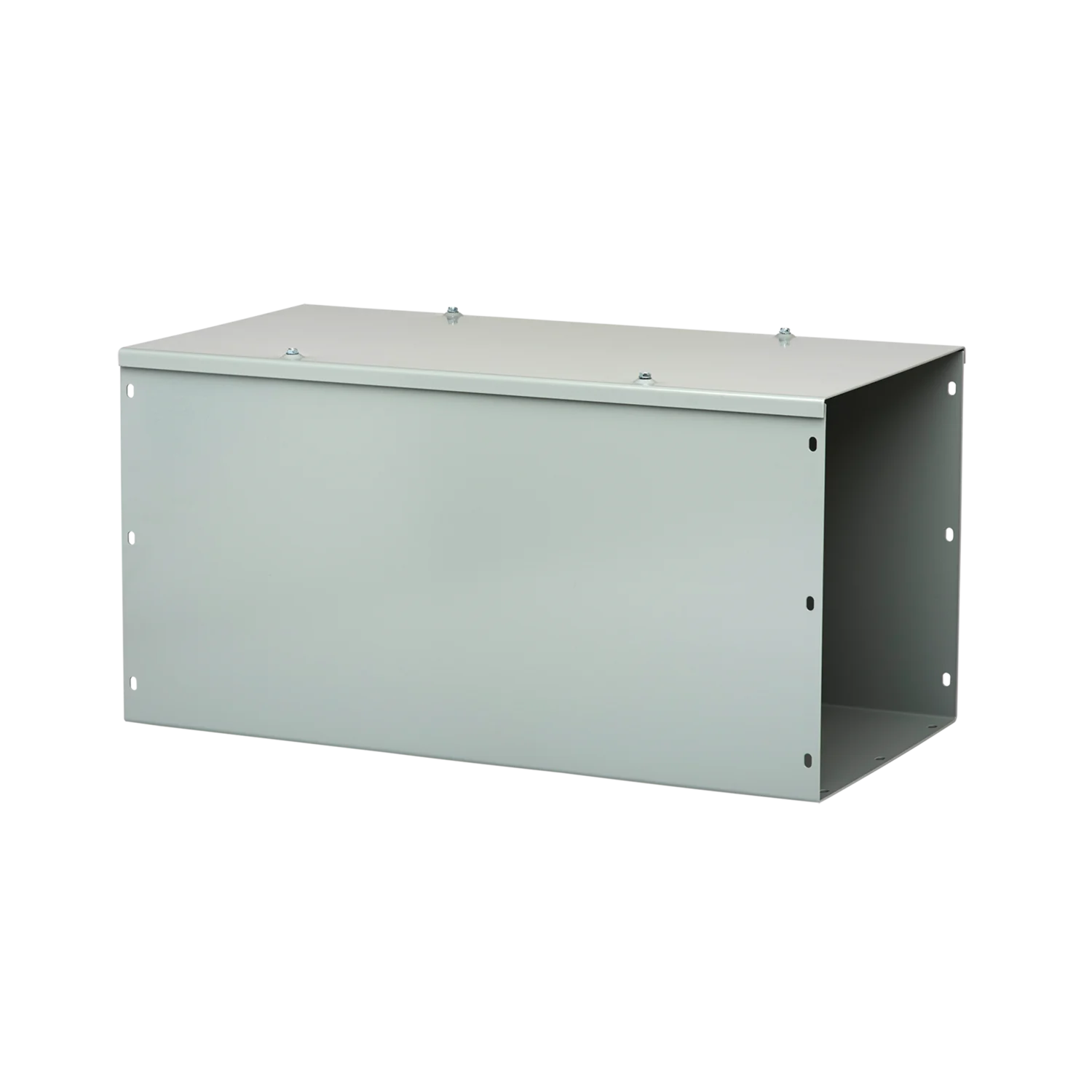

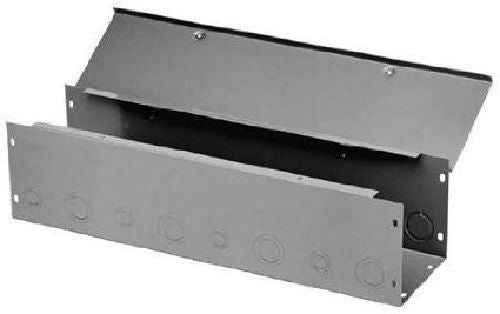

Hoffman F66G48WK Straight Section Lay-in Hinged-Cover 6x6x48

Product Description

The HOFFMAN F66G48WK straight section lay-in hinged-cover is used for enclosing wire and cable in wireway runs. Sections are completely open on one side so wires and cables can be laid in along wireway run. It prevents damage to insulation that often occurs in a pull-through wiring system.

• Used for enclosing wire and cable in wireway runs
• Open on one side for easy wire and cable placement
• Available in lengths from 12 inch to 120 inch, with or without knockouts

Product Highlights

The F66G48WK straight section provides convenient cable installation and maintenance with its top hinged cover.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F66G48WK

Technical Specifications

• Article Number: 52980
• Type: Straight Section
• Height: 6 in
• Width: 6 in
• Depth: 48 in
• Material: Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 16ga
• Knockout Sizes: (16) 0.50 - 0.75"
• Cover Style: Hinge
• UPC: 783510529802
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: F40
• Applications: Power Distribution
• IP Rating: 30
• Style: Liftoff Cover With Knockouts
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510529802
• GTiN: 00783510529802
• Product UPC: 78351052980
• Length: 48 in
• Number of Knockouts: 16
• Series: F40
• Application: For convenient cable installation and maintenance with its top hinged cover and an opening on one side so wires and cables can be laid in along the entire run without pulling
• Standard & Approvals: UL 870, File No. E27524 Listed, cUL Listed per CSA C22.2 No. 26, File No. E27524, RoHS Compliant
• Cover Type: Removable Hinged
• Includes: Captivated Plated Screw Fasteners
• NEMA Rating: NEMA 1/3R
