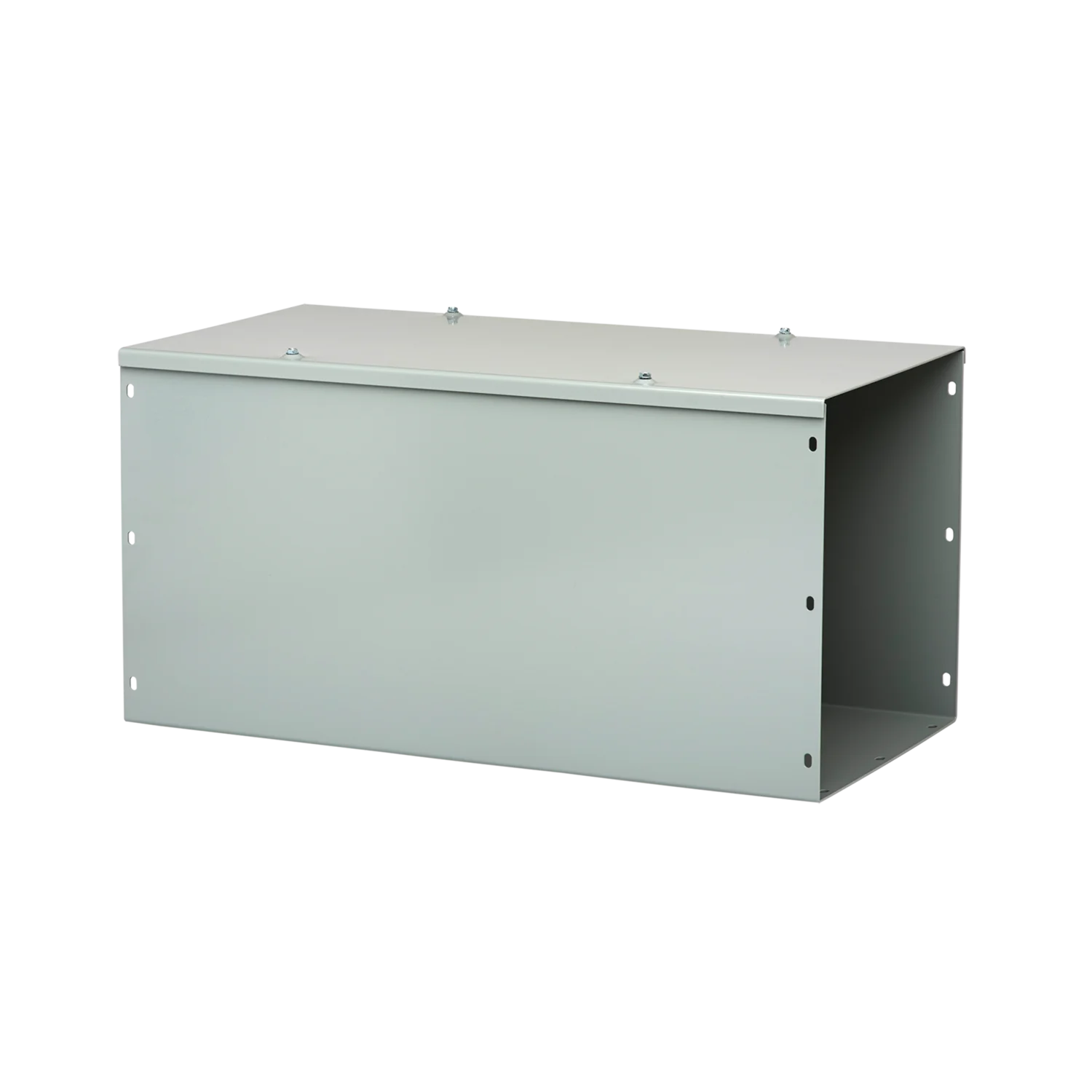

Hoffman F66G12WK Straight Section Lay-in Hinged-Cover Type 1 6x6x12

Product Description

The HOFFMAN F66G12WK is a Straight Section Lay-in Hinged-Cover Type 1 with KOs, 6x6x12, Gray, Steel, used for enclosing wire and cable in wireway runs. The section is completely open on one side so wires and cables can be laid in along wireway run. This prevents damage to insulation that often occurs in a pull-through wiring system.

• Used for enclosing wire and cable in wireway runs
• Completely open on one side so wires and cables can be laid in along wireway run
• Prevents damage to insulation that often occurs in a pull-through wiring system

Product Highlights

The HOFFMAN Straight Section Lay-in Hinged-Cover Type 1 is available in lengths from 12 inch to 120 inch, with or without knockouts.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F66G12WK

Technical Specifications

• Article Number: 52950
• Type: Straight Section
• Height: 6in
• Width: 6in
• Depth: 12in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 16ga
• Knockout Sizes: (4) 0.50 - 0.75"
• Cover Style: Hinge
• UPC: 783510529505
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: F40
• IP/NEMA Rating: NEMA 1, IP30
• Number of Knockouts: 4
• Knockouts: Yes
• Length: 12 in
