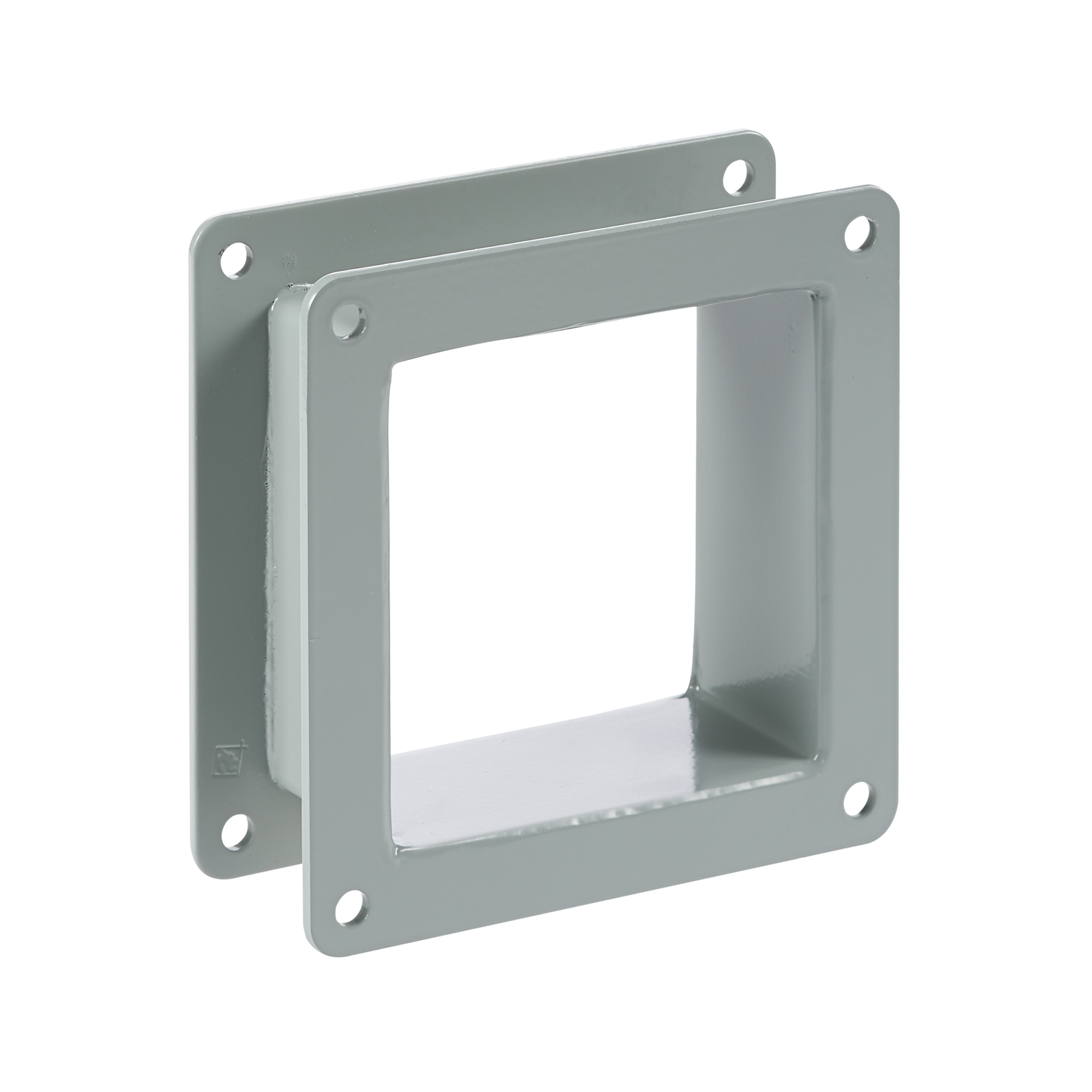

Hoffman F44WN3 Nipple Feed-Through Wireway 3.00in

Product Description

The HOFFMAN F44WN3 Nipple Feed-Through Wireway, measuring 4.00x4.00x3.00, is constructed from gray mild steel. It connects wireway sections and fittings, protecting wires and cables from dust in industrial environments. This feed-through nipple adjusts wireway length between sections or fittings and is powder coated with an ANSI 61 color code.

• Used between adjacent wireway sections or fittings for adjusting wireway length
• Connects to other wireway sections and fittings
• Protects wires and cables against dust in a broad range of industrial applications

Product Highlights

The Hoffman F44WN3 is ideal for power distribution, ensuring robust protection and versatile connectivity in industrial settings.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F44WN3
• Country of Origin: Mexico

Technical Specifications

• IGCC: 5571
• Type: Nipple
• Color: Gray
• Width: 4 in
• Finish: Painted
• Height: 4 in
• Wireway: Feed-Through NEMA Type 12 Wireway
• Material: Mild Steel
• IP Rating: IP54
• Color Code: ANSI 61
• Application: Power Distribution
• NEMA Rating: 12 Indoor
• Type Number: Type 12
• Family group: WIREWAY/ENCLOSURES
• Manufacturer: HOFFMAN ENCLOSURES
• Depth (Metric): 76 mm
• Depth (Imperial): 3 in
• Protection Rating: NEMA Type 12
• Thickness (Metric): 1.9 mm
• Thickness (Imperial): 14 ga
• Modification Services: Yes
• Article Number: 14870
• Thickness: 14 ga / 1.9 mm
• Brand: nVent HOFFMAN
• Dimensions: 4.60 in H X 6.30 in W X 6.30 in L
• Manufacturer Part Number: F44WN3
• Numeric ID: 2510412
• UPC Code: 78351014870
• Length: 3 in
• For Wireway Width x Height: 4 in x 4 in
• For Wireway Width: 4 in
• Length (Straight Wireway): 3 in
• For Wireway Height: 4 in
• Depth: 3 in / 76 mm
• Thickness (T) (millimetre): 1.9
• Depth (D) (inch): 3
• Height (H) (inch): 4
• Depth (D) (millimetre): 76
• Width (W) (millimetre): 102
• Height (H) (millimetre): 102
• Width (W) (inch): 4
• Item: Wireway Nipple
• With/Without Knockouts: Without Knockouts
• NEMA Enclosure Type: 12
• For Use With: F44 Series Wireways
• Standards: CSA EMP-1-1967, EEMAC 12, File No. 42184 Type 1, File No. E27524, IEC 60529, IP54, JIC EGP-1-1967, NEMA, UL 870
• Gauge: 14 ga
• With Knockouts: Without Knockouts
• eBay Product ID (ePID): 2167779490
• Box Shape: Square
• Model: F44WN3
• Item Height: 8 in
• ARRA Compliant: C
• Assemble to Order: No
• Buy American Compliant: C
• Catalog Number: F44WN3
• Component Type: Nipple
• Country of Origin: MX
• UNSPSC: 39131710
