Hoffman F44WE90 Elbow 90 Deg 4.00x4.00

Product Description

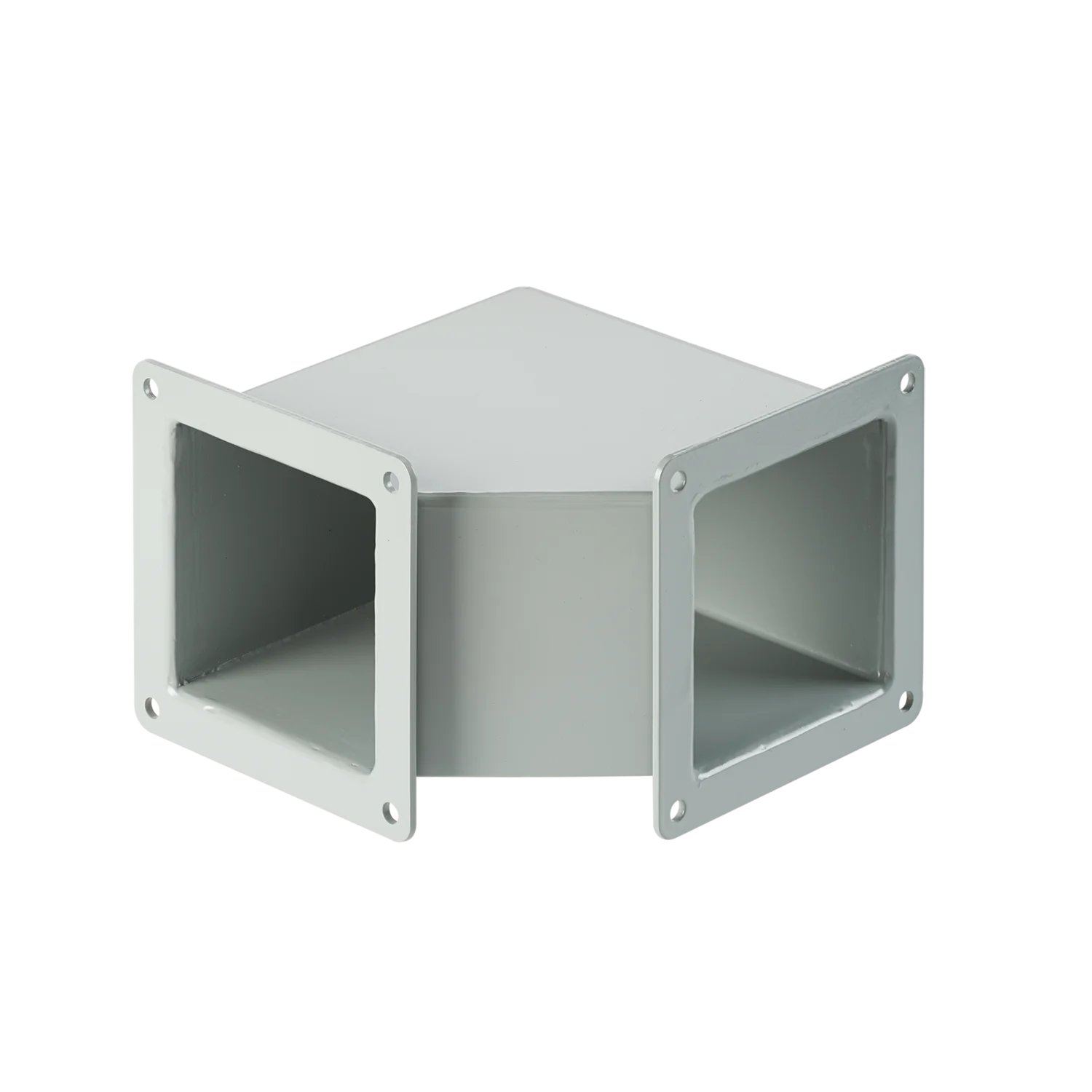

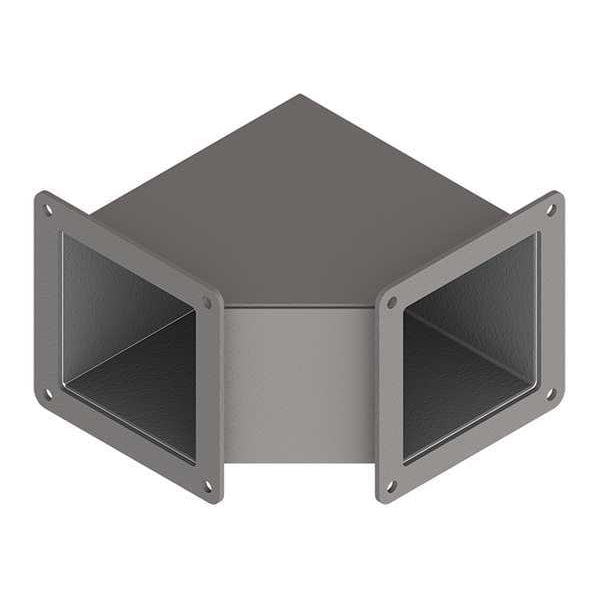

The Hoffman F44WE90 is a 90-degree elbow wireway. It connects to other wireway sections and fittings and protects wires and cables against dust in a broad range of industrial applications. It features a steel construction with a gray finish.

• Used for continuous runs with 90-degree turns
• Protects wires and cables against dust
• Connects to other wireway sections and fittings

Product Highlights

The Hoffman F44WE90 is ideal for power distribution and feed-through hinged-cover applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F44WE90
• Country of Origin: Mexico

Technical Specifications

• Brand: Hoffman
• Manufacturers Part Number: F44WE90
• Material: Steel
• A x B: 4.00 x 4.00 in
• Description: 90-Degree Elbow
• Enclosure Type: 12
• Dimension F: 7 in
• Dimension K: 5 in
• Type: Elbow
• Height: 4 in
• Width: 4 in
• Finish: Painted
• Color Code: ANSI 61
• Thickness: 14ga
• UPC: 783510142605
• Applications: Power Distribution, Feed-Through Hinged-Cover
• IP Rating: IP54
• Sub Brand: Hoffman
• Used With: Feed-Through Hinged-Cover Wireway
• Length: 4 in
• NEMA Enclosure Type: 12
• For Use With: F44 Series Wireways
• NEMA Rating: NEMA 12
• Cover Type: Non-Removable Cover, Feed-Thru
• Standards: CSA EMP-1-1967, File No. 42184 Type 1, File No. E27524, IEC 60529, IP54, JIC EGP-1-1967, NEMA/EEMAC 12, UL 870
• Function: Used to Change The Direction of A Wireway Run
• With Knockouts: No
• Includes: Gaskets, Screws
• Gauge: 14 ga
• Type Number: Type 12
• Protection Rating: NEMA Type 12
• Modification Services: Yes
• For Wireway Width: 4 in
• For Wireway Height: 4 in
• For Wireway Width x Height: 4 in x 4 in
• Length (Straight Wireway): 4 in
• Thickness (T) (gauge): 14
• Number of Phases: 1
• Model: F44WE90
• Item Height: 4 in
• Wireway: Feed-Through NEMA Type 12 Wireway
• Angle: 90 00b0
