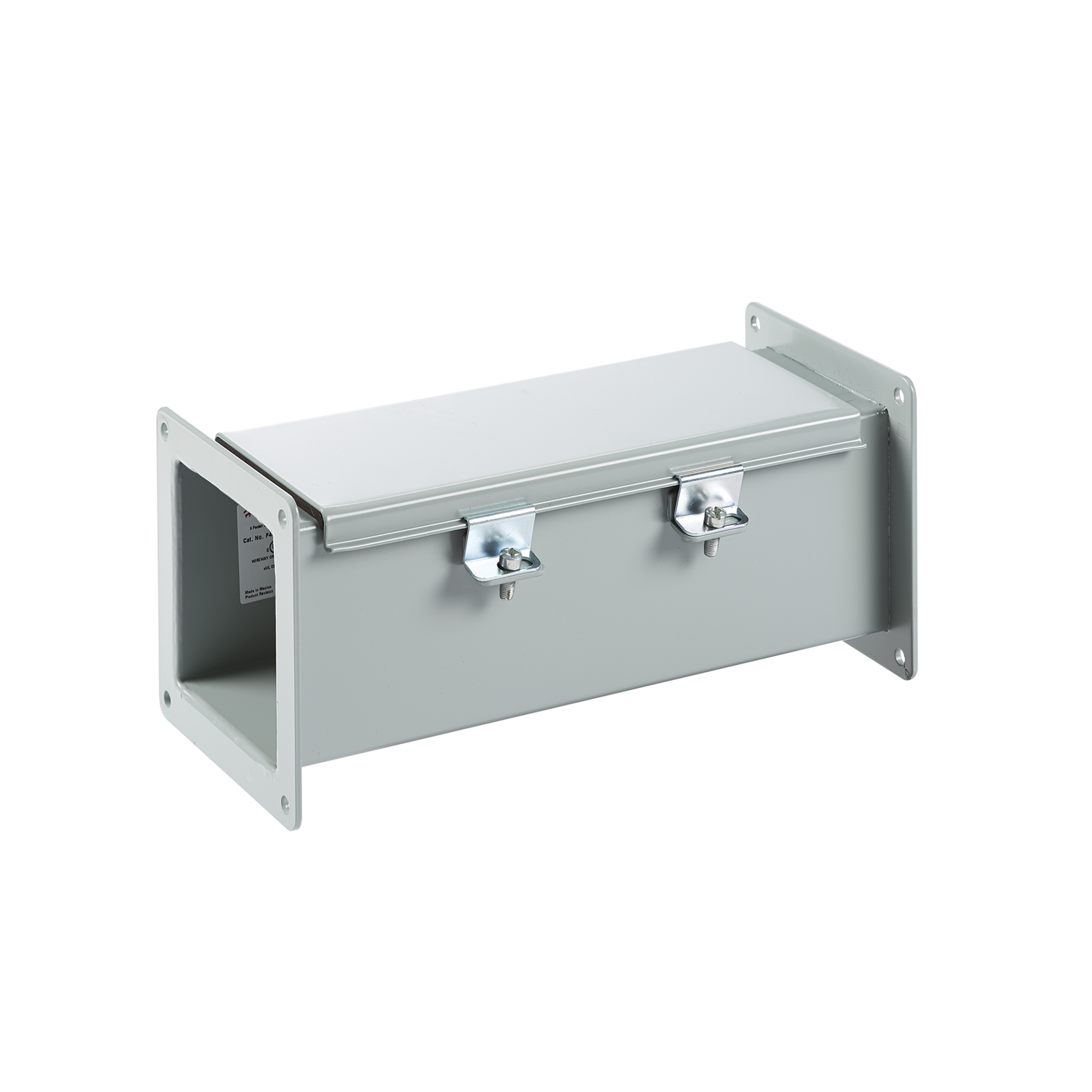

Hoffman F44W60 Straight Section Feed-Through Type 12, 4.00x4.00x60.00

Product Description

The HOFFMAN F44W60 feed-through hinged-cover, Type 12 straight sections are used for enclosing wire and cable in wireway runs. Its dust protection features makes it suitable for a broad range of industrial applications. The traditional closed-loop design has an opening on one side for easy access to wires and cables.

• Feed-Through Hinged-Cover, Type 12 Straight Sections are used for enclosing wire and cable in wireway runs
• Its dust protection features makes it suitable for a broad range of industrial applications
• The traditional closed-loop design has an opening on one side for easy access to wires and cables

Product Highlights

Straight section is used in broad range of industrial applications and available in multiple lengths.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: F44W60
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 14240
• Type: Straight Section
• Height: 4in
• Width: 4in
• Depth: 60in
• Material: Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 1.9 mm
• UPC: 783510142407
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Length: 60 in
• Series: F20 Series
• Color: Gray
• Color Family: Gray
• IP/NEMA Rating: IP54, NEMA 12
• Cover Type: Hinged
• Enclosure Type: IP54
