Hoffman F44W48 Straight Section Feed-Through Type 12, 4.00x4.00x48.00

HOFFMAN
Brand: HOFFMAN
SKU: F44W48
Availability: Out Of Stock
$356.77
$356.77
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

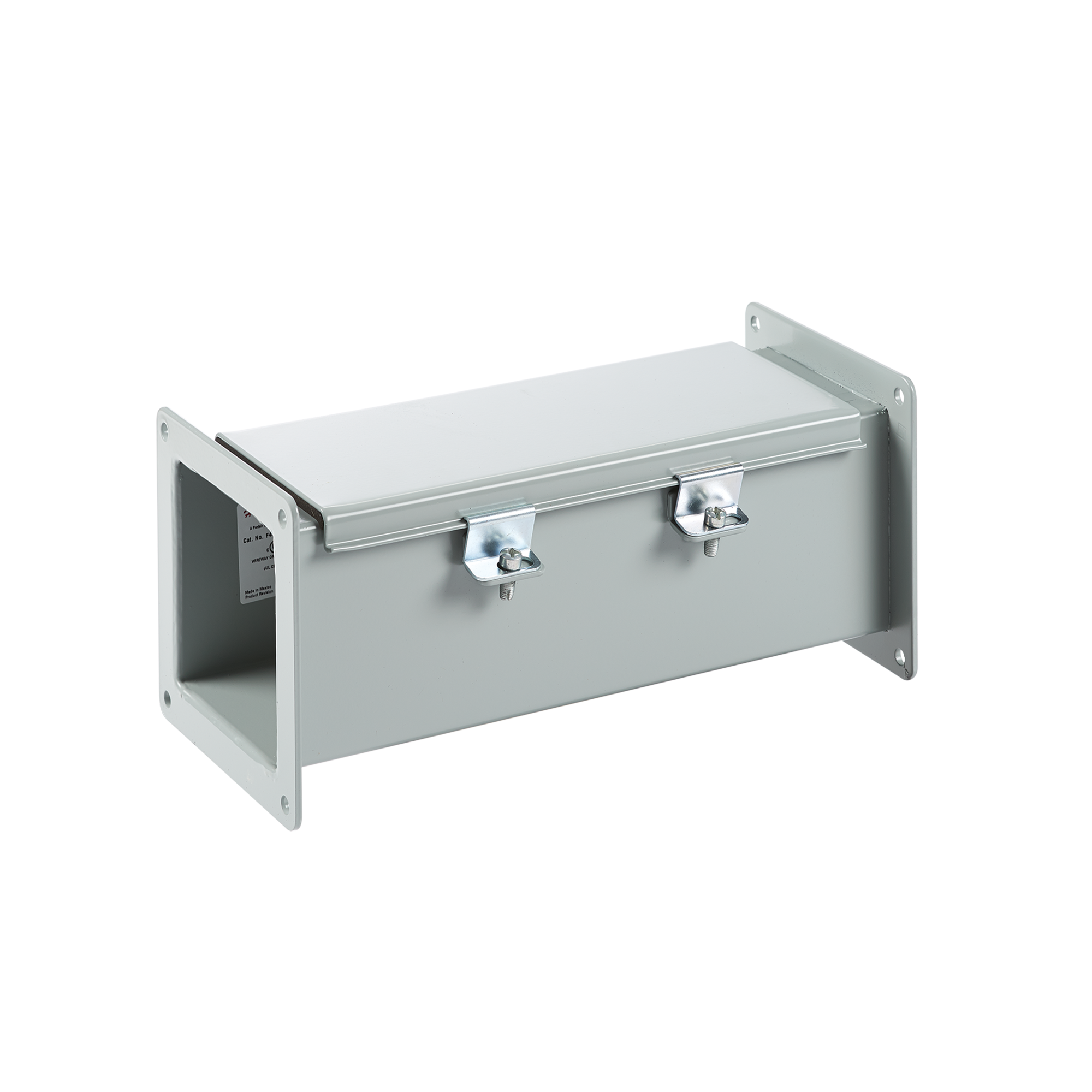

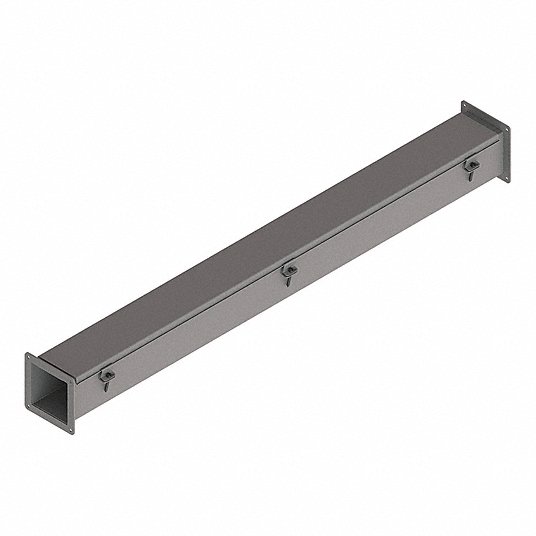

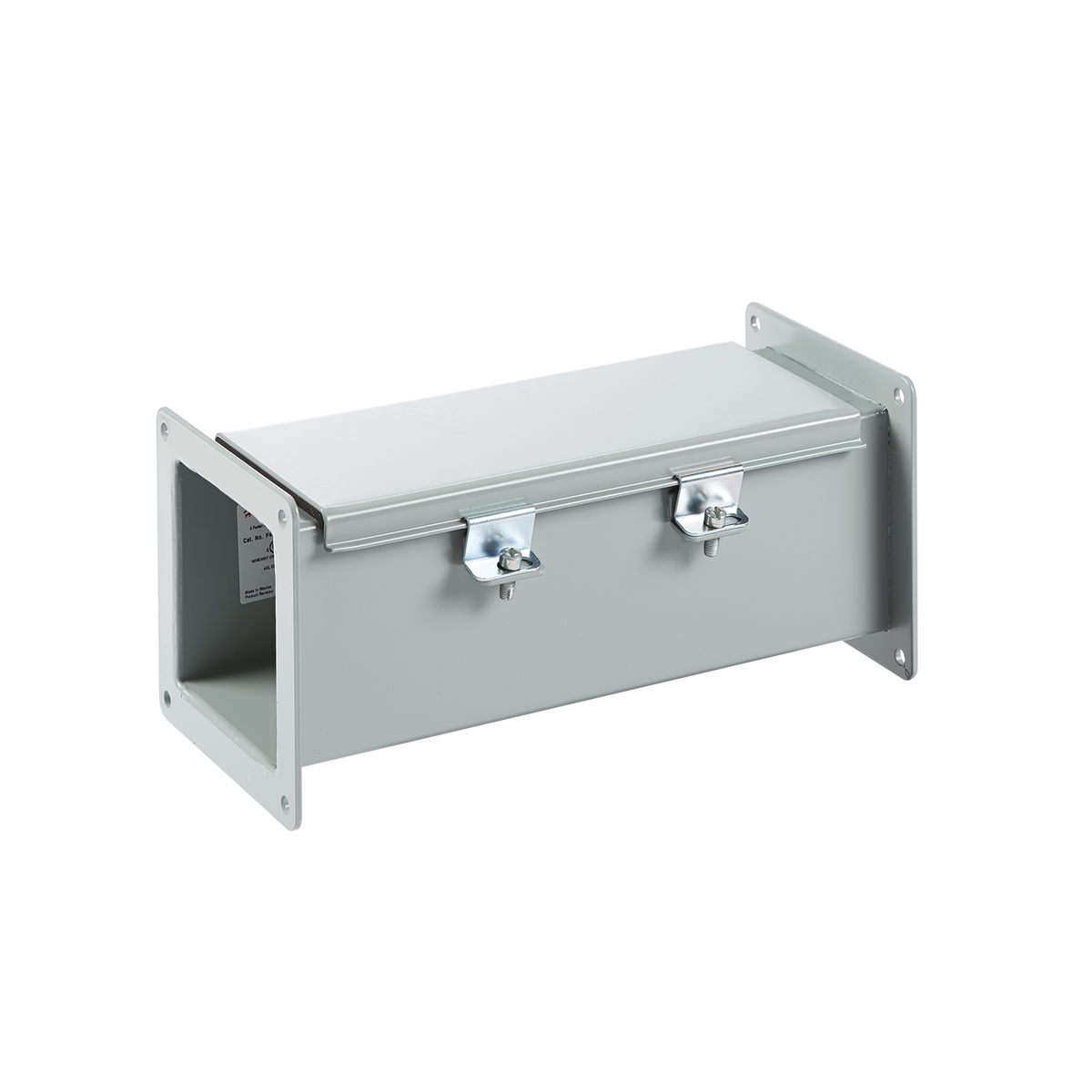

The HOFFMAN F44W48 Straight Section Feed-Through Type 12 is used for enclosing wire and cable in wireway runs. Its dust protection features makes it suitable for a broad range of industrial applications. The traditional closed-loop design has an opening on one side for easy access to wires and cables.

  • Feed-Through Hinged-Cover, Type 12 Straight Sections are used for enclosing wire and cable in wireway runs
  • Its dust protection features makes it suitable for a broad range of industrial applications
  • The traditional closed-loop design has an opening on one side for easy access to wires and cables

Product Highlights

Ideal for industrial applications, this straight section wireway provides a feed-through design for easy wire and cable management. Its dust-tight construction ensures reliability in demanding environments.

Product Information

Standard Information

  • Brand: HOFFMAN
  • Manufacturer Part Number: F44W48
  • Country of Origin: MX - Mexico
Technical Specifications
Article Number
14230
Type
Straight Section
Height
4in
Width
4in
Depth
48in
Material
Mild Steel
Finish
Powder Coated
Color
Gray
Color Code
ANSI 61
Thickness
14ga
UPC
783510142308
EAN
8713574330733
Standard Packaging Quantity
1
Packing Quantity
1
Bulletin Number
F20
ECCN
EAR99
Series
F20 Series
Length
4 ft.
Application
Power Distribution
Brand
nVent HOFFMAN
Catalog Number
F44W48
Component Type
Straight Section
Country of Origin
MX
Harmonization Tariff Schedule Code
7326908688
Height [Metric]
15.2400 cm
Interchangeable
No
IP Rating
IP54
Item Group
F20
Length [Metric]
130.8100 cm
Manufacturer
HOFFMAN ENCLOSURES
Modification Services
Yes
NEMA Rating
12 Indoor
Package Quantity
1
Standards
UL 870, File No. E27524 Listed, CSA File No. 42184, RoHS Compliant
Thickness [Metric]
1.9 mm
UNSPSC
39131710
UPC 11
78351014230
UPC 12
78351014230
Width [Metric]
15.2400 cm
Wireway
Feed-Through NEMA Type 12 Wireway
Knockouts
Without Knockouts
Gauge
14 ga
Size
4 x 4 x 48 in
Wireway Width
4 in
Wireway Height
4 in
With Knockouts
No
Cover Type
Hinged Cover with Quick-Release Latches
Cover Locking Style
Screw Clamp
