Product Description

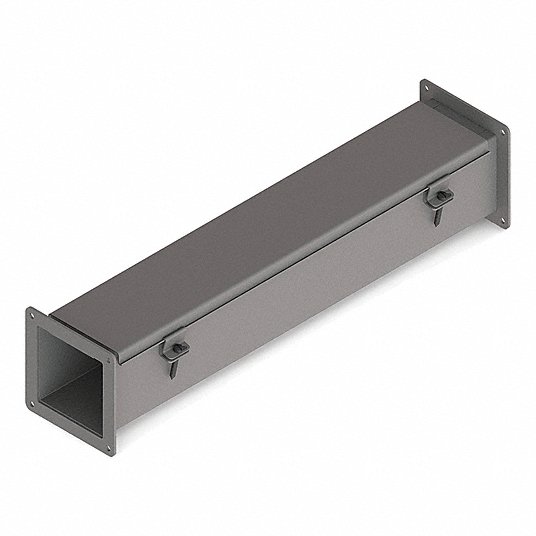

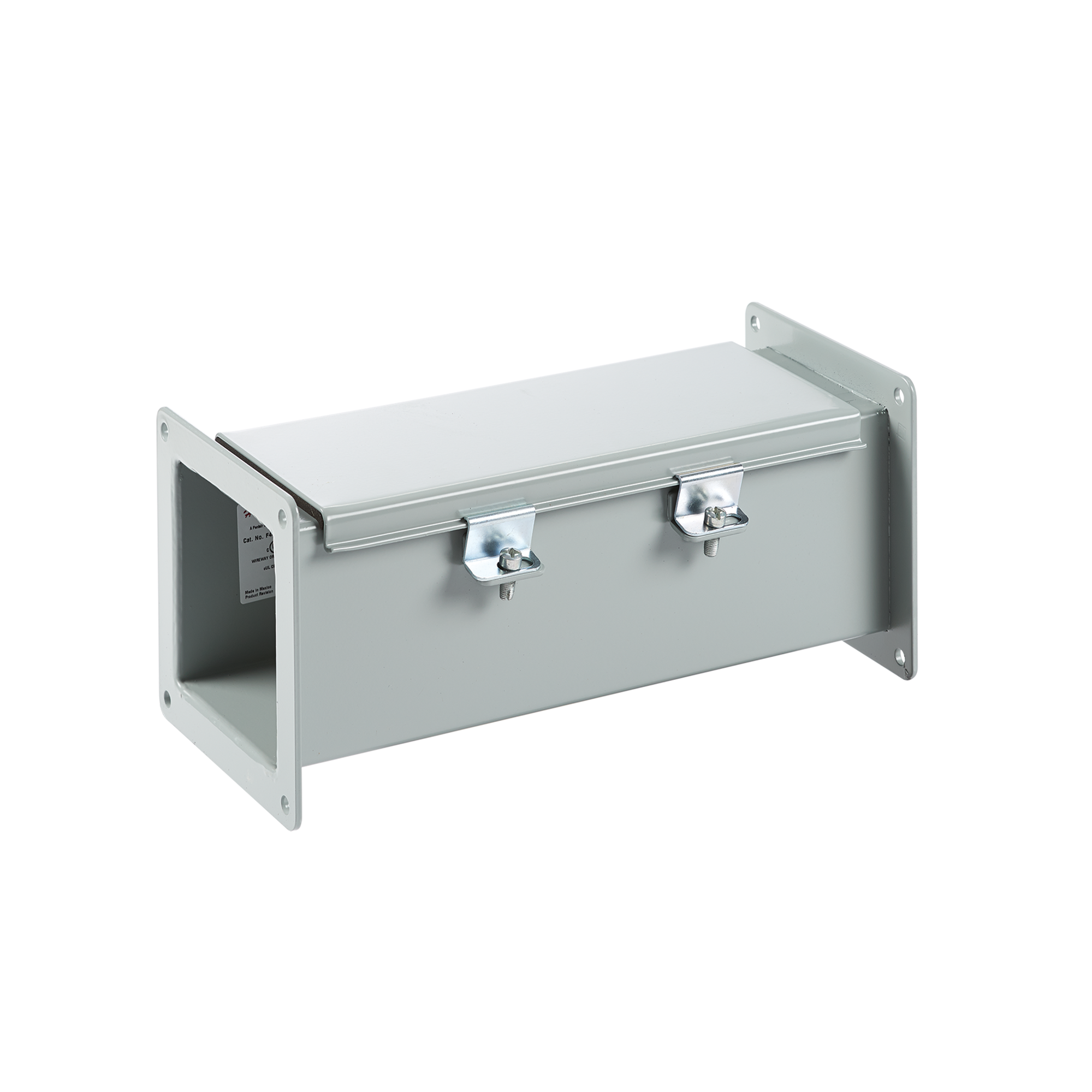

The HOFFMAN F44W24 Jic Flng Wrwy is a straight section feed-through type 12 wireway. Designed for enclosing wire and cable in wireway runs, its dust protection features make it suitable for a broad range of industrial applications. Sections are available in lengths from 12 inch to 120 inch.
- Used for enclosing wire and cable in wireway runs
- Dust protection features makes it suitable for a broad range of industrial applications
- Traditional closed-loop design has an opening on one side for easy access to wires and cables
Product Highlights
The HOFFMAN F44W24 wireway is ideal for power distribution and provides easy access to wires and cables.
Product Information
Standard Information
-
Brand: HOFFMAN
-
Manufacturer Part Number: F44W24
-
Country of Origin: MX - Mexico
Technical Specifications
-
IGCC: 5571
-
Type: Industrial Feed-Through Wireway
-
Color: Gray
-
Width: 4 in
-
Finish: Polyester Powder Painted
-
Height: 4 in
-
Vendor: 351000
-
Wireway: Feed-Through NEMA Type 12 Wireway
-
Material: Mild Steel
-
IP Rating: IP54
-
Color Code: ANSI 61
-
Application: Power Distribution
-
NEMA Rating: NEMA 12
-
Type Number: Type 12
-
Family group: WIREWAY/ENCLOSURES
-
Manufacturer: HOFFMAN ENCLOSURES
-
Depth (Metric): 610 mm
-
Depth (Imperial): 24 in
-
WES Product code: 2650503155
-
Protection Rating: NEMA Type 12
-
Thickness (Metric): 1.9 mm
-
Thickness (Imperial): 14 ga
-
Modification Services: Yes
-
Article Number: 14210
-
UPC: 783510142100
-
EAN: 8713574253490
-
Standard Packaging Quantity: 1
-
Packing Quantity: 1
-
Bulletin Number: F20
-
Enclosure Type: 12
-
Description: Straight Section
-
Manufacturers Part Number: F44W24
-
Brand: nVent HOFFMAN
-

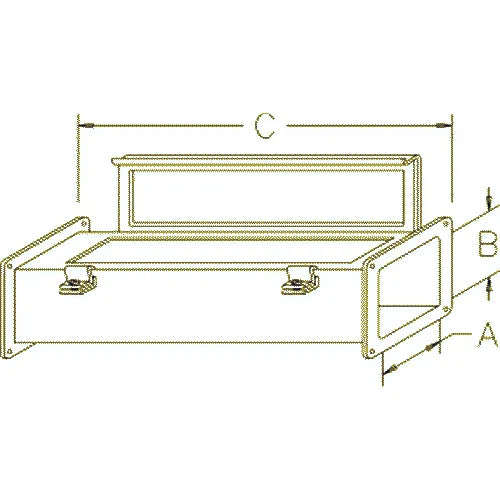

A x B x C: 4.00 x 4.00 x 24.00 in
-
Dimension D: 5.38 in
-
Dimension E: 5.38 in
-
Color Coding: ANSI 61
-
Sub Brand: Hoffman
-
12-Digit UPC: 783510142100
-
GTiN: 00783510142100
-
Product UPC: 78351014210
-
ECCN: EAR99
-
UNSPSC: 39131710
-
Cover Type: Butt Hinged
-
ETIM: EC000322
-
Length: 24 in
-
Series: F20
-
Item: Wireway
-
Wireway Width: 4 in
-
Wireway Height: 4 in
-
Gauge: 14 ga
-
With Knockouts: No
-
Cover Locking Style: Screw Clamp
-
Standards: UL 870, File No. E27524 Listed, CSA File No. 42184, RoHS Compliant
-
ARRA Compliant: C
-
Assemble to Order: No
-
Buy American Compliant: C
-
Catalog Number: F44W24
-
Component Type: Straight Section
-
Country of Origin: MX
-
EU RoHS Indicator: NEW
-
Package Quantity: 1
-
Harmonization Tariff Schedule Code: 7326908688
-
Height [Metric]: 14.9860 cm
-
Interchangeable: No
-
Item Group: F20
-
Length [Metric]: 64.7700 cm
-
Thickness [Metric]: 1.9 mm
-
Width [Metric]: 16.0020 cm
